Boyo VTX-3600 3.6 inch Digital Wireless Monitor and Wireless transmitter module

Boyo VTX-3600 3.6 inch Digital Wireless Monitor and Wireless transmitter module

Boyo VTX3600 3.6 inch Digital Wireless Monitor and Wireless transmitter module

More Views

Ships Free!

Overall Rating 4 (Based on 1 reviews)

Boyo VTX3600 Product Highlights

  • Digital Wireless Technology - Not subject to common interference and static, much better than Analog wireless systems
  • 3.6 inch Digital LCD
  • Universal transmitter for use with any camera
  • Suction cup mounting
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

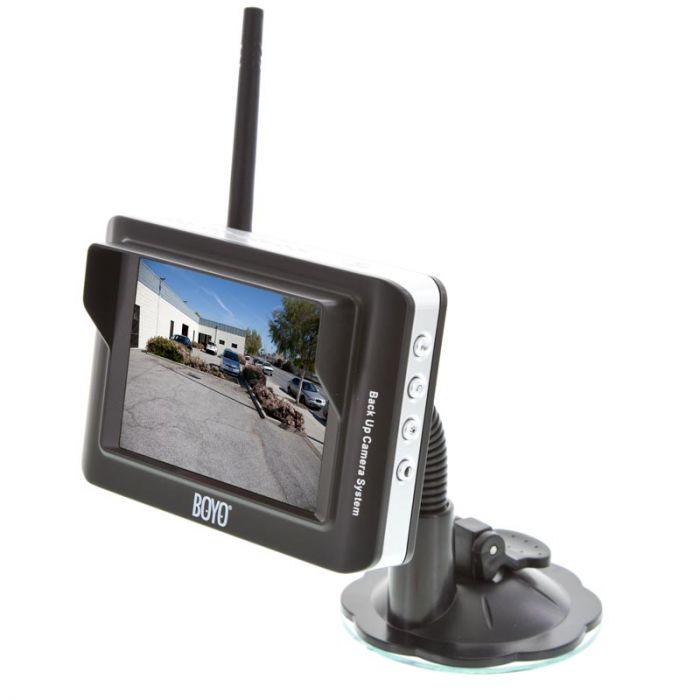

Create one of the best back up camera systems on the market. The Boyo VTX-3600 is a 3.6 inch monitor with a universal camera transmitter that allows you to convert any camera to a wireless back up camera system. Simply connect a camera to the video input and have a digital interference free back up camera system.

Unit includes: Digital wireless LCD monitor, Transmitter box, Antenna for monitor, Suction cup mount, Cigarette lighter cord, Power supply cable, Video output cable, Grommet, Camera screens, Inline power connectors and Instruction manual

Boyo VTX3600 3.6 inch Digital Wireless Monitor and Wireless transmitter module
    Monitor features:
  • Complete digital wireless system for no interference, no comparison with analog wireless systems
  • 3.5 inch digital LCD monitor with wireless transmitter
  • System can be used as a home surveillance system with optional power supply
  • Video output for connection to DVR or additional monitor
  • Suction cup for screen wind shield mounting
  • Includes hard wire and cigarette lighter power input for monitor
  • Auto turn on when transmitter is sending signal
  • 4 Different Viewing Modes: Normal / Mirror / Mirror Upside Down / Normal Upside Down image rotation feature
  • Resolution: 320 x 234
  • Brightness: 300 NIT
  • Power consumption: 12Vdc @ 250ma
  • The best wireless system we carry
    Monitor Inputs and outputs
  • 1 - Antenna input
  • 1 - RCA video output
  • 1 - DC power input
    Transmitter features:
  • Wireless transmitter can be used with any camera, create any system with a camera of your choice
  • Operates up to 300 feet away from display
  • RCA video input for compatibility with any camera
  • 16 QAM, QPSK, BPSK modulation for interference free transmission
  • 2.4 Ghz for unparalleled quality
  • Frame Rate: 30 fps
    Transmitter Inputs and outputs
  • 1 - RCA video input
  • 1 - DC power input
  • 1 - DC power output

Technical Specifications

Manufacturer Boyo
Part Number VTX3600
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 320 x 240
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Auto video sense trigger
Modulation NTSC and PAL
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included Yes
Audio Video inputs No
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type No
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Selectable
Camera Sensor type No
Camera diameter No
Viewing Angle No
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection No
Battery Powered Hard wired
Case included No
Connector Type No
Wireless Transmission Digital wireless
Color Black
Operation Voltage 12 - 24 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 689076350815

Customer Reviews

Frustrated need a stronger signal.
Review by
Install (5 star for easy)
This system needs a stronger transmitter. (Posted on 10/15/2014)

Write Your Own Review

You're reviewing: Boyo VTX-3600 3.6 inch Digital Wireless Monitor and Wireless transmitter module

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by ronaldo, Thursday, April 17, 2014


What max range of the wireless transmitter? ihave a53 foot trailer that i would like to use it on


  • Posted by Salvador Diaz on Thursday, April 17, 2014

    We have tested the unit at 100ft and still captured a great image. Feel free to give us a call at 800-363-0096 for futher details.


Posted by Robin T Sabo, Monday, August 26, 2013


I have a 2011 Chrysler 200 hardtop convertible and wish to know if this camera system will function on the car. The reverse light has a white with green stripe and a black wire. I have a nav, Bluetooth and dvd screen OEM. Thank you.


  • Posted by Salvador Diaz on Monday, August 26, 2013

    There should be no problem having this unit on your vehicle. This is a universal unit and is a basic one size fits all device. The unit will work great.
