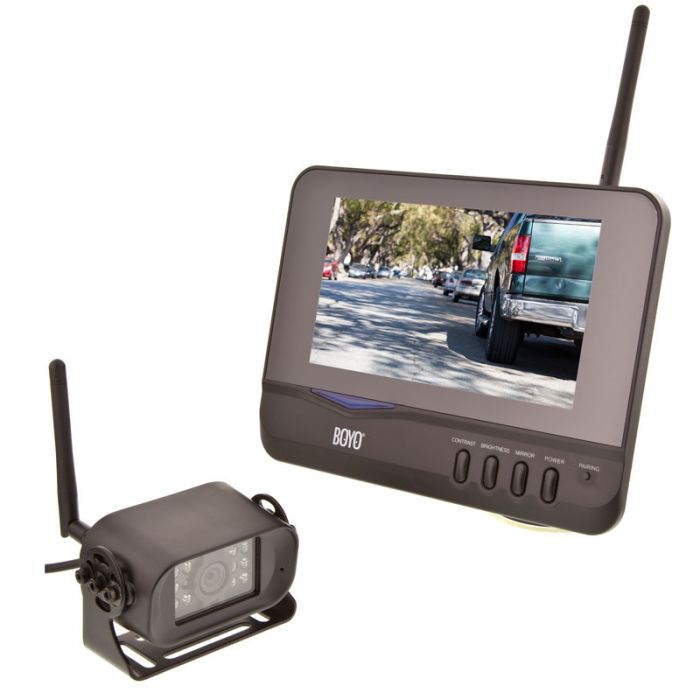

Boyo VTC700R 2.4 GHz Digital Wireless Back up Camera System - 7 inch monitor

Boyo VTC700R 2.4 GHz Digital Wireless Back up Camera System - 7 inch monitor

Boyo VTC700R 2.4 GHz Digital Wireless Back up Camera System - Camera and monitor

More Views

Ships Free!

Overall Rating 5 (Based on 2 reviews)

Boyo VTC700R Product Highlights

  • Digital Wireless Technology - Not subject to common interference and static, much better than Analog wireless systems
  • 7 inch LCD display with optional sun shade
  • 1/4 inch Sharp CMOS camera for superior night time picture quality
  • 420 TV lines of resolution
  • 200 foot range

Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: 7 inch LCD monitor/w wireless receiver, Monitor hardwire power cable, Monitor cigarette lighter power cable, Back up camera/w Wireless Transmitter, Audio video input cable, Antennas, Suction cup mount, Fan mount, Mounting and Electrical hardware, and Instruction manual

Boyo VTC700R 2.4 GHz Digital Wireless Back up Camera System - 7 inch monitor features:

  • 7 inch LCD monitor/w wireless receiver
  • 2.4 Ghz digital transmission
  • Night vision CCD camera/w wireless transmitter
  • Built in microphone on camera for audio
  • Ideal for trucks and trailers where wired connections are not possible
  • 200 foot line of sight range
  • Monitor can be temporarily mounted using included suction cup
  • Monitor can be permanently mounted using included fan mount
  • Monitor can be temporarily powered using included cigarette lighter cord
  • Monitor can be permanently powered using included hardwire cord
  • 1 Audio/video output

    Wireless Digital Monitor
  • 7 inch TFT LCD High Resolution
  • PAL/NTSC auto switching
  • Resolution: 800x480xRGB
  • Power Supply: DC 10-32Vdc
  • Power consumption: 600mA
  • 4-Way Image rotation for regular view, Upside down view, Mirror image, and Upside down mirror image
  • OSD Menu (On Screen Display)
  • On Screen Display for Contrast, Color and Brightness
  • Digital signal with no interference guaranteed
    • Monitor Dimensions:
    • With Antenna extended vertically: 9-3/4 (H) x 9-1/2" (W) x 1-3/8" (D)
    • Without Antenna: 6-1/4 (W) x 8-3/8" (H) x 1-3/8 (D)

    Wireless Digital Camera
  • High Resolution Back Up Camera
  • 1/4" CMOS Image Sensor
  • Resolution: 640 x 480
  • 85 degrees Wide Angle Camera - Blind Spot reduced
  • IR Infrared 11 LEDs for Night Vision 16 ft distance
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Power Supply: DC 10V - 24V
  • Waterproof Rating: IP66
  • Shell Material Aluminium Alloy
    • Camera Dimensions
    • Without Antenna: 4-1/4" (W) x 2-1/2 (H) x 3-1/4 (D)
    • With Antenna: 4-1/4" (W) x 5-1/2" (H) x 3-1/4" (D)

Note: this system is not designed to be used while in motion at highway speeds, due to signal limitations this system will not function properly at speeds in excess of 20 MPH.

Technical Specifications

Manufacturer Boyo
Part Number VTC700R
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 400 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Modulation NTSC and PAL
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs No
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/3 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Battery Powered Hard wired
Case included Yes
Connector Type 4 Pin Connector
Wireless Transmission Digital wireless
Color Black
Operation Voltage 12 - 24 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 794504210859

Customer Reviews

Unit works great
Review by
Install (5 star for easy)
I purchased the unit Aug 24/14 ,installed it in half a day,in my RV ,it works great and am quite happy with it.
It replaced my old Voyager unit ,and the receiver screen fit into my in dash mount hole perfectly.
(Posted on 9/22/2014)
Very happy and works great with my toy hauler
Review by
Install (5 star for easy)
I bought this camera system to install on my toy hauler and I am very happy with it. I installed the camera on the top of the trailer and powered it with the lights, I know this isn't the best way to do it but it worked for me. The reception is clear and I have not had any trouble with interference. I am really happy that I purchased this and it makes towing the trailer so much easier. (Posted on 3/5/2014)

Write Your Own Review

You're reviewing: Boyo VTC700R 2.4 GHz Digital Wireless Back up Camera System - 7 inch monitor

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Jim Allred, Thursday, March 6, 2014


What is the warranty on this unit? Also, I would like two cameras, is that possible?


  • Posted by Store Owner on Thursday, March 6, 2014

    This unit has a one year warranty.  It is only compatible with one camera so a second is not a possibility.
