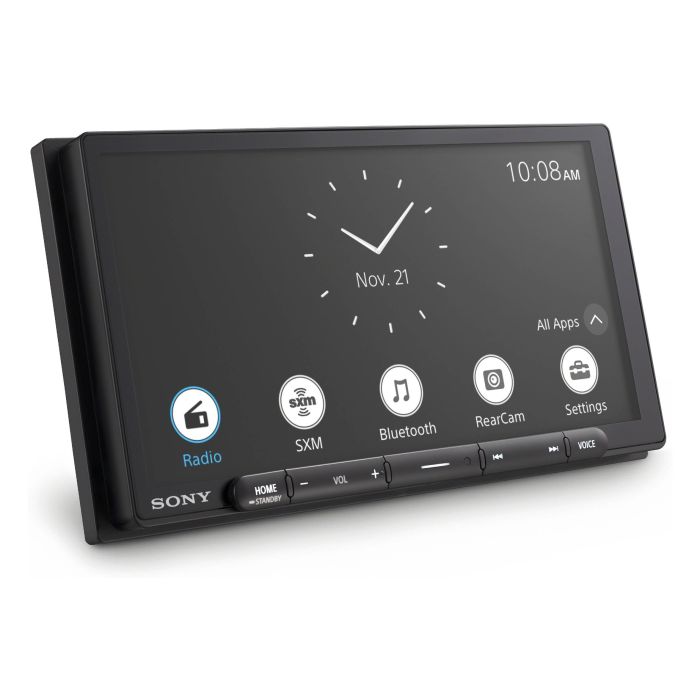

Sony XAV-AX6000 Double DIN Digital Receiver with 6.95" Capacitive Touchscreen Display, Wireless Apple Carplay and Android Auto
Sony XAV-AX6000 Double DIN Digital Receiver with 6.95" Capacitive Touchscreen Display, Wireless Apple Carplay and Android Auto
Key Features
Double DIN stereo with 6.95" Capacitive touchscreen display Wireless Apple CarPlay and Wireless Android Auto Sirius XM Ready MP3 / WMA / WAV / AAC / FLAC / ALAC / DSF / DSDIFF Audio Playback via USB Siri and Google Eyes Free Wireless Bluetooth capable Single Micro-HDMI input Single USBC input 14-Band Customizable Graphic Equalizer
5-channel Time Alignment 6-channel 5-volt RCA preamp outputs
Unit Includes: Double DIN receiver, Bluetooth Microphone, Wiring harness, USB extension, Mounting hardware, and Instruction manual
Sony XAV-AX6000 Double DIN Digital Receiver with 6.95" Capacitive Touchscreen Display, Wireless Apple Carplay and Android Auto
Features
Full-color 6.95" Capacitive Active Matrix Double DIN receiver with Resistive touchscreen display (800 × 480 resolution)
Wireless Apple CarPlay and Android Auto make it easier than ever to use your smartphone's helpful features on the road
Wireless Android Auto: Use Google Maps to get directions and traffic updates whenever you need them
14-Band Customizable Graphic Equalizer
5-channel Time Alignment
Sirius XM Ready
No Disc Slot: Does not play CD's or DVD's***
Double DIN display with Single DIN Chassis
Rear camera ready for easy reversing with customizable guidelines that help you back up safely
iDatalink Maestro compatible with iDatalink Maestro ADS-MRR OEM integration
Audio Features
Hi-Res Wireless Audio with LDAC
Get powerful sound with the 4 x 20W Amplifier
14-Band Customizable Graphic Equalizer
5-channel Time Alignment
Individual Front, Rear and Subwoofer crossovers with customizable frequency and slope
50 Hz - 250Hz High-Pass filter with variable slopes and crossover frequencies
50 Hz - 250Hz Low-Pass filter with Variable subwoofer level control
(3) - 5 Volt RCA Preouts
Media Playback
MP3 / WMA / WAV / AAC / FLAC / ALAC / DSF / DSDIFF Audio Playback via USB
MP3 ID3 Tag Display (Title/Artist/Album)
Upload JPEG and MP4 via USB Thumb Drive
Change the wallpaper with a preset or custom images
Tuner features:
AM/FM RDS tuner with 18FM/12AM presets
RDS (Radio data service) Tuner
SiriusXM radio ready with SXV300 Sirius XM tuner
Inputs and Outputs
2 - Pairs of 5V preamp outputs for Front and Rear
1 - 5V preamp output for Subwoofer
1 - 3 amp USBC Input (For thumb-drives or smart phone connection)
1 - Bluetooth microphone
1 - Backup camera input
1 - Micro HDMI input
1 - Sirius radio tuner input
1 - Steering wheel control input requires ASWC steering wheel interface
Navigation
Apple Maps Via Apple Carplay or Android Auto
Google Maps and Waze Via Android Auto
Bluetooth
Built-in Bluetooth technology for hands-free talking and audio streaming
Supports SMS message notifications and A2DP audio streaming
6 speed dial memory banks; Recent call lists up to 20 numbers
Hands-Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio/Video Remote Control Profile (AVRCP)
Works with most Bluetooth enabled cell phones
Includes a (external wired microphone for clear, convenient, distortion-free talking
Maximum communication rage: 32.8 feet (approx, line of sight)
Dimensions: Single DIN chassis, Double DIN Display
Chassis Dimensions: 7"W x 7-1/8"D x 3-15/16"H
Display Dimensions (W X H X D): 7.01 x 3.94 x 6.36 in
More Information
Manufacturer
Sony
Part Number
XAV-AX6000
Chassis Size
Double DIN
Faceplate features
None
RCA Pre-amp Audio outputs
3 Pairs (Front, Rear, Sub)
Preamp voltage
5 volts
LCD Screen Size
7 inch - 8 inch
Illumination color
White
LCD Screen Brightness
450 Nit
Swivel Screen
No
Touchscreen
Yes - Capacitive touchscreen
Widescreen Display
16:9 Widescreen Display
Native Screen Resolution
800 x 600
Camera Inputs
1-Camera Input
Front camera input
No
Back up camera input
Yes
Parking grid lines
Adjustable
Audio Video inputs
None
Front mounted auxiliary input
None
Audio Video Outputs
None
Built-in DVD Player
No
Disc Playback
No
Anti-Shock
No
Dual Zone Control
No
SD Card input
No
USB input
Rear USB
HDMI input
Yes
HDMI output
No
Smartphone Compatible
Yes
Smartphone Technology
Apple CarPlay and Android Auto
Built in Phone Mirroring
No
Amazon Alexa
No
Time Alignment
Yes
Modulation
NTSC and PAL
Built in Crossover
High-pass, Low-pass
Audio Formats
AAC, FLAC, Mpeg-3, WAV, WMA
Built in Bluetooth
Built in Bluetooth
NFC (Near Field Communication)
No
HD Radio
No
Radio Data Service - RDS
Yes
Satellite Radio
Sirius XM Ready
Navigation
via Smartphone
Integration Module
iDataLink Maestro RR
Steering Wheel Control
Yes, requires external module
Wireless Remote Control
No
Operation Voltage
12-15 Volt DC
CEA2006 Compliant
No
Warranty
3 Years
UPC Code
027242923409
Return period
30 days
Exchange period
30 days
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
