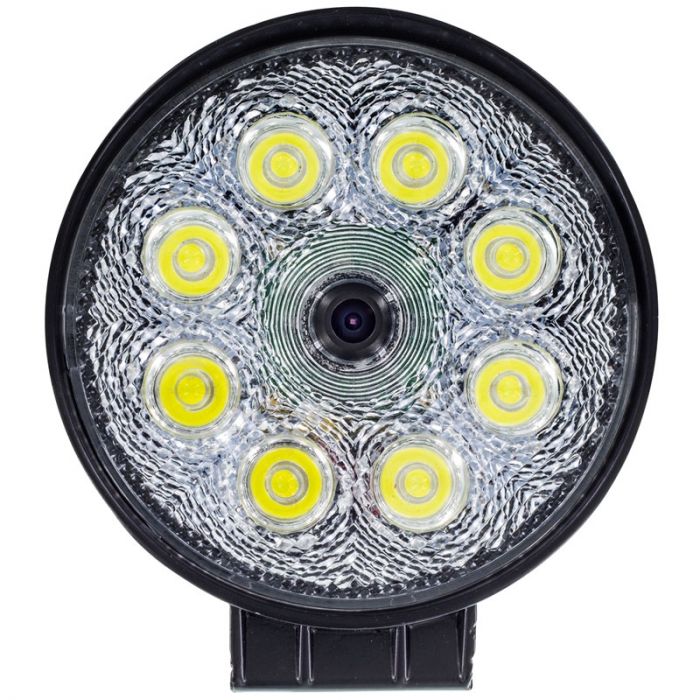

Safesight TOP-SS-RC3012M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light
$96.99
In stock
SKU
TOP-SS-RC3012MM
Expert Knowledge
Talk to a specialist
- 1/3" CMOS Image Sensor
- 170° Wide Angle Camera
- Round LED light housing
- Reverse image for rear view
- Magnet or permanent mount
- 8 LEDs for illumination up to 150 foot distance
Unit includes: Back up camera, Mounting hardware, and Instruction manual
Safesight TOP-SS-RC3012M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light
Safesight TOP-SS-RC3012M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light
- Features:
- High Resolution Back Up Camera with (8) LED integrated Light
- Magnet or permanent mount
- Reverse image for rear view or front view
- 1/3" CMOS Image Sensor
- System: NTSC/PAL
- 520 TV lines
- Effective Pixels: 976 x 592
- 170° Wide Angle Camera
- Minimum Illumination: 1 Lux and 0 Lux (LED On)
- 8 LEDs for illumination up to 150 foot distance
- Operating Temperature: -20°~ +70° C (RH 95% Max)
- Lens: F = 1.7mm
- Power Supply: DC 12V
- Waterproof Rating: Ip68
- Shell Material Aluminum Alloy
- Round style casing
- 4 Pin Connector - RCA Adapters are sold separately
- Illumination LED power consumption: 150 mA
- Dimensions:
- Overall dimensions: 4-1/4" (W) x 1-5/8" (D) x 5-1/2" (H)
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-RC3012MM |
| Camera Sensor type | CMOS |
| Back up camera type | Surface Mount Camera |
| Camera diameter | 1/3 inch |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Selectable |
| Parking grid lines | No |
| Infrared Illumination | Yes |
| Built in Microphone | Yes |
| Connector Type | 4 Pin Connector |
| Modulation | NTSC and PAL |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Overall Height | 5.50 inches |
| Overall Length | 1.63 inches |
| Overall Width | 4.25 inches |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
