Metra XSVI-6515-NAV 2012 - 2015 Fiat 500 Radio interface with Navigation outputs
$62.99
In stock
SKU
XSVI-6515-NAV
Expert Knowledge
Talk to a specialist
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2012 - 2015 Fiat 500 vehicles
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed
- Interface is designed to be used with both amplified and non-amplified audio systems

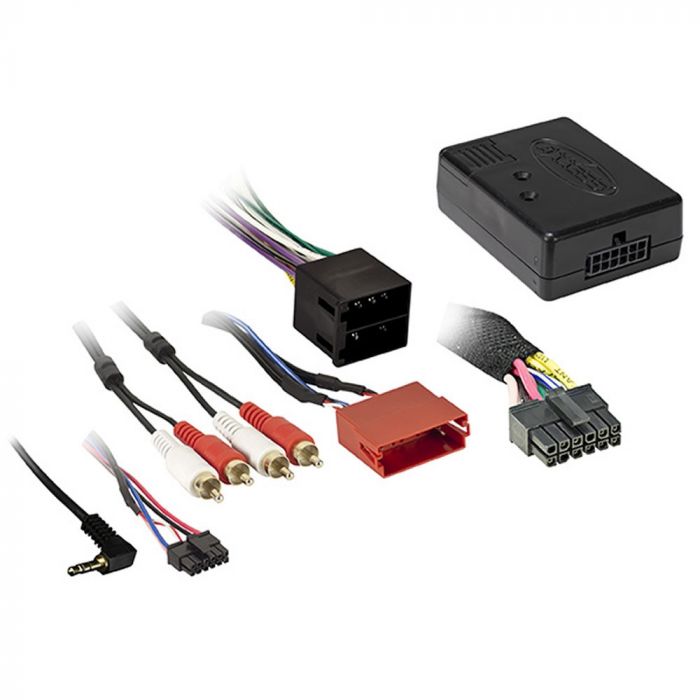

Unit includes: A) Interface, B) 16-pin to 12-pin Power, C) RCA input harness and speaker harness, and Instruction manual
Metra XSVI-6515-NAV 2012 - 2015 Fiat Radio interface with Navigation outputs
Metra XSVI-6515-NAV 2012 - 2015 Fiat Radio interface with Navigation outputs
-
Interface Features:
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2012 - 2015 select Fiat vehicles
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used both amplified and non-amplified audio systems
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- Retains original Bluetooth, USB and3.5mm audio input jack
- USB firmware up-datable
- Retains balance and fader
- Metra XSVI-6515-NAV 2012 - 2015 Fiat 500 Radio interface Instruction manual
-
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange - Radio illumination (+)
- Blue with White stripe - Amplifier turn on
- Light Green - Parking brake
- Blue with Pink Stripe - VSS (Vehicle speed sensor)
- Green with Violet Stripe - Reverse trigger (+)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Kit Components:
- A) XSVI-6515-NAV interface
- B) Power and speaker harness
- C) Instruction manual
-
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
-
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-EU55 Antenna adapter
- ASWC Steering wheel interface harness
-
Vehicle Applications:
-
Fiat:
- 2012 - 2015 500
- 2012 - 2015 500L
| Manufacturer | Metra |
|---|---|
| Part Number | XSVI-6515-NAV |
| Integration Module | Radio Replacement |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, requires external module |
| RCA Pre-amp Audio inputs | 3 Pairs (Front, Rear, Subwoofer) |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Year | 2012, 2013, 2014, 2015 |
| Vehicle Brand | Fiat |
| Vehicle Model | 500 |
| UPC Code | 086429257300 |
| Return period | 30 days |
| Exchange period | 30 days |
