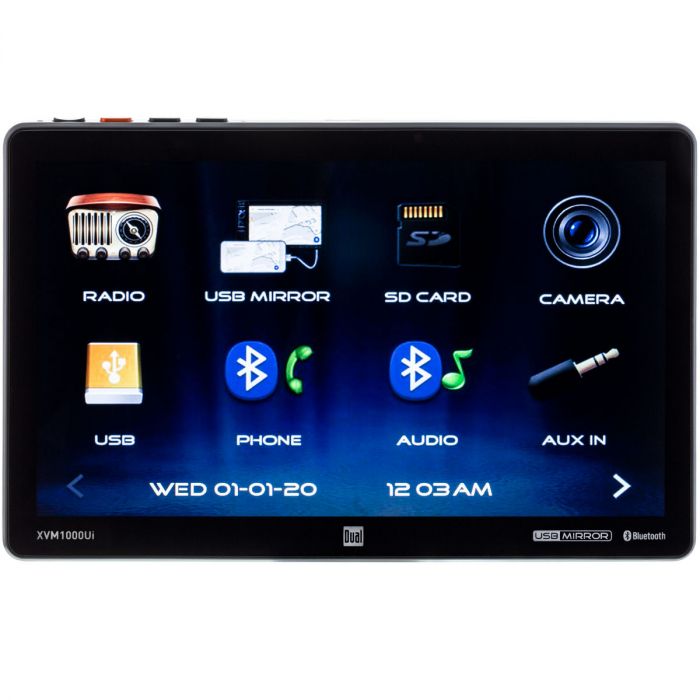

Dual XVM1000Ui 10.1" Single DIN Digital Media Receiver with USB Smartphone Mirroring, Bluetooth and USB
Expert Knowledge
Talk to a specialist
- 10.1" Over-sized Single DIN Digital Media Receiver with Capactive Touchscreen
- USB Smartphone Screen Mirroring for iPhone & Android
- Built-in Bluetooth
- 7 Band EQ
- USB and Micro SD card inputs
- Backup camera input
- 10.1" Over-sized Single DIN Digital Media Receiver with Capactive Touchscreen
- USB Smartphone Screen Mirroring for iPhone & Android
- Programmable on-screen shortcut to smartphone navigation app
- Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
- AM/FM tuner with 30 station presets (12AM/18FM)
- Dual iPlus Smart Remote App via Bluetooth
- LCD screen Resolution: 1024 x 600 Pixels
- Front panel USB input with 2.1A charging
- Front panel micro SD card input
- Backup Camera Input
- 3 Selectable backgrounds
- Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 17 watts RMS
- 7 Band EQ
- 7 EQ presets (Pop, Rock, Jazz, Classical, Beat, Flat & User)
- Steering Wheel Control (compatible with most popular SWC interface)
- Wireless Remote Control included
- MP3 and FLAC audio file support
- MP3 ID3 tag information, display artist and song information
- Jpeg image playback on USB and Micro SD
- Fader/Balance
- 7 Band EQ
- 7 EQ presets (Pop, Rock, Jazz, Classical, Beat, Flat & User)
- Loudness
- AM/FM tuner with 30 station presets (12AM/18FM)
- RDS (Radio data service) Tuner
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- 1 - 2V preamp outputs (Front or Rear)
- 1 - 2V preamp output (Subwoofer)
- 1 - Rear Backup Camera Input
- 1 - Wiring harness input
- 1 - Rear Antenna
- 1 - Side USB connection accepts up to a 32Gb
- 1 - Side Micro SD connection accepts up to a 32Gb
- 1 - Steering wheel control input requires ASWC steering wheel interface
- LCD Display Dimensions: 9-3/4"W x 1"D x 6-1/4"H
- Chassis: 7-1/16"W x 6-1/2"D x 2"H
- Depth with display attached: 8" in depth
Features:
Media playback features:
Audio features:
Tuner features:
Bluetooth features:
Inputs and outputs:
Dimensions:
| Manufacturer | Dual |
|---|---|
| Part Number | XVM1000Ui |
| Chassis Size | Single DIN |
| RCA Pre-amp Audio outputs | 1 Pair |
| Illumination color | Full Color |
| Touchscreen | Yes |
| Back up camera input | Yes |
| Built-in DVD Player | No |
| Disc Playback | No |
| SD Card input | Yes, microSD Card |
| Smartphone Compatible | Yes |
| Smartphone Technology | Screen Mirroring |
| Audio Formats | FLAC, Mpeg-3 |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Navigation | via Smartphone |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | Yes |
| CEA2006 Compliant | No |
| Warranty | 1 Year |
| UPC Code | 827204114889 |
| Return period | 30 days |
| Exchange period | 30 days |
