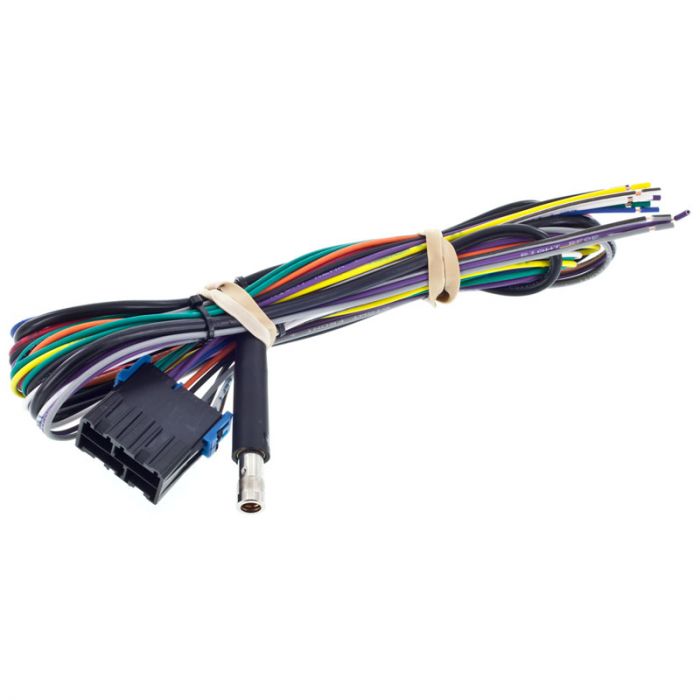

Metra TurboWires 70-1855 Tuner Relocation Bypass Wire Harness for 1988 - 1994 Buick, Chevrolet and Pontiac Vehicles

$18.99
In stock
SKU
70-1855

Key Features

  • Tuner Relocation Bypass Wiring harness for use when replacing the factory stereo
  • 60" long for easy placement
  • Includes antenna extension and adapter
  • 21-pin plug
Unit Includes: Relocation wiring harness, and Instruction manual

Metra TurboWires 70-1855 Tuner Relocation Bypass Wire Harness for 1988 - 1994 Buick, Chevrolet and Pontiac Vehicles
    Kit Features:
  • Tuner Relocation Bypass Wiring harness for use when replacing the factory stereo
  • 60" long for easy placement
  • Includes antenna extension and adapter
  • 21-pin plug
  • Allows installation of an aftermarket radio using the existing factory wiring and connectors.
  • No cutting of factory wiring is needed.
  • This particular harness bypasses the remote tuner in certain GM vehicles.
    Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue - Power Antenna Lead
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
    Vehicle Applications:
    Buick:
  • Buick Regal 1988-1994
    Chevrolet:
    • Chevrolet Full Size Truck 1988-1994
      Pontiac:
      • Pontiac Grand Prix 1988-1989
      • Pontiac Sunbird 1989-1994
More Information
Manufacturer Metra
Part Number 70-1855
Wiring harness function Replace Factory Radio
Color White
Warranty 1 Year
Vehicle Year 1990, 1991, 1992, 1993, 1994
Vehicle Brand Buick, Chevrolet, Pontiac
UPC Code 086429105175
