Unit includes: AX-ADFD100 Interface control box, 16 pin wire harness with stripped leads, LD-AX-ADFD02 harness, and Instruction manual

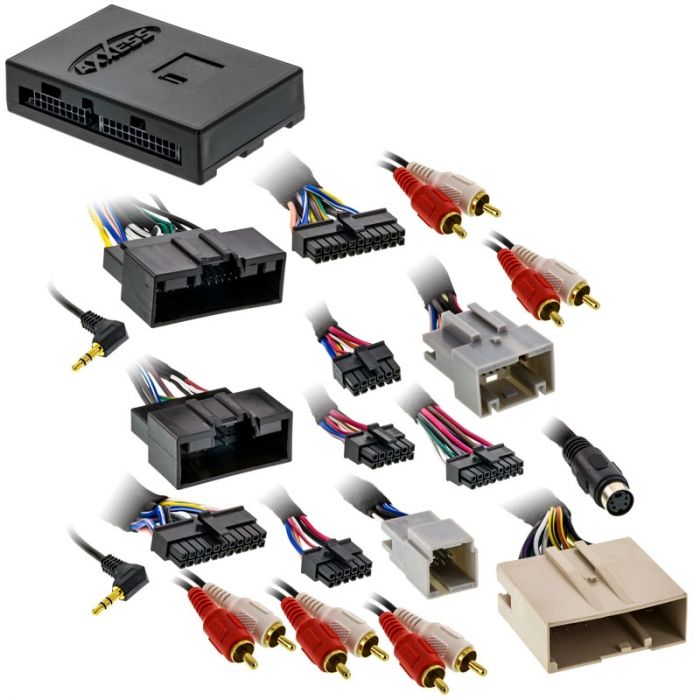

Axxess AX-ADFD100 2007 - and Up Ford RSE / SYNC / THX Radio Replacement Interface
The AX-ADFD100 interface is designed to allow you to install an aftermarket radio into your 2007 - and up Ford vehicle and have it interface with the OEM Data-Bus. The AX-ADFD100 is designed to auto detect what type of vehicle it is installed and will automatically configure itself for operation. The plug-and-play harnesses easily plugs into your vehicles factory radio connectors. The interface retains full functionality of the OEM systems as well as all safety and warning chimes.
The AX-ADFD100 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of using the steering wheel controls on your new radio and easily up-datable with a USB connection. The AX-ADFD100 now has the required outputs for the installation of a navigation radio.
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Auto detect interface for easy configuration
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used In Amplified, Non-Amplified Or Digital Amplified Systems
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- ASWC-1 harness included (ASWC-1 not included)
- Retains OE Bluetooth if equipped
- Retains SYNC in non-navigation equipped Ford vehicles
- High level speaker input
- USB updatable
- Adjustable gain control for overall volume on amplified audio systems
- Adjustable volume for SYNC in Ford vehicles
- Retains balance and fade
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- White RSE/SYNC/SAT RCA - Left Auxiliary input
- Red RSE/SYNC/SAT RCA - Right Auxiliary input
- White RCA - Subwoofer connection
- Red RCA - Center channel
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- 2014 - 2014 Econoline without Navigation
- 2007 - 2014 Edge
- 2008 - 2012 Escape
- 2007 - 2014 Expedition
- 2008 - 2010 Explorer
- 2008 - 2010 Explorer Sport-Trac
- 2009 - 2012 F-150
- 2011 - 2012 F-250
- 2011 - 2012 F-350
- 2011 - 2012 F-450
- 2011 - 2012 F-550
- 2008 - 2011 Focus
- 2008 - 2012 Fusion
- 2010 - 2014 Mustang
- 2008 - 2012 Taurus with SYNC or Sony
- 2008 - 2009 Taurus X with SYNC or Sony
- 2007 - 2010 MKX
- 2007 - 2009 MKZ
- 2007 - 2014 Navigator
- 2008 - 2011 Mariner
- 2008 - 2011 Milan
- 2008 - 2010 Mountaineer
- 2008 - 2009 Sable with SYNC or Sony
