Metra CHTO-02 2004 - 2007 Chrysler/Dodge amplified data interface
$129.99
In stock
SKU
CHTO-02
Expert Knowledge
Talk to a specialist
- Interface for Dodge and Chrysler vehicles with factory amplifiers and data-bus systems
- Provides output signals from factory bus system
- Provides constant 12 volt output
- Provides accessory 12 volt output
- Retains retained accessory power while doors remain closed
- Prewired for Metra ASWC steering wheel interface
- Provides 4 - speaker connections
- Provides parking brake, reverse, mute, V.S.S. connections

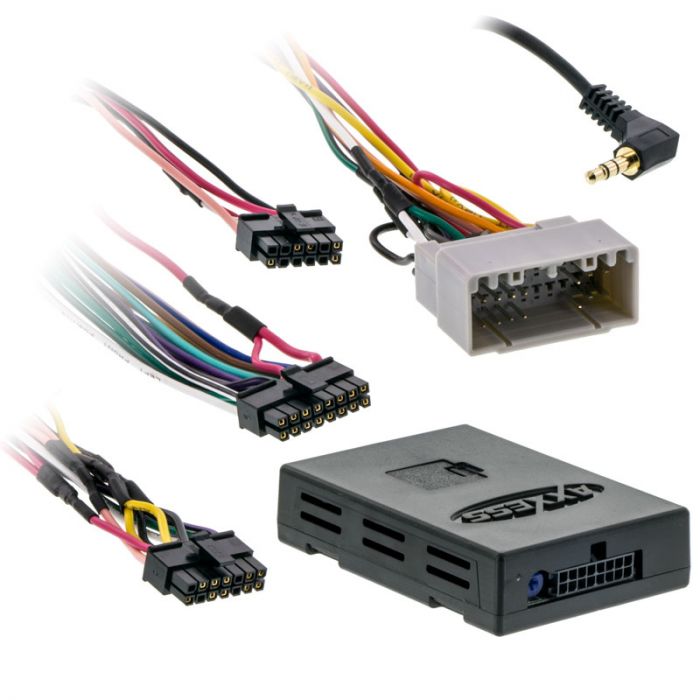

Unit includes: A) CHTO-02 interface, B) 16-pin harness, C) 14-pin harness to 22-pin Chrysler harness, and Instruction manual
Metra CHTO-02 2004 - 2007 Chrysler/Dodge amplified data interface:
Interface Features:
Connections:
Kit Components:
Tools Required:
Optional parts:
Metra CHTO-02 2004 - 2007 Chrysler/Dodge amplified data interface:
Interface Features:
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory amplified systems
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange with White Stripe – Not used
- Blue with White Stripe – Radio amplifier turn on
- Brown – Radio mute
- Light Green – Parking brake
- Blue with Pink Stripe – VSS (Vehicle speed sensor)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) CHTO-02 interface
- B) 16-pin harness
- C) 14-pin harness to 22-pin Chrysler harness
- D) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 70-6502 Car Stereo wire harness for Dodge vehicles
- Metra 40-CR10 Chrysler Antenna adapter
- 2004 - 2008 Chrysler Pacifica
- 2002 - 2005 Dodge Ram 1500
- 2003 - 2005 Dodge Ram 2500
Vehicle Applications:
Chrysler:
Dodge:
| Manufacturer | Metra |
|---|---|
| Part Number | CHTO-02 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| UPC Code | 086429218721 |
| Return period | 30 days |
| Exchange period | 30 days |
