Metra CHTO-03 2007 - and Up Chrysler, Dodge, Jeep, Mitsubishi Car Stereo interface kit

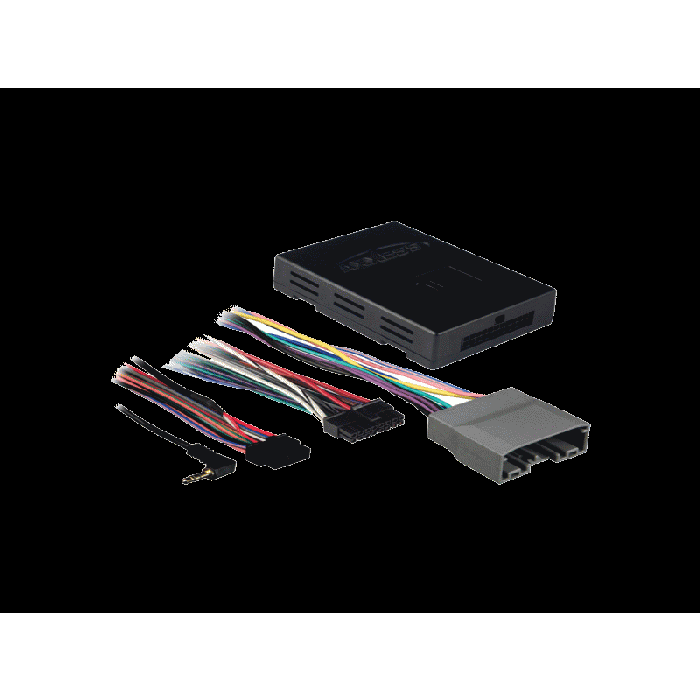

The CHTO-03 interface is designed to allow you to install an aftermarket radio into 2007 - and Up and up select Chrysler vehicles. The CHTO-03 is designed to integrate the new radio to the factory amplifier and databus system. The interface retains full functionality of the factory blindspot detection system as well as all safety and warning chimes.
The CHTO-03 also provides navigation outputs so that you can easily install an aftermarket navigation system and not have to search for VSS, parking brake or backup lead. This interface has the capability of integrateing with amplified, non-amplified systems, or digital amplified systems while retaining the factory steering wheel controls.
Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Interface provides accessory power in vehicle that use CAN-BUS to turn on the factory radio
- Interface retains R.A.P. (retained accessory power)
- Compatible with amplified, non-amplified systems, or digital amplified factory audio systems
- Provides navigation outputs for easy connection to aftermarket navigation systems (parking brake, reverse, mute, V.S.S.)
- Provides steering wheel control outputs and includes ASWC-1 harness (Metra ASWC-1 Steering wheel control sold separately)
- Adjustable gain control for overall volume (on amplified systems)
- Retains blind spot detection system (if equipped)
- Interface can be updated with USB
- High-level speaker input
- Retains balance and fade
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- Brown - Mute connection
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Fitments:
Chrysler:
- 2011 - and Up 200
- 2008 - 2010 300
- 2008 - 2009 Aspen
- 2007 - 2010 Sebring
- 2008 - and Up Town and Country
Dodge
- 2008 - and Up Avenger
- 2009 - 2012 Caliber
- 2009 - and Up Challenger
- 2008 - 2010 Charger
- 2008 - 2011 Dakota
- 2008 - 2013 Durango
- 2008 - and Up Grand Caravan
- 2009 - 2010 Journey
- 2008 - 2009 Magnum
- 2007 - 2011 Nitro
- 2009 - 2009 Ram 1500
- 2010 - 2011 Ram 2500 / Ram 3500
Jeep
- 2008 - 2010 Commander
- 2009 - and Up Compass
- 2008 - 2013 Grand Cherokee
- 2008 - 2012 Liberty
- 2009 - and Up Patriot
- 2007 - and Up Wrangler
Mitsubishi
- 2008 - 2009 Raider
Ram
- 2012 - 2012 1500 / 2500 / 3500
- 2012 - and Up C/V Tradesman
- 2012 - 2012 Chassis Cab 3500 / 4500 / 5500
| Manufacturer | Metra |
|---|---|
| Part Number | CHTO-03 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| UPC Code | 086429164745 |
| Return period | 30 days |
| Exchange period | 30 days |
