Axxess GMOS-LAN-09 OnStar Interface for 2014 - and Up GM Vehicles

Axxess GMOS-LAN-09 OnStar Interface for 2014 - and Up GM Vehicles

Axxess GMOS-LAN-09 OnStar Interface

More Views

Axxess
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Axxess GMOS-LAN-09 Product Highlights

  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in non-amplified audio systems
  • Retains chimes
  • Retains factory auxiliary input
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

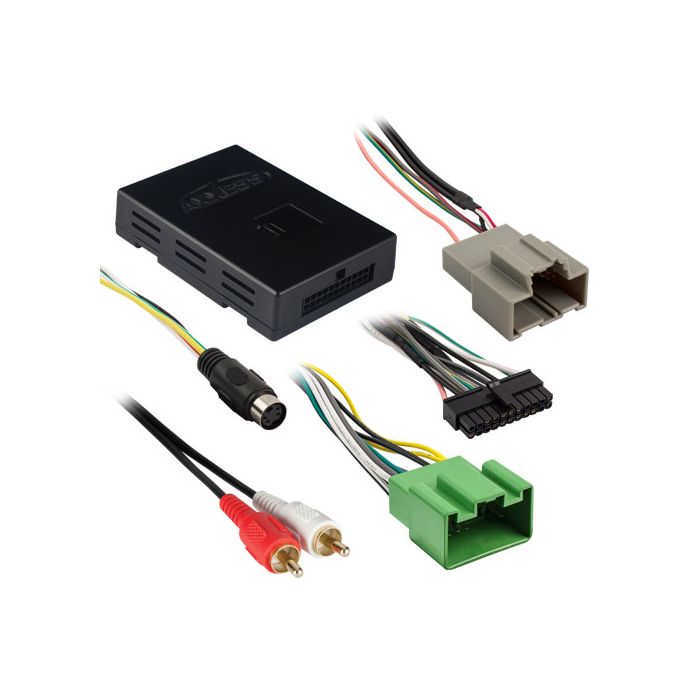

Unit includes: GMOS-LAN-09 Interface control box, 16 pin wire harness, GM harness, and Instruction manual

Axxess GMOS-LAN-09 OnStar Interface for 2014 - and Up GM Vehicles

The GMOS-LAN-09 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM vehicle and OnStar system. The GMOS-LAN-09 is designed for 2014 and Up GM vehicles that use the GMLAN data bus system. The interface retains full functionality of the OnStar system as well as all safety and warning chimes.

The GMOS-LAN-09 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting chime and OnStar volumes as well. In addition to these features, the GMOS-LAN-09 now has the required outputs for the installation of a navigation radio.



Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in non-amplified audio systems
  • Retains chimes
  • Retains factory auxiliary input
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • ASWC-1 harness included (ASWC-1 not included)
  • Retains OnStar and OE Bluetooth if equipped
  • Adjustable volume for chimes and OnStar
  • Interface is designed for non-amplified audio systems
  • High level speaker input
  • USB updatable
  • Retains balance and fade
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange/White – Dash Light Dimmer/Illumination
  • Blue/White – Amplifier turn on
  • Brown - Mute connection
  • Light green – (-) Parking brake lead
  • Blue/Pink – VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple – (+) Reverse trigger
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Fitments:

Chevrolet:
  • Silverado 1500: 2014 and Up
  • Silverado 2500: 2015 and Up
  • Silverado 3500: 2015 and Up
  • Suburban: 2015 and Up
  • Tahoe: 2015 and Up


GMC
  • Sierra 1500: 2014 and Up
  • Sierra 2500: 2015 and Up
  • Sierra 3500: 2015 and Up
  • Yukon: 2015 and Up

Technical Specifications

Manufacturer Axxess
Part Number GMOS-LAN-09
Integration Module No
Steering Wheel Control Input No
RCA Pre-amp Audio inputs No
Speaker level inputs No
Warranty 1 Year
Vehicle Year 2014, 2015
Vehicle Brand Chevrolet, GMC
Vehicle Model No
UPC Code 086429288045
