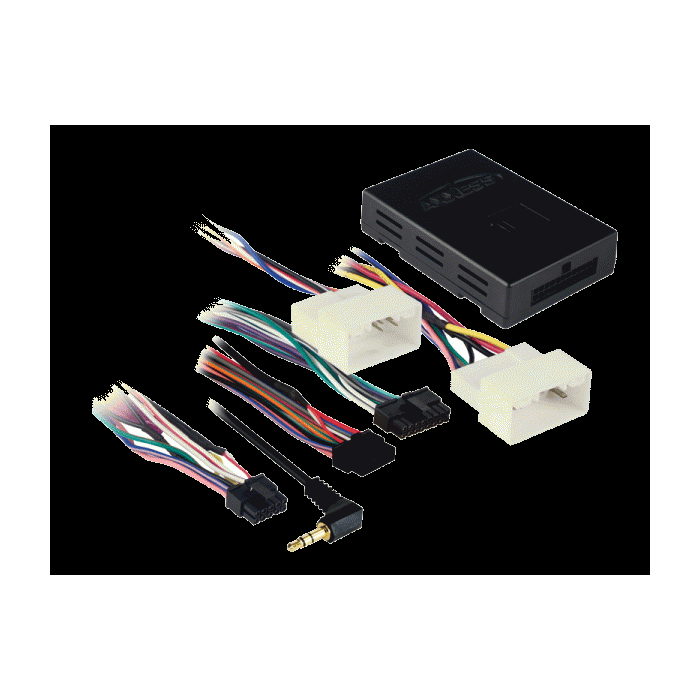

Unit includes: HYBL-04 Interface control box, 16 pin wire harness, Steering wheel interface, Hyundai and Kia harness, and Instruction manual
Axxess HYBL-04 SPIDIF Interface for 2010 - and Up Hyundai and Kia vehicles with Blue Link
The HYBL-04 interface is designed to allow you to install an aftermarket radio into 2010 and up Hyundai and Kia vehicles with Blue Link. The HYBL-04 is designed to integrate the new radio to the factory amplifier and databus system. The interface retains full functionality of the Blue Link system as well as all safety and warning chimes.
The HYBL-04 also provides navigation outputs so that you can easily install an aftermarket navigation system and not have to search for VSS or backup lead. This interface has the capability of retaining the factory aux jack and is pre-wired for steering wheel controls.
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Retains Blue Link information system
- Provides navigation outputs for easy connection to aftermarket navigation systems (parking brake, reverse, mute, V.S.S.)
- Used in SPDIF digital audio systems
- Interface can be updated with USB
- Retains factory auxiliary input
- ASWC-1 harness included (ASWC-1 not included)
- Retains balance and fade
Hyundai and Kia:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- Brown - Mute connection
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Black/Yellow - Hyundai and Kia volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- 2012 - 2013 Azera
- 2011 - 2013 Elantra
- 2013 - 2013 Genesis Coupe
- 2010 - and Up Sonata
- 2010 - and Up Hyundai and Kia Tuscon (Non-Navigation)
- 2010 - Up Optima
- 2012 - Up Soul
- 2011 - Up Sportage
