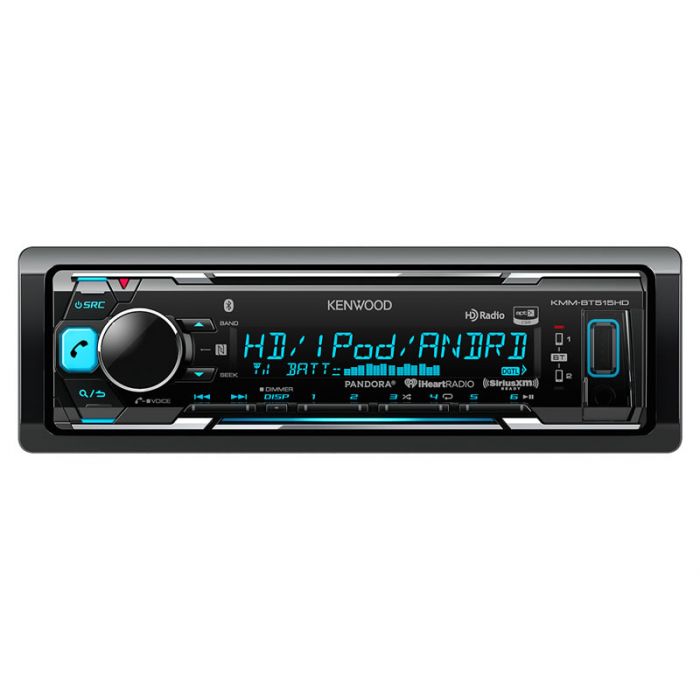

Kenwood KMM-BT515HD Single DIN Digital Media Car Stereo Receiver with Bluetooth and HD-Radio

Kenwood KMM-BT515HD Single DIN Digital Media Car Stereo Receiver with Bluetooth and HD-Radio

Kenwood KMM-BT3515U Single DIN Car Radio - Front

More Views

Item sku:KMM-BT515HD
Kenwood

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Kenwood KMM-BT515HD Product Highlights

  • Single DIN In-Dash mech-less receiver
  • Full detachable face-plate for extra security
  • Front USB input for thumb-drives
  • AM/FM HD-Radio tuner
  • 13-band EQ
  • SiriusXM radio ready
  • Steering wheel control input
  • 4V preamp outputs (Front, Rear and Subwoofer)

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Single DIN Stereo, Wiring harness, Remote control, Mounting hardware, Bluetooth microphone and Instruction manual

Kenwood KMM-BT515HD Single DIN Digital Media Car Stereo Receiver with Bluetooth and HD-Radio

    Features:
  • Single DIN In-Dash Mech-less receiver plays all digital files but does not have a disc media player
  • Full detachable face-plate for extra security
  • Multi-Segmented 13 Digital 1.5 Line LCD Display
  • Variable button illumination for perfect matching of your factory button color
  • Dimmer and brightness control
  • Built in Bluetooth for phone calls and wireless audio streaming
  • AM/FM tuner
  • Siri Eyes Free voice control for iphone
  • Android Rapid Charge
  • Android Music Playback
  • Compatible Kenwood Music Play Android App
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • Displays MP3 ID3 Tag including title, artist & album
  • Steering wheel control input
  • Front USB input for thumb-drives


Media playback features:
  • Does not contain a CD media player, plays digital media files only
  • MP3/WMA/iTunes AAC/FLAC Audio Playback on USB
  • MP3 ID3 tag information, display artist and song information
  • Linear PCM decoder for excellent digital audio quality
  • FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
  • Pandora® Radio App Compatible from iPod touch, iPhone with proper cable
  • Pandora® Radio App Compatible from Android and Blackberry through Bluetooth
  • iHeart® Radio App Compatible from iPod touch, iPhone with proper cable


Audio features:
  • 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / User / Jazz)
  • Manual EQ with 62.5 Hz / 100Hz / 160 Hz / 250 Hz / 400 Hz / 630 Hz / 1 kHz / 1.6 kHz / 2.5 kHz / 4 kHz / 6.3 kHz / 10 kHz / 16 kHz frequency centers ±9dB
  • Tweeter High-Pass filter with variable slopes and crossover frequencies (Adjustable from 1 kHz to 12.5 kHz) and (Adjustable left and right gain from -6dB - 0dB
  • Front High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Rear High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 30 to 250 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
  • Subwoofer phase control 0° - 180°
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (3.5" / 4" / 4.75" / 5" / 6.5" / 6.75" / 7" / 4x6" / 5x7" / 6x8" / 6x9" / 7x10")
  • Boost bass with 6 levels Level1 / Level2 / Level3 / Level4 / Level5 / Off
  • Sound reconstruction restores digital files
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
  • Digital time alignment with independent front, rear, and subwoofer delay


Tuner features:
  • Includes AM & FM HD-Radio tuner with 24 preset stations memory
  • RDSB (Radio data service) Tuner
  • SiriusXM radio ready with SXV300 Sirius XM tuner
  • SiriusXM radio replay, replay up to the last 60 minutes of your current channel
  • SiriusXM radio SmartFavorites - automatically buffers the broadcast audio content of SmartFavorites channels in the background so you can rewind or replay any missed content


    Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 3.0 certified
  • Bluetooth 2.1+ EDR certified
  • Siri Eyes Free voice support
  • Dual Phone connection capable
  • Android Rapid Charge
  • Bluetooth Auto Pairing
  • Wireless Music Browsing
  • aptX Codec support for excellent sound quality


Inputs and outputs:
  • 3 - 4V preamp outputs (Front, Rear and Subwoofer)
  • 1 - 3.5mm front audio input for connection to external source
  • 1 - SiriusXM radio tuner input
  • 1 - Rear USB connection
  • 1 - Rear microphone input
  • 1 - Steering wheel control input requires Axxess ASWC-1 Universal Steering Wheel Control Interface


    Dimensions:
  • Single DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 2"H

Technical Specifications

Manufacturer Kenwood
Part Number KMM-BT515HD
Chassis Size Single DIN
Illumination color Full Color
Faceplate features Detachable face plate
Built-in DVD Player No
Disc Playback No
Anti-Shock No
Dual Zone Control No
LCD Screen Size No
Native Screen Resolution No
Widescreen Display No
Touchscreen No
Swivel Screen No
Built in Bluetooth Yes, Built in Bluetooth
NFC (Near Field Communication) Yes
HD Radio Yes
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
Front mounted auxiliary input 3.5 mm audio input
Front camera input N/A
Back up camera input No
Audio Video inputs 1 Audio Input
Audio Video Outputs No
USB input Yes
SD Card input No
MP3 Playback Yes
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
Navigation No
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
Steering Wheel Control Input Yes, requires external module
Built in Crossover High-pass, Low-pass
Wireless Remote Control Yes
Warranty 1 Year
UPC Code No
