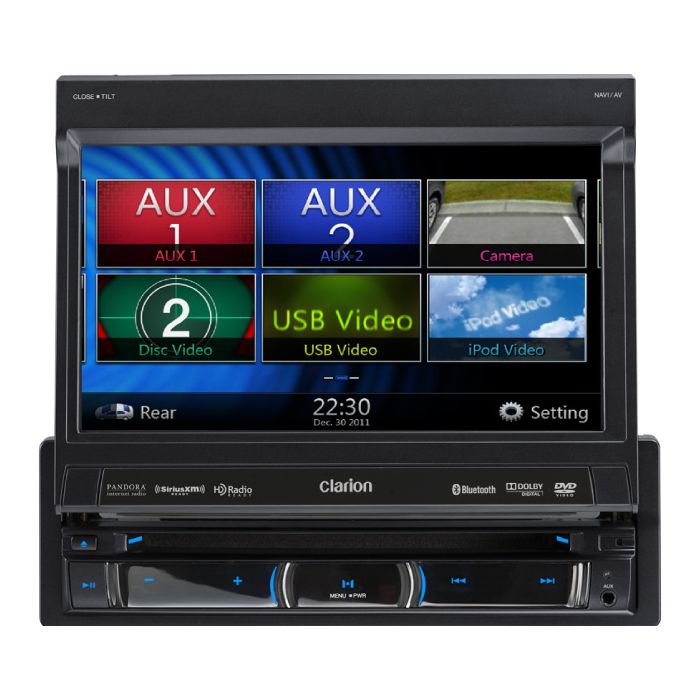

Clarion NZ503 Single-DIN In-Dash 7" Motorized LCD Monitor with Multimedia DVD Player Built-in Navigation Parrot Bluetooth Module and Touch Panel

Clarion NZ503 Single-DIN In-Dash 7" Motorized LCD Monitor with Multimedia DVD Player Built-in Navigation Parrot Bluetooth Module and Touch Panel

Clarion NZ503 Single-DIN In-Dash 7" Motorized LCD Monitor with Multimedia DVD Player Built-in Navigation Parrot Bluetooth Module and Touch Panel

More Views

Item sku:NZ503
Clarion

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Clarion NZ503 Product Highlights

  • 7-inch Digital Touch Panel WVGA Monitor
  • CD/MP3/WMA/DVD/MP4 Playback
  • Built-in Parrot Bluetooth Interface (HFP, HSP, OPP, A2DP, AVRCP, DUN, PBAP)
  • 2-Zone Entertainment: Front and Rear Separate Source Control
  • Rear USB Port with iPod Direct Connect Capabilities

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Single DIN monitor, Remote control, Wiring harness, Mounting hardware, and Instruction manual

Clarion NZ503 Single DIN In Dash 7 inch Motorized LCD Monitor with Multimedia DVD Player, Built-in Navigation, Parrot Bluetooth Module and Touch Panel

  • 7-inch Digital Touch Panel WVGA Monitor
  • CD/MP3/WMA/DVD/MP4 Playback
  • Built-in Parrot Bluetooth Interface (HFP, HSP, OPP, A2DP, AVRCP, DUN, PBAP)
  • Built-in Microphone and External Microphone Ready with Optional RCB204
  • Audio/Video Inputs (Front 3.5mm, Rear RCA)
  • 2-Zone Entertainment: Front and Rear Separate Source Control
  • Rear USB Port with iPod Direct Connect Capabilities
  • iPod Audio/Video Control with Optional CCA750 iPod Interface Cable
  • Pandora® Station Link with USB using Pandora® App
  • Rear Vision Camera Composite Video Input
  • Built-in iGo Primo® mapping on Preloaded microSD Card
  • 15 Million Points of Interest
  • Text to Speech for Street Announcements
  • Multi Language Display Capability (English, Spanish, French)
  • HD Radio Ready with iTunes Tagging (Optional THD400)
  • SiriusXM-Ready (SiriusXM-Connect Vehicle Tuner)
  • 50 Watts × 4 Built-in Amplifier
  • 6-Channel / 4 Volt RCA Output
  • Subwoofer Volume Control
  • 24-bit D/A Converter
  • Built-in High and Low Pass Filters
  • Magna Bass EX Dynamic Bass Enhancement and Parametric Equalizer
  • Beat EQ for Sound Adjustment
  • OEM Steering Wheel Remote Ready
  • Wireless Remote Control Included

Details
  • Easy Navigation Map Updates : It is easy to keep the navigation system up to date. Simply download new map data from Clarion’s portal site, store them on a microSD card and insert it into the NZ503 via the front card slot. Unpleasant surprises are now avoided as navigation maps will match the real world.
  • Navigation Voice Guidance : English, French, Spanish
  • Map Coverage: US 50 States, Canada, Puerto Rico
  • Text to Speech Voice : English, French, Spanish
  • Interactive GUI with Flick Operation: The NZ03’s touch sensor GUI (Graphical User Interface) supports flick operation, so you can quickly scroll to another menu page. Feature icons are animated for an enhanced appearance, and they can be dragged and dropped into different positions to customize the screen.
  • Parrot Bluetooth offers extremely comprehensive compatibility with a variety of mobile phones. Enjoy hands-free communication using the built-in microphone and Phonebook access. Play music stored on your mobile phone with Bluetooth audio streaming. A wide range of protocols are supported: HFP/HSP/A2DP/AVRCP/PBAP/OPP. Firmware updates are possible via USB connection.Dependent on mobile phone.
  • Made for iPod and Made for iPhone certified so you can enjoy the convenience of iPod/iPhone ABC Search to quickly access tunes, and simple control mode to allow operation using the iPod/iPhone controls. Album Artwork is displayed to visually enhance the interactivity.
  • For audio playback, please use the USB cable provided with your iPod / iPhone.
  • For video playback, an optional CCA750 cable is required.
  • 2-Zone Entertainment: This allows rear seat passengers to enjoy a DVD movie or iPod Video while the front seat passengers enjoy their favorite radio station or music from a USB memory device.
  • Beat EQ for User Customizable Sound: In addition to providing 3 preset equalization patterns — BASS BOOST, IMPACT and EXCITE — Clarion’s Beat EQ allows you freedom to customize the level and range of the bass, midrange and treble portions of each pattern. You can adjust the sound to your liking, depending on the genre of music, for a more fulfilling listening experience.

Technical Specifications

Manufacturer Clarion
Part Number NZ503
Chassis Size Single DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
LCD Screen Size 7 inch - 8 inch
Illumination color No
LCD Screen Brightness 400 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input No
Back up camera input Yes
Audio Video inputs 2 Audio Video Inputs
Front mounted auxiliary input 3.5 mm audio input
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control Yes
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input Yes, SD Card
USB input Yes
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible No
Smartphone Technology No
NTSC/PAL NTSC and PAL
Audio Formats Mpeg-3, WMA
Video Formats MPEG-4
MP3 Playback Yes
Built in Bluetooth Yes, Built in Bluetooth
NFC (Near Field Communication) No
HD Radio Optional
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Navigation Built in
GPS Maps No
Text to Speech No
Traffic Tuner No
Points of Interest No
Integration Module N/A
Steering Wheel Control Input Yes, Built in control
Wireless Remote Control Yes
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 729218019832
