Accelevision LCDRV700CCDR 1/3 inch CCD Surface Mount Commercial Grade Back up camera with IR illumination

Accelevision LCDRV700CCDR 1/3 inch CCD Surface Mount Commercial Grade Back up camera with IR illumination

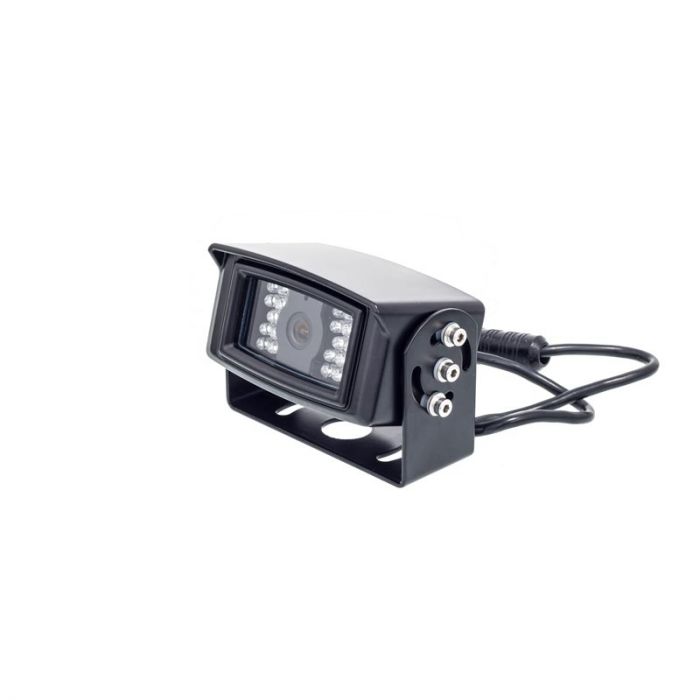

Safesight SC700CCDR 1/3 inch CCD Surface Mount Commercial Grade Back up camera with IR illumination - Front right view

More Views

Item sku:LCDRV700CCDR

Overall Rating 4 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Accelevision LCDRV700CCDR Product Highlights

  • 1/3 inch CCD Sharp image sensor
  • 120 degrees Wide Angle Camera
  • Switchable between reverse or non reverse image for front or rear use
  • 28 IR LED's for 50 foot Night Vision range
  • Built-in Microphone

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!


Unit Includes: Camera, Mounting Brackets and Wiring Harness.

Commercial Grade Surface Mount Rear View Camera with Integrated Sun shield Features:
    1/3 inch CCD cameras provide the best color rendition and low light capabilities. Larger imaging devices allow the camera to capture more light with better detail. 1/3 inch CCD back up cameras are great for RV's, Commercial trucks and other industrial vehicles where great low light and excellent picture quality are paramount. This back up camera has 28 IR LED's for excellent night vision capabilities even in pitch dark places.

  • Highest Quality CCD camera which provides the best picture
  • 1/3 inch Sharp CCD sensor
  • 512 x 492 pixel sensor area
  • 420 TV lines of resolution
  • IP69K Waterproof Design
  • 120 degree wide angle view
  • Built in microphone
  • 28 Infrared LED Night vision illumination
  • 50 feet IR illumination distance
  • Switchable between reverse and non-reverse image
  • Rugged die cast aluminum housing with integrated sun shield
  • Anodized black finish
  • Mounting plate included
  • Dimensions: 4 1/2" (W) x 2 5/8" (H) x 3" (D)
  • Operating Temperature: 14 degrees - 131 degrees F
  • Input Voltage: DC 12V
  • Minimum Illumination: 1 lux (Color) / 0.2 lux (B/W)

Technical Specifications

Manufacturer Accelevision
Part Number LCDRV700CCDR
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/3 inch
Viewing Angle 120 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Trigger wire No
Auto on/off Yes
Connector Type 4 Pin Connector
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Customer Reviews

pyle monitor
Review by
Install (5 star for easy)
This camera is going to be installed as a back up camera on a 2011 Chev Silverado. Let's face it. All of these cameras are over-priced considering what you're actually getting. Biggest dissapointment was that the camera did not have any cabling with it. The website states that it includes a "wire harness". Wire harness apparently means the 6" pigtail coming out of the camera head. However, I made just one phone call to the support line and they sent out the 30' harness and RCA adapter the same day. (Posted on 2/5/2012)
