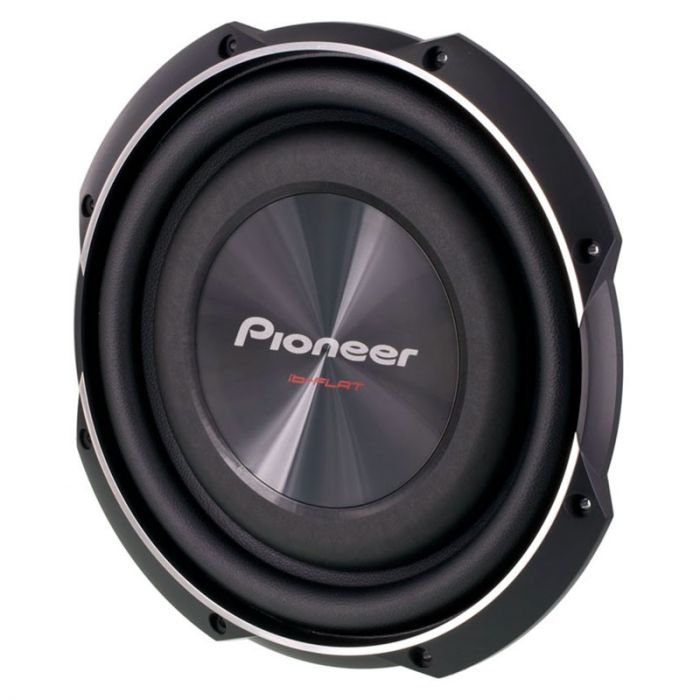

Pioneer TS-SW3002S4 12" Shallow Subwoofer With 1500 Watts Max Power - 4 ohm

Pioneer TS-SW3002S4 12" Shallow Subwoofer With 1500 Watts Max Power - 4 ohm

Pioneer TS-SW3002S4  12" Low Profile Car Subwoofer - Front right

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Pioneer TS-SW3002S4 Product Highlights

  • 12" Subwoofer with single 4 ohm voicecoil
  • Mica- Reinforced IMPP oversized cone
  • Dual layer, fiber reinforced elastic polymer surround
  • Dual spiders for excellent linear control
  • 400 Watt nominal continuous power handling RMS
  • Sensitivity: 93 dB @ 1Watt / 1meter
  • Mounting depth: 3-3/8"
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Shallow mount subwoofer, Mounting hardware, and Instruction manual


Pioneer improves on it's already famous TS-Series shallow mount subwoofers with the introduction of the 2nd generation. This 12 inch low profile subwoofers conveniently fits behind a truck seat or in any tight space while delivering the bass performance you need. This 12 inch subwoofer can be installed in a ported or sealed enclosure and Pioneer recommends the UD-SW300D Down firing subwoofer enclosure (Sold separately) as this enclosure as the ideal airspace and designed for this sub.

Pioneer TS-SW3002S4 12" Shallow Subwoofer With 1500 Watts Max Power
    Features:
  • 12" Subwoofer with single 4 ohm voicecoil
  • Mica- Reinforced IMPP oversized cone
  • Dual layer, fiber reinforced elastic polymer surround
  • Dual spiders for excellent linear control
  • Strontium magnet construction
  • Stamped steel basket
  • Vented pole piece
  • Silver spring compression terminal
  • 4-layer long voice coil for high temperature and power handling

  • Power Handling Max:
  • 1,200 Watt maximum power handling

  • Power Handling RMS:
  • 400 Watt nominal continuous power handling RMS

  • Quick Specs:
  • Impedance: 4Ω
  • Frequency response: 20 Hz–290 Hz
  • Sensitivity: 93 dB @ 1Watt / 1meter

  • Dimensions:
  • Overall dimensions: 13" (Diameter) x 3-5/8" (Deep)
  • Cutout diameter: 11-3/4"
  • Mounting depth: 3-3/8"

Technical Specifications

Manufacturer Pioneer
Part Number TS-SW3002S4
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 4235
QES .64
QMS 13.95
QTS .61
RE 3
VAS 35.4
Xmax (millimeters) 8.8mm
Sensitivity 93dB
Frequency Response 20 - 125 Hz
Sub enclosure type Ported / Vented, Sealed
Power Handling RMS Up to 300 watts
Power Handling Peak 1500 watts
Shallow Mount Subwoofer Yes
Mounting Depth $3.33
Cutout Dimensions $11.75
Sealed Enclosure Recommended Size 0.6 cubic feet
Ported Enclosure Recommended Size 0.6 cubic feet
Color Black
Warranty 1 Year
UPC Code 884938234719
