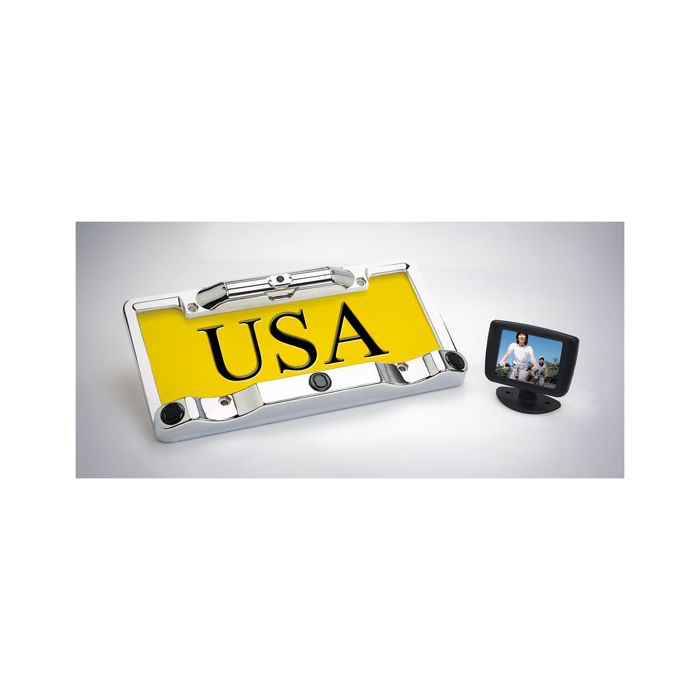

Boyo VTC433H Chrome license plate back up camera with 3 ultra sonic sensors

Boyo VTC433H Chrome license plate back up camera with 3 ultra sonic sensors

Boyo VTC433H Chrome license plate back up camera with 3 ultra sonic sensors

More Views

Item sku:40560
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTC433H Product Highlights

Boyo VTC433H Chrome license plate back up camera with 3 ultra sonic sensors

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Back up camera with back up sensors, 3 inch LCD Monitor with mute, low, medium, and high audio alert, Wiring harness, RCA cable, Mounting bolts, and Instruction manual

Boyo VTC433H Chrome license plate back up camera with 3 ultra sonic sensors
  • The camera is adjustable up and down
  • 130 Degrees wide viewing angle
  • Best detecting distance: 1.15 ft ~ 6.56 ft
  • Easy to install.
  • High definition, wide viewing angle CCD camera
  • Three ultrasonic sensors are built-in to the frame
  • Audible through the 3" LCD monitor
  • Model: VTC433H Camera
  • Image sensor: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels: NTSC : 512(H)X492(V)
  • Horizontal resolution: 420 TV Lines
  • Total number of pixels: 320K
  • Min.Illumination: 0.5 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 - 1/1000 sec
  • White balance: Auto
  • Gain control: Auto
  • Lens mount: 2.8mm Pinhole lens (130˚ D)
  • Power source: DC12V
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80˚ C )
  • Waterproof: IP67

Model VTC433H Monitor
  • Display Resolution: 900(W) x 240(H)
  • Screen Size: 2.96 Diagonal
  • Color Configuration: RGB Delta
  • Working Voltage: 12V
  • Power Consumption: 8W Max
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80˚ C )

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTC433H
Auto Dimming N/A
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off Yes
Connector Type RCA Cable
NTSC/PAL NTSC and PAL
Operation Voltage 12 - 15 volt
Battery Powered N/A
Cigarette Lighter Cord Included No
Color Chrome
Case included No
Built in Speakers Yes
Warranty 1 Year
UPC Code No
