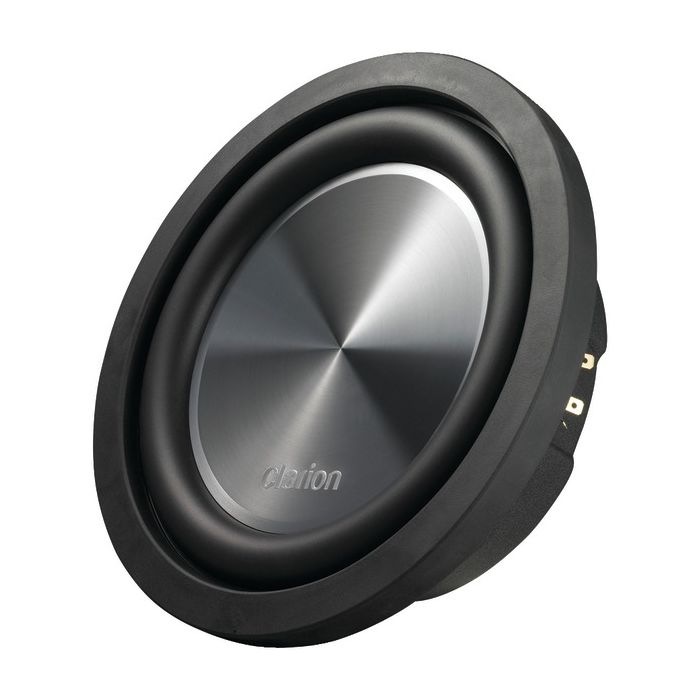

Clarion WF2520 10" Single 4-ohm Voice Coil Shallow Mount Subwoofer - 1000 Watt Max

Clarion WF2520 10" Single 4-ohm Voice Coil Shallow Mount Subwoofer - 1000 Watt Max

Clarion WF2520 10" Car Shallow Mount Subwoofer - Side

More Views

Item sku:WF2520
Clarion

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Clarion WF2520 Product Highlights

  • 10" Shallow mount woofer with reinforced SPP cone
  • Nitrile Butadiene Rubber High Excursion Surround
  • Aluminized IPP Dust Cap
  • 39 ounce Powerful Strontium Magnet
  • 1000 Watt power handling
  • Speaker Cut-out Size: 9-7/32"
  • Mounting Depth: 3-1/8"
  • Single 4-ohm Aluminum Voice Coils

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 10 inch single voice coil shallow mount subwoofer, Mounting hardware, and Instruction manual

Clarion WF2520 10" Single 4-ohm Voice Coil Shallow Mount Subwoofer - 1000 Watt Max features:
    Features
  • Clarion Shallow Mount Subwoofers are a step up from most other manufacturer's Shallow Mount Subwoofers they offer excellent sound quality and deepest low frequencies all in a small chassis that fits under any seat or bench
  • 10" Woofer with Reinforced SPP Cone Woofer which makes it extremely rigid for minimal distortion and lightening fast transient response for the best sound quality and able to withstand high power levels
  • Nitrile Butadiene Rubber High Excursion Surround keeps the woofer cone in control at high volume levels
  • Aluminized IPP Dust Cap
  • 39 ounce Powerful Strontium Magnet for Dynamic Bass Response
  • Hyper Extended Rear Vented Pole Piece to keep voice coil temperatures down during large excursions
  • Single 4-ohm Heavy Duty Black Aluminum Voice Coils
  • Linear Cotton Spider with Integrated Tinsel leads for excellent cone control
  • Custom stamped steel powder coated basket for rigidity
  • Excellent bass response in standard sealed or ported enclosures

  • Power Handling Max
  • Max power: 1000 Watts

  • Power Handling RMS
  • RMS Power: 300 watts

  • Quick Specs
  • Frequency response: 36 Hz to 2 kHz
  • Sensitivity: 85 dB
  • Voice coil diameter: 50.8 mm
  • Voice coil length: 18 mm
  • Impedance: Dual 4 ohms
  • Type: Single voice coil shallow mount subwoofer

  • Dimensions
  • Speaker Cut-out Size: 9-7/32"
  • Mounting Depth: 3-1/8"

Sealed enclosure specifications:
  • Recommended Sealed (cubic feet): 0.45
  • Minimum Sealed (cubic feet): 0.35
  • Maximum Sealed (cubic feet): 0.7

Ported enclosure specifications:
  • Recommended vented (cubic feet): 0.60
  • Recommended port size in inches: 3" Diameter x 8" Length
  • Minimum vented (cubic feet): 0.40
  • Maximum vented (cubic feet): 0.80

Technical Specifications

Manufacturer Clarion
Part Number WF2520
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 45 Hz
QES 0.844
QMS No
QTS 0.737
RE 3.6 Ohms
VAS 16.004 L
Xmax (millimeters) 5 mm
Sensitivity 85 dB
Frequency Response 36Hz - 2KHz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 301 - 500 watts
Power Handling Peak 1000 Watts
Shallow Mount Subwoofer Yes
Mounting Depth $3.13
Cutout Dimensions $9.22
Sealed Enclosure Recommended Size 0.45 cubic feet
Ported Enclosure Recommended Size 0.60 cubic feet
Color Black
Warranty 1 Year
UPC Code 729218020326
