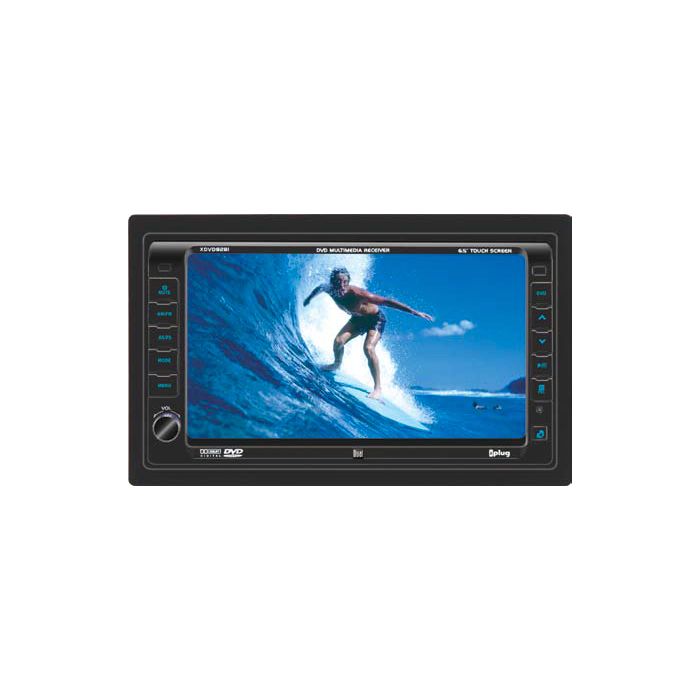

DISCONTINUED - Dual XDVD8281 In Dash 7 Inch Touchscreen Motorized TFT LCD Monitor 200 Watt Single DIN DVD Multimedia Player

DISCONTINUED - Dual XDVD8281 In Dash 7 Inch Touchscreen Motorized TFT LCD Monitor 200 Watt Single DIN DVD Multimedia Player

DISCONTINUED - Dual XDVD8281 In Dash 7 Inch Touchscreen Motorized TFT LCD Monitor 200 Watt Single DIN DVD Multimedia Player

More Views

Dual
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Dual XDVD8281 Product Highlights

DISCONTINUED - Dual XDVD8281 In Dash 7 Inch Touchscreen Motorized TFT LCD Monitor 200 Watt Single DIN DVD Multimedia Player
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Remote control

DISCONTINUED - Dual XDVD8281 In Dash 7 Inch Touchscreen Motorized TFT LCD Monitor 200 Watt Single DIN DVD Multimedia Player
  • General
  • Motorized 7" touch screen TFT LCD monitor
  • 50x4 Max Power (200 Watts)
  • Fully self-contained (no hide-away box)
  • Import ISO/DIN mountable
  • Internal cooling fan
  • Electronic volume, bass, treble, balance, and fader
  • MOSFET audio output
  • 3 Pairs of preamp outputs (F/R/S)
  • 1 Audio/video input (RCA)
  • 1 Rear camera input (RCA)
  • 2 Composite video outputs
  • iplug interface cable
  • 24-Bit D/A Converter
  • Blue/white dot matrix secondary display
  • Infrared remote control
  • Operating voltage: 11-16 VDC, negative ground
  • Speaker output impedance: 4~8 ohms
  • Line output voltage: 2 Volts
  • Line output impedance: 200 ohms
  • Chassis dimensions: 7" x 6.3" x 3.9" (178 x 160 x 99 mm)
  • Faceplate dimensions: 6.6" x .7" x 3.8" (167 x 18 x 97 mm)
  • Sleeve dimensions: 7.1" x 3.9" x 4.4" (180 x 99 x 112 mm)

  • Monitor
  • Panel size: 6.5” (165.1 mm) diagonal measurement
  • View angle (up/down/left/right): 40/55/60/60
  • Resolution: 400 W x 234 H
  • Brightness (cd/m2): 350
  • Contrast ratio: 350:1
  • Elements: 280,800

  • DVD/CD/MP3/WMA
  • MP3/WMA encoded CD/DVD playback
  • DVD-R/RW/DVD+R/RW/CD-R/CD-RW compatible
  • Direct track access
  • Last position memory
  • Random/repeat/play/pause
  • High-speed track search
  • On screen display
  • ESP buffer
  • Subtitle/angle
  • Zoom
  • Play/pause
  • Chapter skip/search
  • Direct time/title/chapter access
  • Frequency response: 10Hz-20kHz
  • Channel separation @ 1kHz: >65dBv
  • D/A converter: 24 Bit

  • FM Tuner
  • Tuning range: 87.5MHz-107.9MHz
  • Usable sensitivity: 8.5dBf
  • 50dB quieting sensitivity: 10dBf
  • Stereo separation @ 1kHz: 40dB
  • Frequency response: 30Hz-13kHz
  • US/European frequency spacing
  • 48 Station presets

  • AM Tuner
  • Tuning range: 530kHz-1710kHz
  • Usable sensitivity: 22uV
  • Frequency response: 30Hz-2.2kHz

  • XDVD8281 Instruction Manual

Technical Specifications

Manufacturer Dual
Part Number XDVD8281
Chassis Size Single DIN
Faceplate features No
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage No
LCD Screen Size 7 inch - 8 inch
Illumination color N/A
LCD Screen Brightness No
Swivel Screen No
Touchscreen Yes
Widescreen Display 4:3 Normal Aspect Ratio
Native Screen Resolution 480 x 234
Front camera input N/A
Back up camera input N/A
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input RCA audio/video input
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock No
Dual Zone Control No
iPod Audio Connection No
iPod Video Connection No
SD Card input Yes, SD Card
USB input Yes
HDMI input N/A
HDMI output N/A
Pandora Streaming N/A
Smartphone Compatible N/A
Smartphone Technology N/A
NTSC/PAL No
Audio Formats N/A
Video Formats N/A
MP3 Playback Yes
Built in Bluetooth No
NFC (Near Field Communication) N/A
HD Radio No
Radio Data Service - RDS No
Satellite Radio No
Navigation No
GPS Maps N/A
Text to Speech N/A
Traffic Tuner N/A
Points of Interest N/A
Integration Module N/A
Steering Wheel Control Input No
Wireless Remote Control Yes
TV Tuner No
VGA input N/A
Operation Voltage N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 827204101926
