Axxess AX-ADFD02 Harness for 2011 - and Up Ford Vehicles
Axxess AX-ADFD02 Harness for 2011 - and Up Ford Vehicles
Key Features
Facilitates the installation of the AX-ADBOX1 or ADBOX2 interface box in select Ford vehicles Easy plug-and-play installation to an aftermarket car stereo Provides navigation outputs like reverse, parking brake, VSS Includes a pre-wired ASWC-1 steering wheel interface connector Color coded wires for easy installation
Unit includes: AX-ADFD02 Interface Wiring Harness and Instruction manual

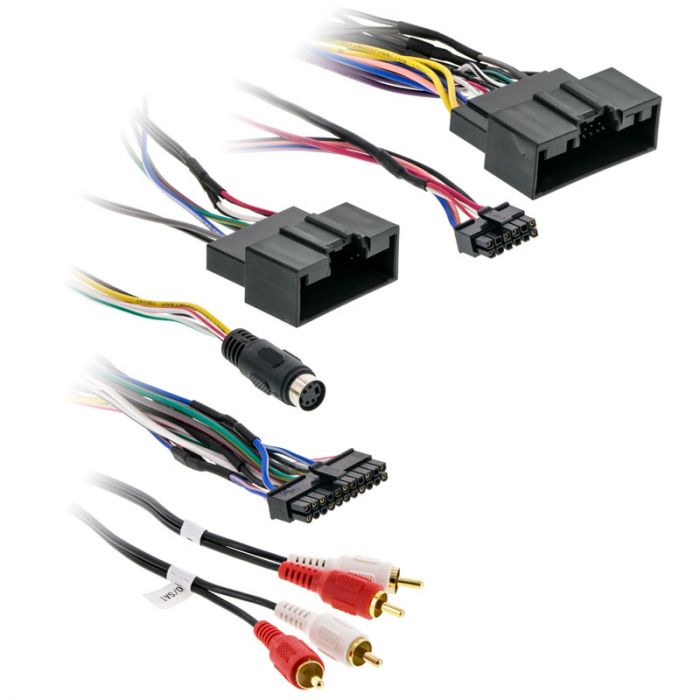

Axxess AX-ADFD02 Harness for 2011 - and Up Ford Vehicles
Features:
Allows the user to install the Axxess AX-ADBOX1 interface box
Allows the user to install the Axxess AX-ADBOX2 interface box
When used with the proper interface it facilitates the installation of an aftermarket car stereo
Provides plug-and-play installation to the factory radio connector
Color coded wires for easy installation
Provides navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
Includes a prewired ASWC-1 steering wheel interface connector
Retains and reintegrates factory rear seat entertainment system
Retains and reintegrates SYNC system
Retains and reintegrates satellite radio
Retains and reintegrates auxiliary audio input jacks
Connections:
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Blue – Antenna turn on
Blue/White – Amplifier turn on
White RSE/SYNC/SAT RCA - Left Auxiliary input
Red RSE/SYNC/SAT RCA - Right Auxiliary input
White RCA - Subwoofer connection
Red RCA - Center channel
Green/Purple – (+) Reverse trigger
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
White RCA - Left front audio
Gray RCA - Right front audio
Green RCA - Left rear audio
Purple RCA - Right rear audio
Compatible With:
Ford
2011 - and Up Fiesta
2012 - and Up Focus
2012 - and Up Explorer
More Information
Manufacturer
Axxess
Part Number
AX-ADFD02
Warranty
1 Year
Vehicle Year
2011, 2012, 2013, 2014, 2015, 2016
Vehicle Brand
Ford, Lincoln, Mercury
Vehicle Model
Multiple Models
UPC Code
086429275625
Return period
30 days
Exchange period
30 days
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
