Axxess AX-CH013-SWC 2004 - and Up Chrysler radio replacement CAN-BUS interface with steering wheel and navigation outputs

$139.99
In stock
SKU
AX-CH013-SWC

Key Features

  • Chrysler, Jeep, Mitsubishi, and Volkswagen complete radio replacement interface for plug-and-play installation of an aftermarket car radio
  • Interface is designed for non-amplified models, amplified models, or when bypassing a factory amplifier
  • Built in steering wheel control interface
  • Provides NAV outputs (parking brake, reverse, and speed sense)

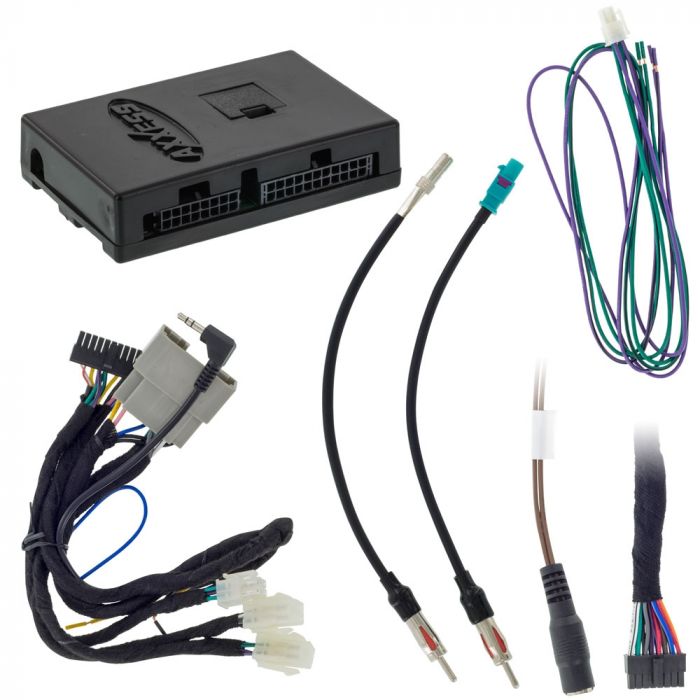

Unit includes: AX-CH013-SWC interface control box, LD-BX-CH3 harness, LD-BX-CH4 harness, 16-pin harness with stripped leads, 4-pin harness with stripped leads, Female 3.5mm connector with stripped leads, Antenna adapters (2)and Instruction manual

Axxess AX-CH013-SWC 2004 - and Up Chrysler radio replacement CAN-BUS interface with steering wheel and navigation outputs
    Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in both non-amplified and amplified audio systems
  • Retains audio controls on the steering wheel
  • Retains safety chimes (LD-BX-CH4 applications)
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • Built in steering wheel interface controller
  • High level speaker input
  • USB updatable
  • Retains balance and fade on non-amplified audio systems
  • Retains Blind Spot Detection (if equipped)
  • Includes antenna adapters for both generations of vehicles
  • Axxess AX-CH013-SWC 2004 - and Up Chrysler radio replacement CAN-BUS interface Instruction manual
Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange/White - Dash Light Dimmer/Illumination
  • Blue/White - Amplifier turn on
  • Light green - (-) Parking brake lead
  • Blue/Pink - VSS (Vehicle speed sensor)
  • Green/Purple - (+) Reverse trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
    Compatible Models (LD-BX-CH3 Harness)

    Chrysler
  • 2005 - 2007 300
  • 2007 Aspen
  • 2006 - 2010 PT Cruiser
    Dodge
  • 2007 - 2008 Caliber
  • 2006 - 2007 Charger
  • 2005 - 2007 Dakota
  • 2004 - 2007 Durango
  • 2005 - 2007 Magnum
  • 2006 - 2009 Ram 2500/3500
  • 2006 - 2008 Ram 1500
  • 2006 - 2010 Ram Chassis Cab
    Jeep
  • 2006 - 2007 Commander
  • 2007 - 2008 Compass
  • 2005 - 2007 Grand Cherokee
  • 2007 - 2008 Patriot
    Mitsubishi
  • 2006 - 2007 Raider
    Compatible Models (LD-BX-CH4 Harness)

    Chrysler
  • 2011 - 2014 200
  • 2008 - 2010 300
  • 2008 - 2009 Aspen
  • 2007 - 2010 Sebring
  • 2008 - Up Town and Country
    Dodge
  • 2008 - 2014 Avenger
  • 2009 - 2012 Caliber
  • 2008 - Up Grand Caravan
  • 2008 - 2014 Challenger
  • 2008 - 2010 Charger
  • 2008 - 2011 Dakota
  • 2008 - 2013 Durango
  • 2009 - 2010 Journey
  • 2008 - 2009 Magnum
  • 2007 - 2011 Nitro
  • 2010 - 2011 Ram 2500/3500
  • 2009 - 2011 Ram 1500
  • 2011 Ram Chassis Cab
    Jeep
  • 2008 - 2010 Commander
  • 2009 - Up Compass
  • 2008 - 2013 Grand Cherokee
  • 2008 - 2012 Liberty
  • 2009 - Up Patriot
  • 2007 - Up Wrangler
  • 2007 - Up Wrangler Unlimited
    Mitsubishi
  • 2008 - 2009 Raider
  • Ram
  • 2012 1500/2500/3500
  • 2012 Chassis Cab
  • 2012 - 2015 C/V Tradesman
    Volkswagen
  • 2009 - 2013 Routan
More Information
Manufacturer Axxess
Part Number AX-CH013-SWC
Integration Module Radio Replacement and Steering Wheel
Wiring harness function Replace Factory Radio
Steering Wheel Control Yes, Built in control
Speaker level inputs Yes
Warranty 1 Year
Vehicle Brand Dodge, Jeep, Mitsubishi, Ram, Volkswagen
UPC Code 086429329939
Return period 30 days
Exchange period 30 days
