Axxess AXAC-FD1 Multi Camera Interface for 2011 - and Up Ford vehicles
Axxess AXAC-FD1 Multi Camera Interface for 2011 - and Up Ford vehicles
Key Features
Use your factory Ford 4.2 inch / 6.5 inch / 8 inch screen to display a Multiple cameras with auto activation Easily add 3 additional cameras for a full 360° view 4 - RCA Audio video inputs for cameras Automatically switches to the backup camera input when the vehicle is shifted into reverse Plug-and-play installation for quick installation Allows navigation inputs and Multi camera while driving

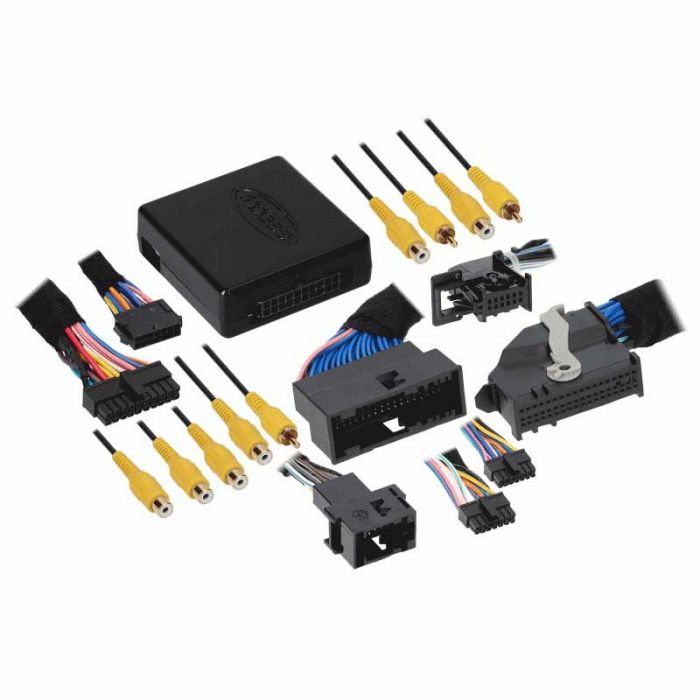

Unit Includes: Interface Control Box, Wiring Harnesses, RCA input harness, and Instruction manual
Axxess AXAC-FD1 Multi Camera Interface for 2011 - and Up Ford vehicles
Features:
Use your factory Ford 4.2 inch / 6.5 inch / 8 inch screen to display a Multiple cameras with auto activation
4.2 inch screen vehicle require AXAC-FDSTK harness (Sold separately) Easily add 3 additional cameras for a full 360° view
Enhance awareness of your surroundings by adding up to four cameras to eliminate blind spots
Plug-and-play installation for easy installation and removal
Compatible with aftermarket cameras
Full CAN-BUS operation for factory like performance and quality
Retain factory reverse camera or add aftermarket camera
Override factory reverse camera for multi-camera viewing
Automatically switches to the side cameras when turn signals are activated
4 - RCA camera video inputs
4 - Camera power outputs, 12 Vdc 500mA output
Assembled in the U.S.A.
Inputs and Outputs
4 - camera Input
Ford
2011 - and Up Edge
2013 - and Up F-150
2017 - and Up F-250
2017 - and Up F-350
2017 - and Up F-450
2017 - and Up F-550
2012 - 2019 Focus
2013 - and Up Fusion
2015 - and Up Mustang
2014 - 2019 Transit
2015 - 2018 Transit connect
2019 - and Up Ranger
More Information
Manufacturer
Axxess
Part Number
AXAC-FD1
VGA input
No - VGA input
HDMI input
No
Audio Video inputs
4 Video Input
Back up camera input
Yes
Front camera input
Yes
Auto on/off
Yes
Connector Type
RCA Cable
USB input
No
Warranty
1 Year
UPC Code
086429386772
Vehicle Year
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Vehicle Brand
Ford
Vehicle Model
Edge, F-150, F-250, F-350, F-450, F-550, Focus, Fusion, Mustang, Ranger, Transit, Transit Connect
Return period
30 days
Exchange period
30 days
