Axxess AX-TYAMP1 2001 - and Up Lexus / Toyota radio replacement interface with navigation outputs - (Amplified Audio)
$59.99
In stock
SKU
AX-TYAMP1
Expert Knowledge
Talk to a specialist
- Toyota complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in non-amplified audio systems
- Retains chimes

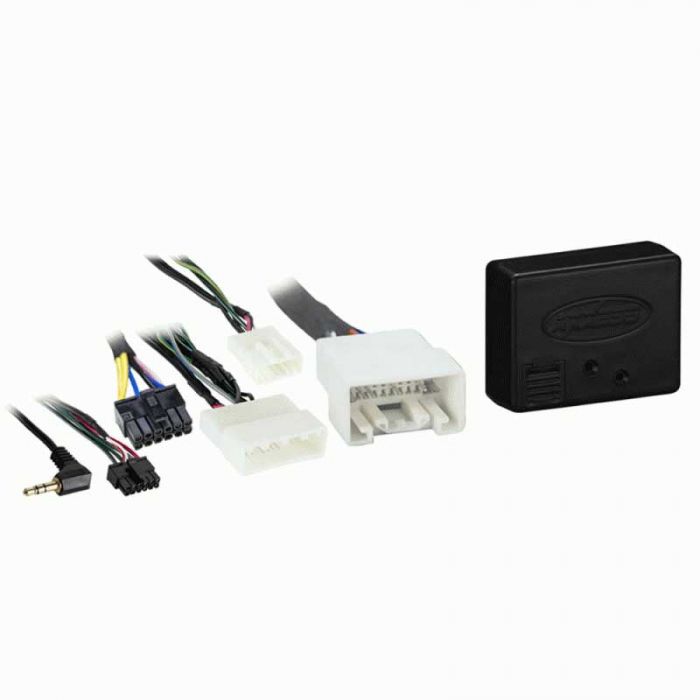

Unit includes: AX-TYAMP1 Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, and Instruction manual
Axxess AX-TYAMP1 2001 - and Up Lexus / Toyota radio replacement interface with navigation outputs - (Amplified Audio)
Axxess AX-TYAMP1 2001 - and Up Lexus / Toyota radio replacement interface with navigation outputs - (Amplified Audio)
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified audio systems
- Retains chimes
- Retains factory 3.5mm audio input
- ASWC-1 harness included (ASWC-1 not included)
- Interface is designed for non-amplified audio systems
- High level speaker input
- USB updatable
- Retains balance and fade
- Axxess AX-TYAMP1 2001 - and Up Lexus / Toyota radio replacement interface Instruction manual
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Blue - Power antenna turn on
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Fitments:
- 2002 - 2006 ES (With multi-disc changer)
- 2007 - 2012 ES
- 2001 - 2005 GS
- 2002 - 2005 IS
- 2001 - 2006 LS (Steering wheel control buttons can not be retained)
- 2004 - 2008 RX
- 2002 - 2010 SC (Require the ASWC-TOY-LEX (sold separately) instead of the ASWC-1 (sold separately) to retain steering wheel controls)
Lexus
- Toyota
- 2003 - 2013 4-Runner
- 2005 - 2010 Avalon
- 2011 - 2012
- 2004 - 2008 Solara
- 2012 - 2013 Camry (Without Navigation)
- 2007 - 2011 Camry
- 2003 - 2011 Corolla
- 2011 - 2014 FJ Cruiser
- 2008 - 2013 Highlander
- 2005 - 2012 Matrix
- 2012 - 2015 Prius (3rd Generation without navigation)
- 2012 - 2015 Prius (Plug in Hybrid without navigation)
- 2004 - 2011 Prius
- 2004 - 2014 Rav-4
- 2005 - 2012 Sequoia
- 2013 Sequoia (without Navigation)
- 2004 - 2014 Sienna
- 2005 - 2013 Tacoma
- 2006 - 2013 Tundra
- 2004 - 2005 Tundra Double Cab
- 2013 - 2014 Venza (with SD card based navigation)
- 2009 - 2012 Venza
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-TYAMP1 |
| Integration Module | Radio Replacement |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, requires external module |
| Warranty | 1 Year |
| Vehicle Year | 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 |
| Vehicle Brand | Lexus, Toyota |
| UPC Code | 086429330096 |
| Return period | 30 days |
| Exchange period | 30 days |
