Axxess AX-GMLAN44-SWC 2012 - 2016 GM radio replacement LAN-BUS interface with steering wheel and navigation outputs

Description

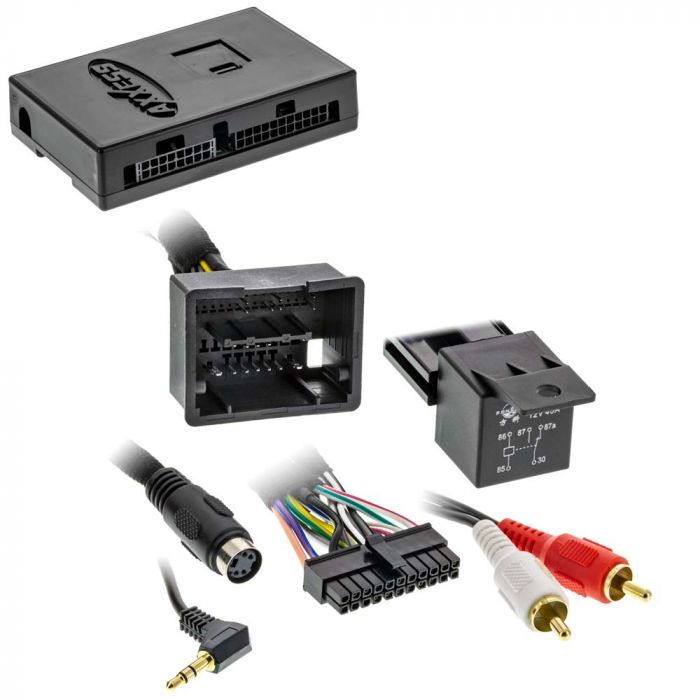

Unit includes: AX-GMLAN44-SWC interface, AX-GMLAN44-SWC harness, 16-pin harness with stripped leads, 4-pin to 4-pin resistor pad harness, Female 3.5mm connector with stripped leads and Instruction manual

Axxess AX-GMLAN44-SWC 2012 - 2016 GM radio replacement LAN-BUS interface with steering wheel and navigation outputs

Features:

Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Provides NAV outputs (parking brake, reverse, speed sense)
Retains chimes
Retains audio controls on the steering wheel
Retains OnStar / OE Bluetooth
Adjustable OnStar level
Retains the factory AUX-IN jack
Retains the factory backup camera
Retains RSE (rear seat entertainment)
Retains SAT (satellite radio)
Can be used in non-amplified, or analog/digital amplified models
Retains balance and fade (excluding digital amplified models)
Micro “B” USB updatable
Axxess AX-GMLAN44-SWC 2012 - 2016 GM radio replacement LAN-BUS interface with steering wheel and navigation outputs Instruction manual

Connections:

Yellow - 12V Constant
Red - 12V Accessory
Black - Ground
Orange/White - Dash Light Dimmer/Illumination
Blue/White - Amplifier turn on
Brown - Mute connection
Light green - (-) Parking brake lead
Blue/Pink - VSS (Vehicle speed sensor)
Black/Yellow - OnStar volume adjustment
White RCA - Left Auxiliary input
Red RCA - Right Auxiliary input
Green/Purple - (+) Reverse trigger
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe - Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe - Right Front Speaker (-)

Fitments:

Cadillac

2012 - 2014 Escalade
2012 - 2014 Escalade ESV
2012 - 2014 Escalade EXT

Chevrolet

2012 - 2013 Avalanche
2013 - 2015 Express (without factory navigation)
2013 - 2015 Malibu (with monochrome display)
2014 - 2016 Malibu Limited (with monochrome display)
2012 - 2013 Silverado 1500 (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital amplifier)
2014 - 2014 Silverado 2500 (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital amplifier)
2014 - 2014 Silverado 3500 (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital amplifier)
2012 - 2014 Tahoe (Only for models with NAV. These vehicles have a digital amp option. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO codes; Y91, STZ, UQS. If Y91, STZ or UQS is present, then the vehicle is equipped with a digital amplifier)
2015 - 2016 Trax

GMC

2013 - 2015 Savana (Only for models with NAV)
2012 - 2013 Sierra 1500 (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital amplifier)
2014 - 2014 Sierra 2500 (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital amplifier)
2014 - 2014 Sierra 3500 (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital amplifier)
2012 - 2014 Yukon (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO codes; Y91, STZ, UQS. If Y91, STZ or UQS is present, then the vehicle is equipped with a digital amplifier)
2012 - 2014 Yukon XL (Only for models with NAV. These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO codes; Y91, STZ, UQS. If Y91, STZ or UQS is present, then the vehicle is equipped with a digital amplifier)

Specifications

More Information
Manufacturer	Axxess
Part Number	AX-GMLAN44-SWC
Integration Module	Radio Replacement and Steering Wheel
Wiring harness function	Replace Factory Radio
Steering Wheel Control	Yes, Built in control
Speaker level inputs	Yes
Warranty	1 Year
Vehicle Year	2012, 2013, 2014, 2015, 2016
Vehicle Brand	Cadillac, Chevrolet, GMC
Return period	30 days
Exchange period	30 days
