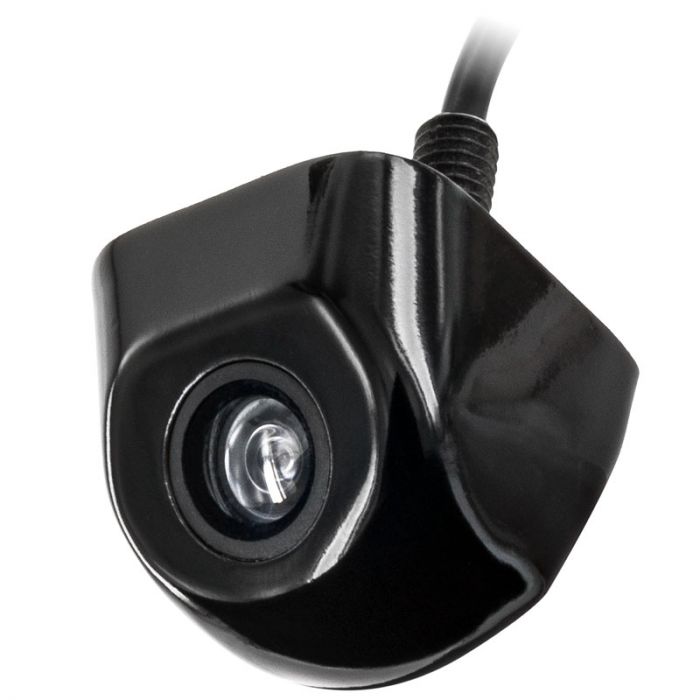

iBeam TE-LPGC Above License Plate Micro Reverse Backup Camera

$58.99
In stock
SKU
TE-LPGC

Key Features

  • Above License Plate Camera
  • Rearview use only
  • Built in three color parking grid lines
  • CMOS image sensor
  • 110° wide viewing angle
  • Black housing
Unit includes: Reverse back up camera, Wiring harness, Retaining nut, and Instruction manual

Beautifully small

Excellent picture quality can come from a very small camera, this micro camera can be mounted on any overhang; near the license plate even the rear view mirrors, you can mount this camera anywhere.

iBeam reputation

iBeam is very respected brand in car back up camera systems. The TE-LPGC back up camera offers iBeam quality in a package that is very versatile


iBeam TE-LPGC Above License Plate Micro Reverse Backup Camera
    Features:
  • Universal above license plate mount reverse back up camera
  • Built in three color parking grid lines for visual representation of distance to another vehicle or object
  • 110° wide viewing angle
  • 2.8 mm color CMOS sensor
  • IP67 rated
  • Resolution 480 TV lines
  • Active pixels: 648 (H) x 488 (V)
  • Image sensor: CMOS7070
  • Operating Temperature: -20° C - 70° C
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 100mA. Power supply 12V DC
  • .1 Lux light sensitivity
  • Black color housing
    Dimensions:
  • Dimension without screw: 1-1/16" (W) x 1-1/8" (D) x 1" (H)
  • Dimension with screw: 1-1/16" (W) x 1-1/8" (D) x 1-3/4" (H)
More Information
Manufacturer iBeam
Part Number TE-LPGC
Camera Sensor type CMOS
Back up camera type Top down Camera
Camera diameter 2.8mm
Viewing Angle 110 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Overall Height 1.00 inches
Overall Length 1.13 inches
Overall Width 1.06 inches
Warranty 1 Year
UPC Code 086429343133
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:iBeam TE-LPGC Above License Plate Micro Reverse Backup Camera
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?
This can be done by using a screen interface or add-a-camera harness.
