Axxess AXDI-MB1 Radio replacement interface for 2001 - 2018 Mercedes Vehicles

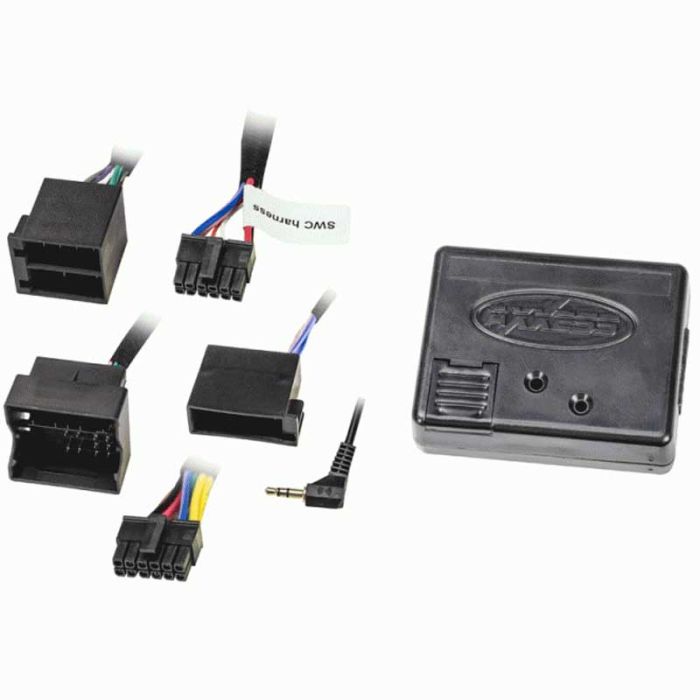

The Axxess AXDI-MB1 is a budget-friendly data bus interface compatible with select 2001-2018 Mercedes Benz vehicles. This essential interface allows for the smooth integration of aftermarket radios, making it easier to upgrade your sound system in these challenging vehicles. It provides output wires for aftermarket radios and incorporates color-coded connections for straightforward installation, allowing you to enhance your audio experience without cutting or modifying the OEM audio connections.

Interface Features:
• Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
• Provides accessory output for databus signals (12-volt 10-amp capable output)
• Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
• Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
• Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
• 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
• USB firmware updatable
• Retains balance and fader
• Instruction Manual - Axxess AXDI-MB1 Radio replacement interface for 2001 - 2018 Mercedes Vehicles

Connections:
• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Radio illumination (+)
• Blue – Antenna turn on
• Light Green – Parking brake
• Blue with Pink Stripe – VSS (Vehicle speed sensor)
• Green with Violet Stripe - Reverse trigger (+)
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Kit Components:
• A) AXDI-MB1 interface
• B) Power harness
• C) Speaker harness
• D) Instruction manual

Tools Required:
• Panel Removal tool
• Cutting tool
• Crimping tool
• Electrical tape
• Crimp connectors

Optional parts:

Wiring and Antenna Connections (Sold Separately)
• Metra 40-EU56 Car Antenna Adapter for Mercedes vehicles
• ASWC Steering wheel interface harness

Vehicle Applications:

Mercedes Benz (LD-AX-XSVI-MB1 Harness):

• 2001 - 2004 C-Class
• 2004 CLK-Class
• 2003 CLK-500
• 2003 CLK-55 AMG

Mercedes Benz (LD-AX-XSVI-MB2 Harness):
• 2005 - 2011 C-Class
• 2005 - 2009 CLK-Class
• 2010 - and Up E-Class
• 2007 - 2012 G-Class
• 2010 - 2012 GLK-Class
• 2006 - 2011 R-Class
• 2005 - 2011 SLK-Class
• 2010 - 2018 Sprinter
