Axxess AXDI-SP1 2007 - 2013 Sprinter Van Data Bus interface with Navigation outputs
$119.99
In stock
SKU
AXDI-SP1
Expert Knowledge
Talk to a specialist
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Prewired for ASWC steering wheel interface

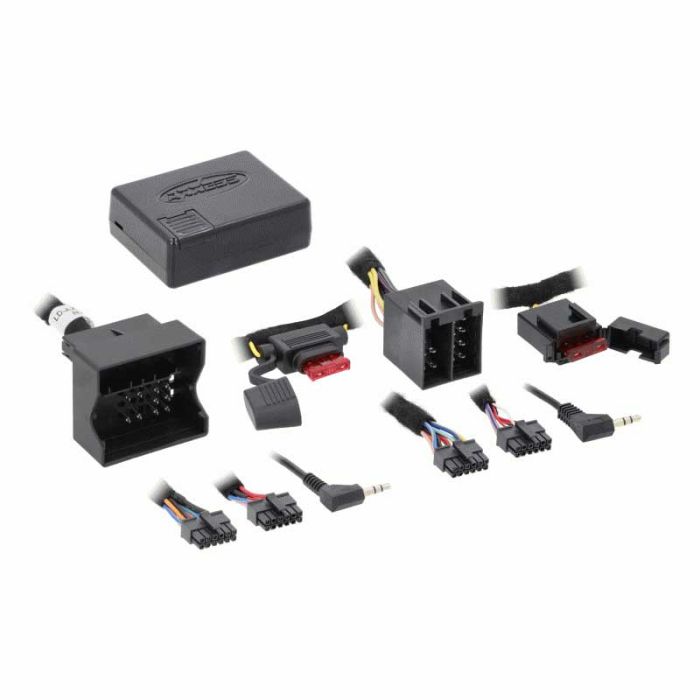

Unit includes: A) Interface, B) Power harness, C) Speaker harness, and Instruction manual
Axxess AXDI-SP1 2007 - 2013 Sprinter Van Data Bus interface with Navigation outputs
Axxess AXDI-SP1 2007 - 2013 Sprinter Van Data Bus interface with Navigation outputs
-
Interface Features:
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
- Instruction Manual - Metra AXDI-SP1 2007 - 2013 Sprinter Van Radio Replacement Interface
-
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Radio illumination (+)
- Blue – Antenna turn on
- Light Green – Parking brake
- Blue with Pink Stripe – VSS (Vehicle speed sensor)
- Green with Violet Stripe - Reverse trigger (+)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
-
Kit Components:
- A) AXDI-SP1 interface
- B) Power harness
- C) Speaker harness
- D) Instruction manual
-
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
-
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-vw12 Sprinter Van Antenna adapter
- Metra 99-6512 Car Stereo Dash Kit for Sprinter vans
- ASWC Steering wheel interface harness
-
Vehicle Applications:
-
Dodge:
- 2007 - 2007 Sprinter
- 2008 - 2009 Sprinter (Sound 5 radio)
-
Mercedes:
- 2010 - 2013 Sprinter (Sound 5 radio)
-
Freightliner:
- 2007 - 2007 Sprinter
- 2008 - 2013 Sprinter (Sound 5 radio)
| Manufacturer | Axxess |
|---|---|
| Part Number | AXDI-SP1 |
| Integration Module | Radio Replacement |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, requires external module |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Year | 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
| Vehicle Brand | Dodge, Freightliner, Mercedes Benz |
| Vehicle Model | Sprinter |
| UPC Code | 086429433018 |
| Return period | 30 days |
| Exchange period | 30 days |
