Axxess AXTC-MZ1 2007 - 2016 Mazda radio replacement interface with steering wheel and navigation outputs
$159.99
In stock
SKU
AXTC-MZ1
Expert Knowledge
Talk to a specialist
- Mazda complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Designed for amplified and non-amplified models, or when bypassing a factory amp
- Built in steering wheel control interface
- Provides NAV outputs (parking brake, reverse, and speed sense)
- Ability to dual assign steering wheel control buttons
- Retains the ability to set the clock via a service harness

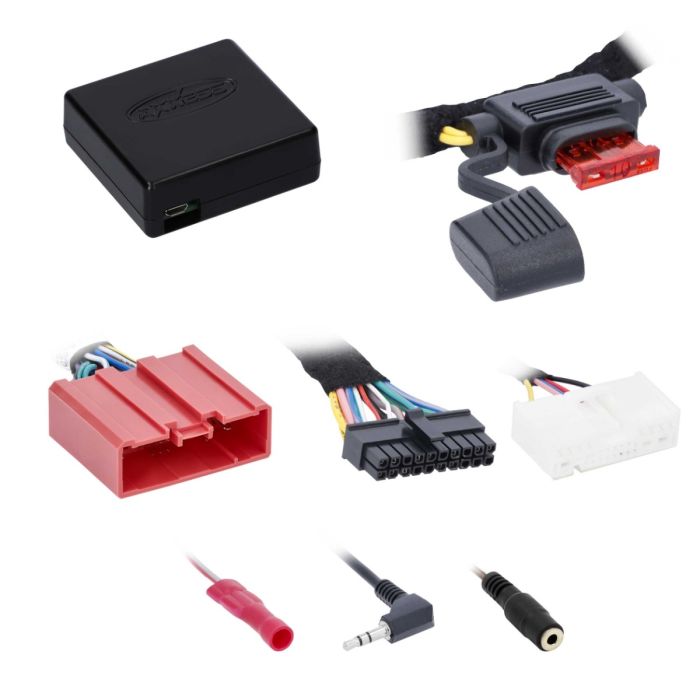

Unit includes: AXTC-MZ1 control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, and Instruction manual
Axxess AXTC-MZ1 2007 - 2016 Mazda radio replacement interface with steering wheel and navigation outputs
Axxess AXTC-MZ1 2007 - 2016 Mazda radio replacement interface with steering wheel and navigation outputs
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Designed for amplified and non-amplified models, or when bypassing a factory amp
- Retains the ability to set the clock with a service harness
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Integrated steering wheel control with direct plug in to aftermarket stereo
- Ability to dual assign steering wheel control buttons
- High level speaker input
- USB updatable
- Retains balance and fade (excludes amplified models)
- Axxess AXTC-MZ1 2007 - 2016 Mazda radio replacement interface Instruction manual
-
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Mazda
- 2013 - 2016 Mazda CX-5
- 2007 - 2012 CX-7
- 2007 - 2015 CX-9
| Manufacturer | Axxess |
|---|---|
| Part Number | AXTC-MZ1 |
| Integration Module | Radio Replacement and Steering Wheel |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, Built in control |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Year | 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 |
| Vehicle Brand | Mazda |
| UPC Code | 086429440566 |
| Return period | 30 days |
| Exchange period | 30 days |
