Boss Audio BE7ACPR 7" Capacitive Digital Media Receiver with Apple Carplay, Android Auto and Backup Camera
- Double Digital Media Receiver
- 7" Touchscreen Display
- Built in Bluetooth for phone calls and audio streaming
- Supports Apple Carplay
- Navigation via Apple Maps, Google Maps or Waze
- No Disc Slot
- Included License Plate Backup Camera
- Built in AM/FM radio tuner
- Dual Rear USB Inputs
- Steering wheel control compatible

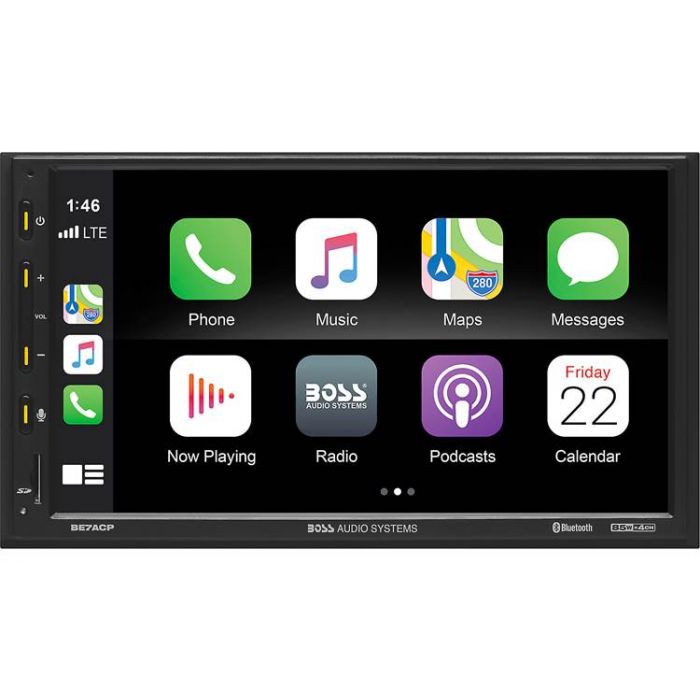

Boss Audio BE7ACP 7" Capacitive Digital Media Receiver with Apple Carplay, Android Auto and Backup Camera
- Features
- Double DIN Digital Media Receiver
- 7" Touchscreen Display
- Supports Apple Carplay (USB Connection)
- Apple Carplay make it easier than ever to use your smartphone's helpful features on the road
- Included License Plate Backup Camera
- Dual USB
- SD Input
- No Disc Slot
- Siri Hands-Free Compatible
- Google Assistant Hands-Free Compatible
- High power 4-channel amplifier: 4 channels x 80 watts
- Built in Bluetooth with A2DP, AVRCP, HFP, PBAP for wireless audio streaming and wireless phone operation
- Backup camera input
- Front camera input
- LCD screen Resolution: 800 x 480 Pixels
- Dimmer and brightness control
- 5 Color Selectable Touch Key Illumination
- Steering wheel control input
- Audio Features
- 7-band parametric equalizer with 8 preset and custom options (Off / Custom / Jazz / Hip-Hop / Pop / Rock / R&B)
- Low-Pass filter with variable crossover frequencies
- Subwoofer gain
- Volume Offset
- Loudness control
- Media Playback
- USB Thumb Drive up to 32GB
- Compatible audio codecs: WAV, MP3, WMA, APE, OGG and FLAC
- Compatible video codecs: AVI, OGM, MKV, MOV and WMV
- Compatible picture codecs: JPEG, PNG and BMP
- ID3 tag information, display artist and song information
- Supports up 32 GB flash drives
- Tuner features:
- Includes Radio AM & FM tuner with 10 FM / 10 AM preset stations memory
- RDSB (Radio data service) Tuner
- RDS Tuner
- Inputs and Outputs
- 3 - 2V preamp outputs for (Front, Rear and Subwoofer)
- 1 - Rear A/V Input
- 1 - Rear Input for Rear Camera
- 1 - Rear Input for Front Camera
- 1 - Set of Rear Auxiliary Audio Inputs
- 2 - Rear USB inputs (Apple Carplay and Android Auto or for USB drives)
- 1 - External Microphone for HFC
- 1 - Radio Antenna
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Apple Car Play features:
- Wireless Bluetooth connection or wired with USB
- Navigation via Apple Maps, Google Maps or Waze
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Siri Assistant
- Place and receive hands-free text messages using Siri Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Bluetooth
- Integral Bluetooth 4.0 technology facilitates convenient hands-free phone calls and audio streaming
- A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP 1.0: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 4.0 certified
- Siri Eyes Free voice support
- Dimensions:
- Dimensions: 7"W x 6-1/2"D x 3-15/16"H
Manufacturer | Boss Audio |
---|---|
Part Number | BE7ACP |
Chassis Size | Double DIN |
Illumination color | Full Color |
Disc Playback | No |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | No |
Radio Data Service - RDS | Yes |
Front mounted auxiliary input | None |
Audio Video inputs | 1 Video Input |
USB input | Dual USB |
SD Card input | Yes, SD Card |
Audio Formats | AAC, DSD, FLAC, Mpeg-3, WAV, WMA |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 4 volts |
Steering Wheel Control | Yes, requires external module |
Built in Crossover | High-pass, Low-pass |
Warranty | 1 Year |
UPC Code | 791489128940 |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
