DISCONTINUED - JVC CS-DR6940 6 x 9 inch 4 - way Car Speakers
$41.99
Out of stock
SKU
CS-DR6940
Expert Knowledge
Talk to a specialist
Unit Includes: 6 x 9 inch Speakers, (2) Woofer Grilles, (2) 1 inch tweeters, (2) Mounting cups, (2) Mounting pods, Mounting hardware, Wiring leads, Warranty Card, and Instruction manual

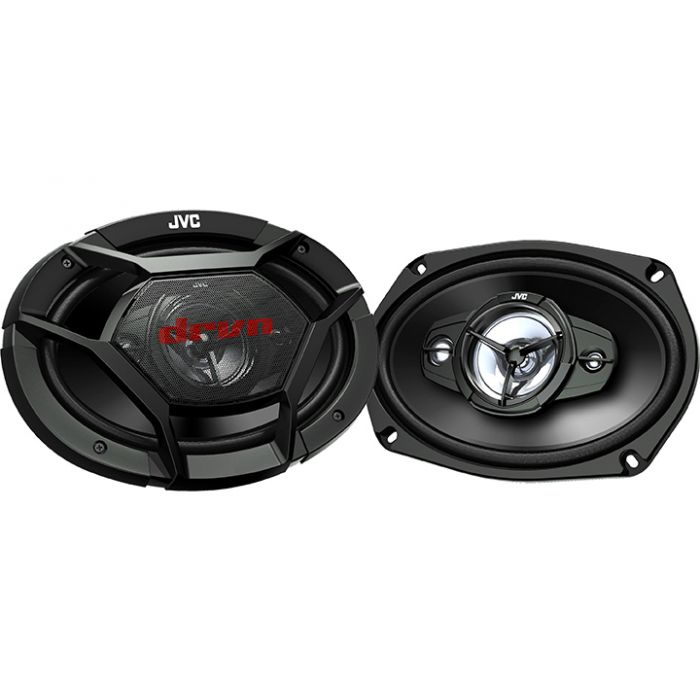

JVC CS-DR6940 6 x 9 inch 4 - way Car Speakers
JVC CS-DR6940 6 x 9 inch 4 - way Car Speakers
-
Features
- Car coaxial speaker system for easy installation in factory speaker location
- High quality sound with individual tweeter and woofer
- 1 inch Poly-Ether Imide cone tweeter with Neodimium magnet with for crisp highs
- In-line crossover network for a compact installation without a bulky external crossover
- New shallower mount increasing vehicle and panel compatibillity with minimal tweeter protrusion
- Carbon Mica cone is robust and light weight providing clear undistorted sound
- Hybrid rubber coated surround provides excellent transient response and high efficiency with improvide sonic quality
- 6 x 9 inch Injection PP woofer cone
- Hybrid Rubber coated cloth woofer surround
- Black stamped steel woofer basket
- Ferrite woofer magnet
- 1" Poly-Ether Imide dome tweeter
- Neodymium tweeter magnet
- Woofer mount depth: 3.1 (top)/ 3.4 (bottom) inches
- Crossover frequency: 4.9 kHz
-
Quick Specs
- Impedance: 4 ohms
- Sensitivity: 86 dB
- Frequency Response: 56 Hz - 21 KHz
-
Power Handling RMS
- 90 watts per speaker
-
Power Handling Max
- 550 watts per pair
-
Dimensions
- Cutout Diameter:
- Mounting Depth: 3.1 (top)/ 3.4 (bottom)
| Manufacturer | JVC |
|---|---|
| Part Number | CS-DR6940 |
| Speaker Size | 6 x 9 inch |
| Speaker system type | 4 - way |
| Frequency Response | 56 Hz - 21 KHz |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Power Handling RMS | 90 Watts |
| Power Handling Peak | 550 Watts |
| Sensitivity | 86 dB |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 046838073410 |
| Return period | 30 days |
| Exchange period | 30 days |
