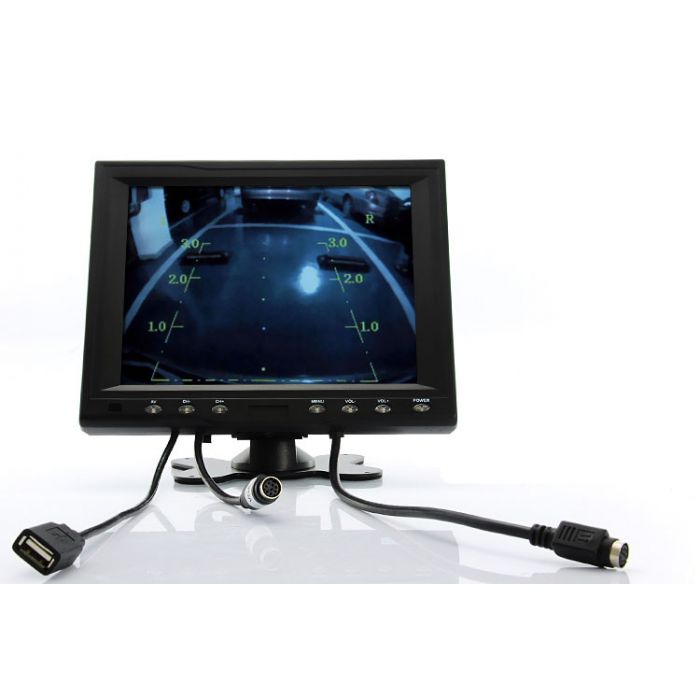

Quality Mobile Video CVFQ-E166 8 Inch Touchscreen LCD Monitor with VGA, RCA

Quality Mobile Video CVFQ-E166 8 Inch Touchscreen LCD Monitor with VGA, RCA

Quality Mobile Video CVFQ-E166 8 Inch Touchscreen LCD Monitor with VGA, AV, and Mounting Stand

More Views

Quality Mobile Video
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video CVFQ-E166 Product Highlights

  • VGA Input
  • One Audio Input
  • Touchscreen
  • Pedestal Mount Included
  • Dual Video Input
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: LCD monitor, Power adapter, Cigarette lighter cord, VGA cable, RCA cable, USB cable, Remote Control, Driver disk, Stylus and Mounting Accessories

Quality Mobile Video CVFQ-E1166 8 Inch Touchscreen LCD Monitor with VGA, AV, and Mounting Stand
  • Main Function: 8 Inch LCD Touchscreen Monitor
  • Screen: 8 Inch TFT LCD Touchscreen (1440000 Pixels)
  • Native Screen Resolution: 800 x 600 (VGA)
  • Brightness: 250cd/m2
  • Contrast: 500:1
  • Viewing Angle: 50 Degrees/50 Degrees; 50 Degrees/50 Degrees (Left/Right; Up/Down)
  • Video Signal Input: 0.7 - 1.4Vp-p/75 Ohms
  • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
  • Speaker: >2.5W x 2
  • Color System: PAL-4.43, NTSC-3.58
  • Power Source: DC9-15V
  • Signal Input: PC, VGA, AV1, AV2, HDMI 1.2
  • Display Ratio: 16:9, 4:3
  • Power Consumption: <8w
  • Working Temperature: -20 to +55 °C
  • Storage Temperature: -30 to +65 °C
  • Input: VGA
  • Input: Audio Video 1 with mono sound
  • Input: Video 2 with no sound (for rear view camera)
  • Supported Operating Systems for Touchscreen Software: Windows 98SE, XP, Vista, Windows 7, Linux, MAC
  • Certification: CE, FCC, RoHS
  • Dimensions: (8 1/8"(W) x 6 1/2" (H) x 1 1/4" (D)) W 205mm x L 165mm x D 30mm

  • Touchscreen Monitor Internal Menu Specs
  • Color: Brightness, Contrast, Color Temperature
  • Adjust: Auto Config, H Position, V Position, Phase, Clock
  • OSD: H position, V Position, OSD Time Out, Transparent
  • OSD: Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian
  • Settings: Reset, Display Ratio, LR, UD
  • Sound: Volume Control

  • User friendly and Low Energy Consumption
  • Mounting plate has a foam rubber adhesive bottom so you can stick it on any flat surface or even a work desk.
  • If you need to make use of the LCD touch screen monitor somewhere else, is can be easily detached from the base and taken out of the car.
  • Also a great tool for location and studio filming. It provides flexible viewing in a size that is easy to mount on top of cameras or hold in your hands.
  • 4, 9 and 25 point touchscreen calibration
  • Detachable & Adhesive stand, can be placed on dashboard

Technical Specifications

Manufacturer Quality Mobile Video
Part Number CVFQ-E166
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 600
Widescreen Display 4:3 Normal Aspect Ratio
LCD back light type CCFL
LCD Screen Brightness 250 Nit
Swivel Screen No
Touchscreen No
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input Yes - VGA input
Audio Video inputs 2 Video Inputs, 1 Audio input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring N/A
Housing material No
Slide track on back Yes
Mounting thread for stand mount No
Stand Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included Yes
Operation Voltage 12 - 15 Volt DC
Ac Adapter included Yes
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code No

Write Your Own Review

You're reviewing: Quality Mobile Video CVFQ-E166 8 Inch Touchscreen LCD Monitor with VGA, RCA

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Quality Mobile Video
Ships Free!
Your Price: $179.99
$0.00 Tax Outside CA
Item sku:CVFQ-E166
Availability:In stock
Free shipping on all orders over $99!
