QMV 12VTHR1 12 VDC SPDT Temperature Controlled Latching relay

$9.99
In stock
SKU
12VTHR1

Key Features

  • Fully latching relay with on board temperature controller and indicator LED's
  • Remote temperature lead with 2 foot cable
  • Sensor operating temperature range: - 4° F to 212°F or
  • 10 amp / 15 amp rated contacts
  • SDST - Single pole Dual throw
Unit includes: 12 volt temperature controlled latching relay

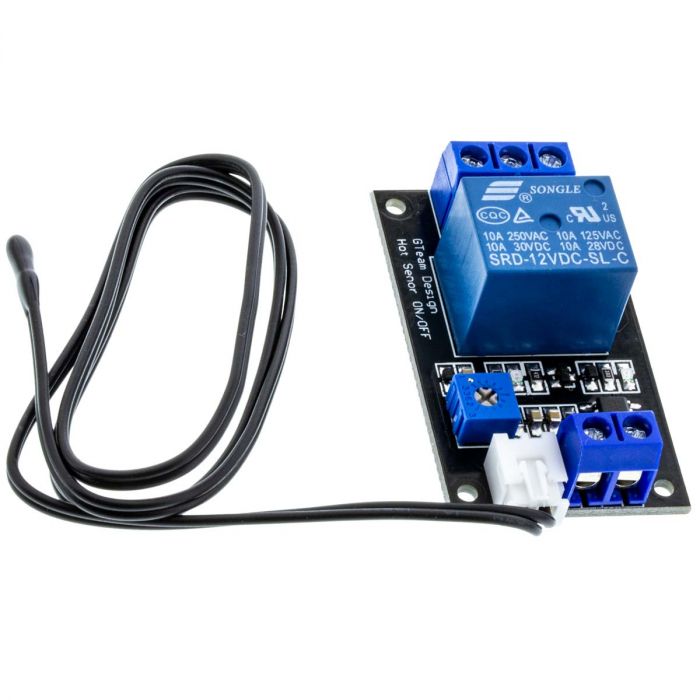

QMV 12VTHR1 12 VDC SPDT Temperature Controlled Latching relay

The QMV 12VTHR1 is a very cool relay. Have you ever wanted to have something turn on based on a particular temperature? The 12VTHR1 relay is just the relay for you. This relay is a latching relay with adjustable temperature control allows you to control any device and set the temperature threshold. This relay is perfect for a variety of things such as fan turn on or off. It utilizes mini relay with single pole dual throw contacts. It easily switches 10 amps of current and peaks of 15 amps.



    Features:
  • Fully latching relay with on board temperature controller and indicator LED's
  • Circuit board design with dual indicator LED's
  • Remote temperature lead with 2 foot cable
  • Requires a minimum of 9 volts to function
  • Can be used as a turn on or turn off depending on the single pole dual throw design
  • Latches when temperature threshold is reached
  • Latch releases until temperature is below threshold
  • 10 amp / 15 amp rated contacts
  • SPDT - Single pole Dual throw
  • 12 Vdc rated coil with minimum 7 volt to trigger
  • Power consumption (idle) @ 12Vdc 10 mA
  • Power consumption (latched) @ 12Vdc 43 mA
  • Screw terminals for easy connections up to 16 gauge wire
  • Sensor operating temperature range: - 20° C to 100°C
  • Sensor operating temperature range: - 4° F to 212°F
  • Dimensions 1-1/4" (W) x 2-1/4" (L) x 15/16" (H) with terminals
    Contact configuration:
  • DC (-) - Ground all-time, grounds the circuit on the relay
  • DC (+) - 12 volt positive, powers the circuit on the relay
  • COM - Common latching relay connection (Can be positive or negative depending on your need)
  • NO - Normally open contact (Connects to common when relay latches)
  • NC - Normally closed contact (Connects to common when relay is un-energized or at rest)
More Information
Manufacturer Quality Mobile Video
Part Number 12VTHR1
Operation Voltage 8 - 15 Volt DC
Relay type Temperature Relay
Current capacity 15 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type No Tab
Waterproof ingress protection None
Warranty 1 Year
Return period 30 days
Exchange period 30 days
