Quality Mobile Video Clarus TOP-SS-CVABR-C255 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand

Quality Mobile Video Clarus TOP-SS-CVABR-C255 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand

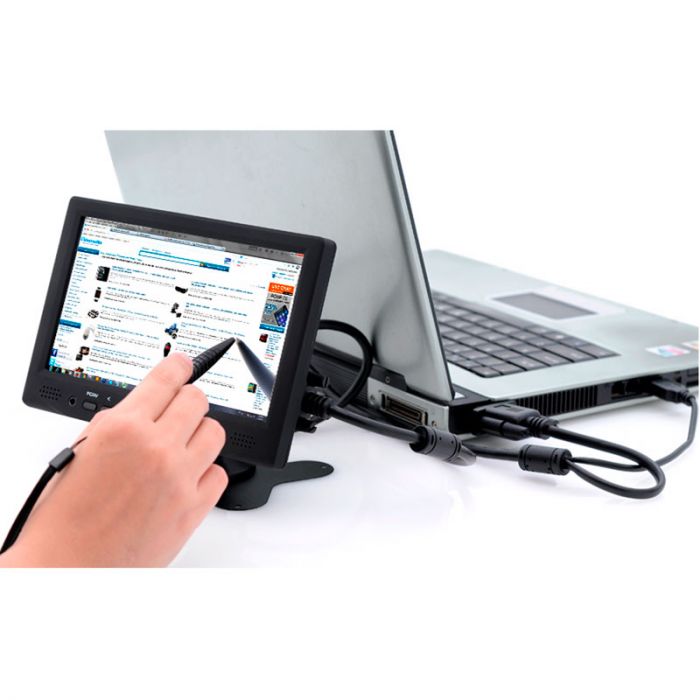

Quality Mobile Video Clarus TOP-SS-CVABR-C255 7 Inch HDMi Monitor - Connected to a computer

More Views

Quality Mobile Video
Ships Free!

Overall Rating 3 (Based on 1 reviews)

Quality Mobile Video TOP-SS-CVABR-C255 Product Highlights

  • 7 inch Touchscreen Monitor
  • HDMI input
  • VGA input
  • USB Touchscreen with drivers
  • Dual RCA Video Inputs
  • Cigarette Lighter Included
  • 110 / 220 VAC power adapter included
  • Fan Mount Included
  • 6 foot HDMI cable
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 7 inch LCD monitor, Pedestal stand, Remote Control, Stylus and Connectors

Quality Mobile Video CVABR-C255 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand

  • 7 inch resistive touchscreen monitor
  • HDMI input
  • Accepts up to 1080p input signal
  • 2 AV video inputs
  • Comes with all cables & mounting hardware
  • AV input can work with rear view cameras and over devices in your CAR!
  • Low Energy Consumption under 500ma
  • Can also be used as a tablet PC
  • 4, 9 and 25 point touchscreen calibration
  • Detachable & Adhesive stand, can be placed on your car's dashboard
  • Headphone jack

Touchscreen Monitor Internal Menu Specs
  • Color: Brightness, Contrast, Color Temperature
  • Adjust: Auto Config, H Position, V Position, Phase, Clock
  • OSD: H position, V Position, OSD Time Out, Transparent
  • OSD: Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian
  • Settings: Reset, Display Ratio, LR, UD
  • Sound: Volume Control

  • Native Screen Resolution: 800 x 480 (VGA) /
  • Supported Display Resolution: 640x480, 800x600, 1024x768, 1280x1024, 1920x1200 RGB
  • Brightness: 450cd/m2 (without touchscreen)
  • Contrast: 500:1
  • Viewing Angle: 70 degrees /70 degrees , 50 degrees /60 degrees (L/R, U/D)
  • Video Signal Input: 0.7 - 1.4Vp-p/75O
  • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
  • Speaker: 250mW/7O
  • Color System: PAL-4.43, NTSC-3.57
  • Power Source: DC9-15V
  • Signal Input: PC, VGA, AV1, AV2, HDMI 1.2
  • Display Ratio: 16:9, 4:3
  • Power Requirements: +5VDC ( Maximum 100mA, typical 70mA, 50mV peak to peak maximum ripple)
  • Operating temperature: 0 to 50 Degrees Celsius
  • USB 2.0
  • Response time Resistive: Max. 35 ms
  • Input: VGA
  • Input: AV1 with mono sound
  • Input: AV2 no sound (for rear view camera)
  • Input: HDMI
  • Remote Controller: Yes
  • Supported Operating Systems for Touchscreen Software: Windows 97SE, XP, Vista, Windows 7, Linux, MAC
  • Certification: CE, FCC, RoHS
  • Dimensions: W:209 x L:145 x D:35 (mm)
  • Bracket: W:95 x L:140 x D:32 (mm)

  • 25 point calibration
  • Advanced Feature: Support monitor / display rotation
  • Advanced Feature: Support multiple monitor / display
  • Advanced Feature: Support QVGA and Half-VGA function
  • Advanced Feature: Support edge compensation
  • Advanced Feature: Support constant touch
  • Controller Setting: Support multiple controllers
  • Controller Setting: Dynamical add / remove controllers
  • Controller Setting: Change Controller interface without reboot
  • Mouse: Emulator 1 - Right / Left button emulation
  • Mouse: Normal / Click on touch / Click on release mode
  • Mouse: Auto right button
  • Sound Notification: Sound option (No Sound / Touch Down / Lift Up)
  • Sound Notification: Frequency adjustment
  • Sound Notification: Duration adjustment
  • Double Click: Configurable double click speed and Configurable double click area
  • OS support 1: Windows 95 / 98 / ME / NT4 / 2000 / XP / Windows 7
  • OS support 1: Windows XP Tablet PC Edition: Windows CE 2.12 / 3.0 / .NET
  • OS support 1: Linux ( RedHat / Fedora / Mandrake /Suse / YellowDog )
  • OS support 1: iMac. OS9.X / OSX
  • OS support 1: MS-DOS
  • Support display resolution: 320x200, 640x200, 640x350, 640x480, 800x600, 1024x768 and 1280x1024

Package Contents for Model CVABR-C255
  • 7 inch Touchscreen Monitor
  • User Manual - English
  • Remote Control
  • Car Cigar Lighter Power Adapter
  • SKS Cable (USB Cable, AV 9PIN VGA)
  • Driver CD
  • Stylus / Touch Pen
  • Stand
  • Stand Sticky Pad
  • Mounting Frame
  • Power Adapter (100-240v)

Technical Specifications

Manufacturer Quality Mobile Video
Part Number TOP-SS-CVABR-C255
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 450 Nit
Swivel Screen No
Touchscreen Yes
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack Yes
Built in FM Modulator No
Built in Speakers Yes
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 2 Video Inputs, 1 Audio input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input Yes
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included Yes
Operation Voltage 12 - 15 Volt DC
Ac Adapter included Yes
Headrest Shroud included Yes
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 90 days
UPC Code No

Customer Reviews

cannot use.
Review by
Install (5 star for easy)
Cannot use power adapter that shipped with device not for USA, never receive replacement. (Posted on 7/28/2014)

Write Your Own Review

You're reviewing: Quality Mobile Video Clarus TOP-SS-CVABR-C255 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Quality Mobile Video
Ships Free!
Your Price: $149.99
$0.00 Tax Outside CA
Item sku:TOP-SS-CVABR-C255
Availability: Back-Ordered
Free shipping on all orders over $50!
  - Shipping options
    Quantity Discounts
  • Buy 4 for $144.99 each and save 4%
  • Buy 10 for $141.99 each and save 6%
  • Buy 25 for $137.99 each and save 9%
