Axxess GMOS-LAN-08 OnStar Interface for 2012 - 2016 Cadillac, Chevrolet and GMC Vehicles

$129.99
In stock
SKU
GMOS-LAN-08

Key Features

  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in non-amplified audio systems
  • Retains chimes
  • Retains factory auxiliary input
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)

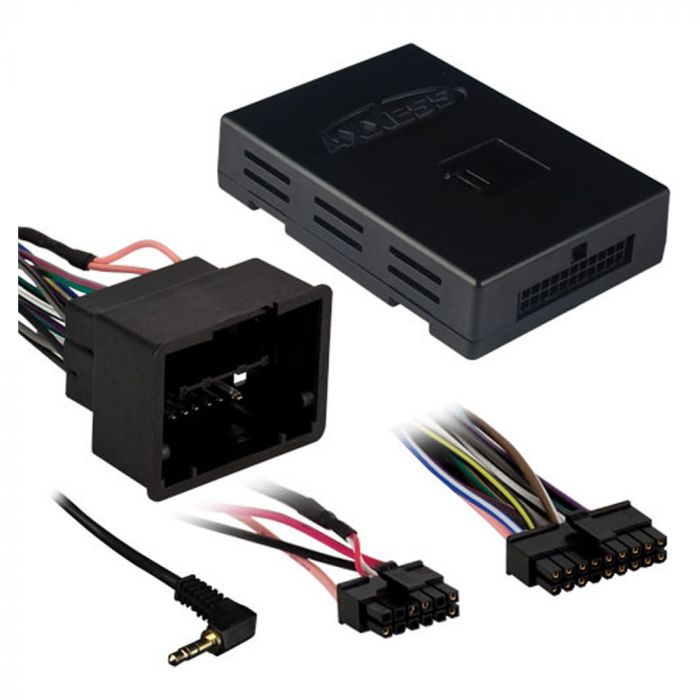

Unit includes: GMOS-LAN-08 Interface control box, 16 pin wire harness, GM harness, and Instruction manual

Axxess GMOS-LAN-08 OnStar Interface for 2012 - 2016 Cadillac, Chevrolet and GMC Vehicles

The GMOS-LAN-08 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM vehicle and OnStar system. The GMOS-LAN-08 is designed for 2012 - 2016 Cadillac, Chevrolet and GMC vehicles that use the GMLAN data bus system. The interface retains full functionality of the OnStar system as well as all safety and warning chimes.

The GMOS-LAN-08 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting chime and OnStar volumes as well. In addition to these features, the GMOS-LAN-08 now has the required outputs for the installation of a navigation radio.



Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in non-amplified audio systems or when bypassing a factory amp
  • Retains chimes
  • Retains factory auxiliary input
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • ASWC-1 harness included (ASWC-1 not included)
  • Retains OnStar and OE Bluetooth if equipped
  • Adjustable volume for chimes and OnStar
  • High level speaker input
  • USB updatable
  • Retains balance and fade
  • Installation instructions: Axxess GMOS-LAN-08 OnStar Interface instruction manual
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange/White – Dash Light Dimmer/Illumination
  • Blue/White – Amplifier turn on
  • Brown - Mute connection
  • Light green – (-) Parking brake lead
  • Blue/Pink – VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple – (+) Reverse trigger
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
      Fitments:

      Cadillac:
    • 2012 - 2014 Escalade (Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp)
    • 2012 - 2014 Escalade ESV (Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp)
    • 2012 - 2014 Escalade EXT (Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp)
      Chevrolet:
    • 2012 - 2013 Avalanche (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2013 - 2015 Express (Must be equipped with factory navigation)
    • 2013 - 2016 Malibu (Must be equipped with single color, monochrome display. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp)
    • 2012 - 2013 Silverado 1500 (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2014 - 2014 Silverado 2500 (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2014 - 2014 Silverado 3500 (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2012 - 2014 Suburban (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2012 - 2014 Tahoe (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2015 - 2016 Trax (Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
      GMC
    • 2013 - 2015 Savana (Must be equipped with factory navigation)
    • 2012 - 2013 Sierra 1500 (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2014 - 2014 Sierra 2500 (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2014 - 2014 Sierra 3500 (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2012 - 2014 Yukon (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
    • 2012 - 2014 Yukon XL (Must be equipped with factory navigation. Use this interface only to bypass the factory amplifier. Either use the GMOS-LAN-07 interface to retain the factory amp.)
More Information
Manufacturer Axxess
Part Number GMOS-LAN-08
Integration Module Radio Replacement
Wiring harness function Replace Factory Radio
Steering Wheel Control Yes, requires external module
Speaker level inputs Yes
Warranty 1 Year
Vehicle Brand Cadillac, Chevrolet, GMC
Vehicle Model Avalanche, E-Class, Escalade, Escalade ESV, Escalade EXT, Express, Malibu, Savana, Sierra, Silverado, Tahoe, Trax, Yukon, Yukon XL
UPC Code 086429281909
Return period 30 days
Exchange period 30 days
