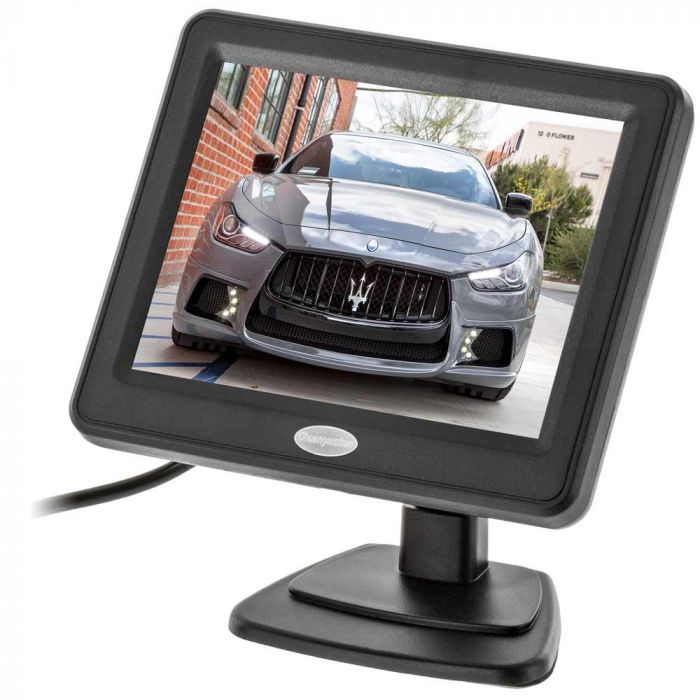

Clarus HR3501 3.5 inch Universal LCD Monitor with 2 Video Inputs

In stock

Key Features

  • 3.5" Color TFT Universal Monitor
  • Resolution: 480 x 272
  • Elegant painted black finish
  • Pedestal stand with thumb screw angle adjustments
  • Automatic Turn on when switching to reverse for backup camera
  • Two video inputs
  • 12 volt trigger for auto turn on
Unit includes: 4.3 inch LCD display, DC power adapter, Suction cup mount, adhesive tap bracket, and Instruction manual

Clarus HR3501 3.5 inch Universal LCD Monitor with 2 Video Inputs
  • 3.5'' Color TFT Universal Monitor
  • Resolution: 480 x 272
  • Display: 16:9 format
  • 2-channel video input
  • Includes suction cup mount track slide on
  • Supports automatically startup detection when reserving
  • Can connect with reversing camera, DVD, VCD, etc.
  • Display black screen when has no video signal input
  • Support full color LED backlight display
  • NTSC / PAL auto switching
  • Power Supply: 12Vdc
    Inputs and Outputs:
  • 2 - RCA AV inputs
  • 1 - 12 volt trigger for automatic power on and camera select
    Monitor dimensions
  • Dimensions: 3-5/8" (W) x 3-1/2" (H) x 3/4" (D)
  • Viewable area: 2-7/8" (W) x 2-1/8" (H)
  • Working Temperature: -20 to 60° C
  • Environment humidity: 10%-90%
  • Working voltage: DC 12V-24V
  • Housing: ABS Plastic
More Information
Manufacturer Quality Mobile Video
Part Number HR3501
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 272
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Headphone Jack No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 2 Audio Video Inputs
Audio Video Outputs None
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Built in Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Auto video sense trigger
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12-15 Volt DC
Ac Adapter included No
Wireless Remote Control No
Monitor Color Black
Color Black
Overall Height 3.50 inches
Overall Length 0.75 inches
Overall Width 3.63 inches
Warranty 1 Year
Return period 30 days
Exchange period 30 days
