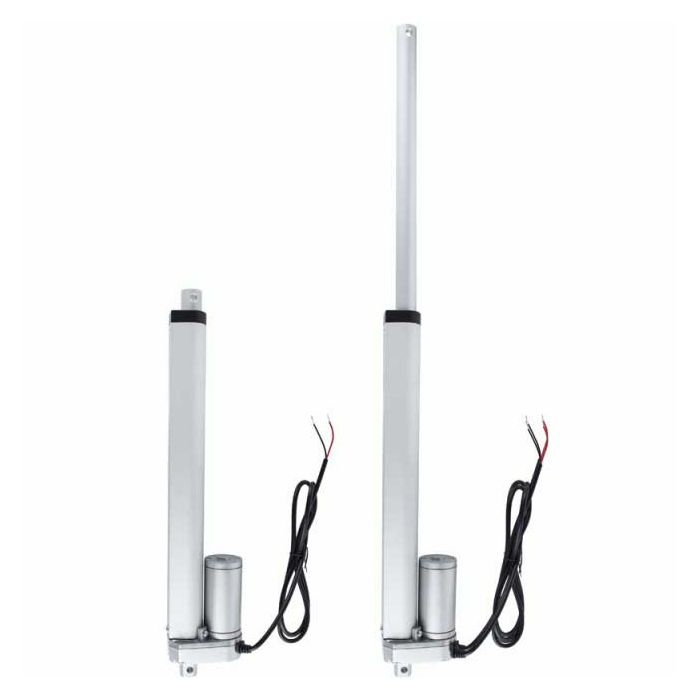

InstallBay FLIN12 12 Volt Linear Actuator with 12" stroke - 110lb Force Capacity
InstallBay FLIN12 12 Volt Linear Actuator with 12" stroke - 110lb Force Capacity
Key Features
12 Volt Linear Actuator Stroke 12" Speed: Max 10mm per second 110lb Force Capacity Low gear and motor noise Designed to push or pull a load along its full stroke length
Unit Includes: 12" Linear Actuator
InstallBay FLIN12 12 Volt Linear Actuator with 12" stroke - 110lb Force Capacity
Features:
Motorize virtually anything even with minimal space for an actuator with our Quality Mobile Video micro linear actuators
Not designed for application where there is high moisture, not IP rated
Low gear and motor noise
Corrosion resistant aluminum outer tube
Aluminum extension tube
Powder coated metal gears
Simple two wire connection, apply a DC voltage to extend the actuator, and reverse the polarity to retract it
Designed to push or pull a load along its full stroke length
Stroke: 12"
Speed: Max 10mm per second
Capacity: 110 LB Force
Voltage: 12 volts DC
Built in fixed limit switches, these are not adjustable
Anodized Aluminum housing with high-impact strength plastic end caps and motor housing
Sold individually
Dimensions:
Exdended Lenght: 17"
More Information
Manufacturer
Install Bay
Part Number
FLIN12
Warranty
1 Year
Actuator load
110 pounds
Linear actuator speed
.4 inch per second
Linear actuator stroke
12 inch
Operation Voltage
12-15 Volt DC
Waterproof ingress protection
None
UPC Code
86429089628
Return period
30 days
Exchange period
30 days
