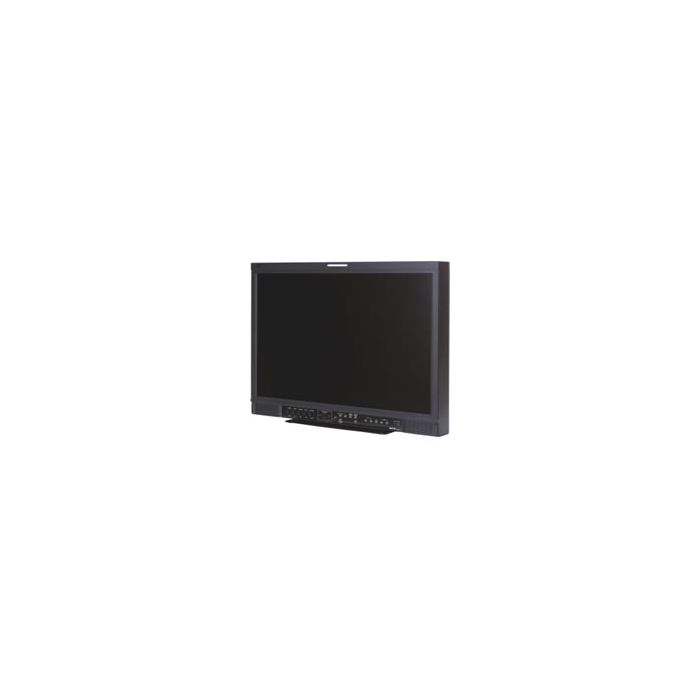

The JVC DT-R24L41DU Studio LCD monitor (24"), with a 10-bit 4:4:4 real time processor and 16.7 million colours, delivers high-quality images at a resolution of up to 1920 x 1200. It offers a contrast ratio of 1000:1, brightness of 400 cd/m², and a wide viewing angle of 178 x 178° (H x V) that allows you to view the images clearly even from room corners or when the display is mounted at a height. In addition, the monitor includes dual HD/SD SDI inputs with a switched output.
With an aspect ratio of 16:10, the DT-R24L41DU LCD monitor can automatically adapt to the input resolution of the incoming video signal. De-interlace (IP mode) circuitry converts interlaced video, such as common analog television signals or 1080i format HDTV signals, into a non-interlaced form. For IP conversion, you can choose from the Normal (frame complement and vertical filter), Field (field complement), and Cinema (for 24p) modes.
Built-in low latency circuitry ensures accurate monitoring by minimizing the time difference between the input signal and monitor image to less than 1 frame. The desired colour temperature can be set with the 3-temperature memory that comes in 9300K and 6500K modes as well as a user-specified mode. The DT-R24L41DU Studio LCD Monitor features a wide color gamut (subset of colors) and offers a chromatic range equivalent to EBU 100%. Being gamma calibrated, the DT-R24L41DU Studio LCD Monitor produces correct video images.
