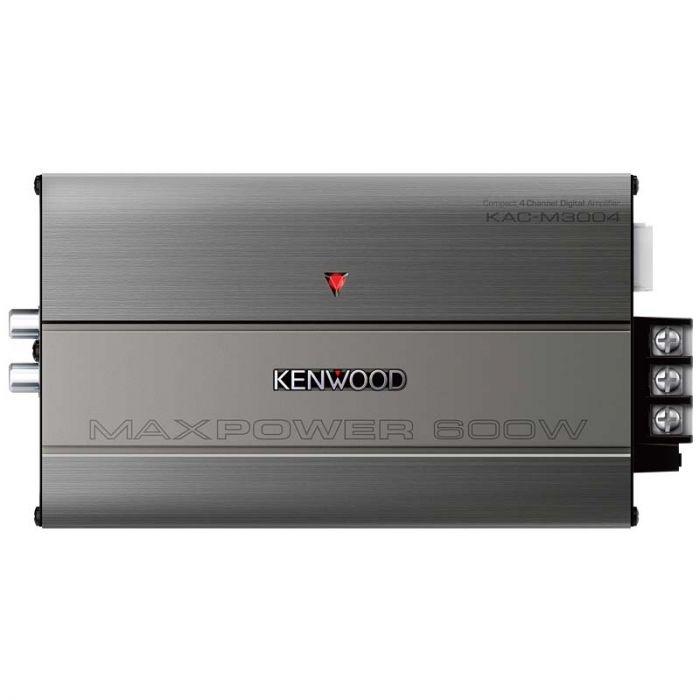

Kenwood KAC-M3004 Compact 4-Channel Class-D Marine Power Amplifier

Rating:
100% of 100
$213.99
In stock
Only 1 left
SKU
KAC-M3004

Key Features

  • Class D 4-channel marine amplifier for compact size excellent efficiency
  • Conformal coated circuit board suitable for marine applications
  • Speaker Level Input with signal sense turn-on for easy integration to factory audio systems
  • Cast Aluminum Heat Sink Design
  • 2 Ohms Load Capability
  • CEA-2006 Compliant
Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual


Kenwood KAC-M3004 Compact 4-Channel Class-D Marine Power Amplifier

    Features
  • Class D marine amplifier for compact size excellent efficiency
  • Conformal coated circuit board suitable for marine or ATV applications
  • Amplifier is ideal for motorcycles and other vehicles where conventional amplifiers will not fit
  • Extruded aluminum heat sink design
  • Speaker Level Input for easy integration to factory audio systems
  • Signal Sensing Turn-on for easy integration to factory audio systems
  • Built in Variable Low-Pass Filter Channels 1+2 and 3+4 (50Hz - 200Hz, -12dB/oct)
  • Built in Variable High-Pass Filter Channels 1+2 and 3+4 (50Hz - 200Hz, -12dB/oct)
  • Frequency Response: 20Hz - 20kHz (+0dB, -1dB)
  • Signal to Noise Ratio: 89dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable stereo) (4Ω to 8Ω allowable bridged)
  • CEA-2006 Compliant
  • Fuse ratings: 30A x 1
    Max Power Output
  • 600 Watts
    RMS Power Output
  • 50 Watts x 4 at 4 ohms
  • 75 Watts x 4 at 2 ohms
    Inputs and Outputs
  • 1 - Battery & Ground
  • 2 - RCA level inputs
  • 2 - Speaker level inputs via RCA
  • 2 - Speaker Outputs
    Dimensions
  • 140mm x 34mm x 90mm
  • 5-1/2" (W) x 1-5/16" (D) x 3-9/16" (H)
More Information
Manufacturer Kenwood
Part Number KAC-M3004
Amplifier Topology Class Class D
Number of Channels 4 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 150 mV - 11 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
CEA2006 Compliant No
UPC Code 019048210302
Return period 30 days
Exchange period 30 days
