Audiopipe APMN-4200D Class AB 100 Watts x 4-Channel Mini Amplifier
$247.99
In stock
SKU
APMN4200D
Expert Knowledge
Talk to a specialist
- Class A/ B 4-Channel Compact Amplifier
- 4-ohm / 2-ohm stable
- Bridged operation
- 100 watts x 4 channels @ 4 Ω
- 130 watts x 4 channels @ 2 Ω
- 250 watts x 2 channels bridged @ 4 Ω
- Includes Bass Control Knob

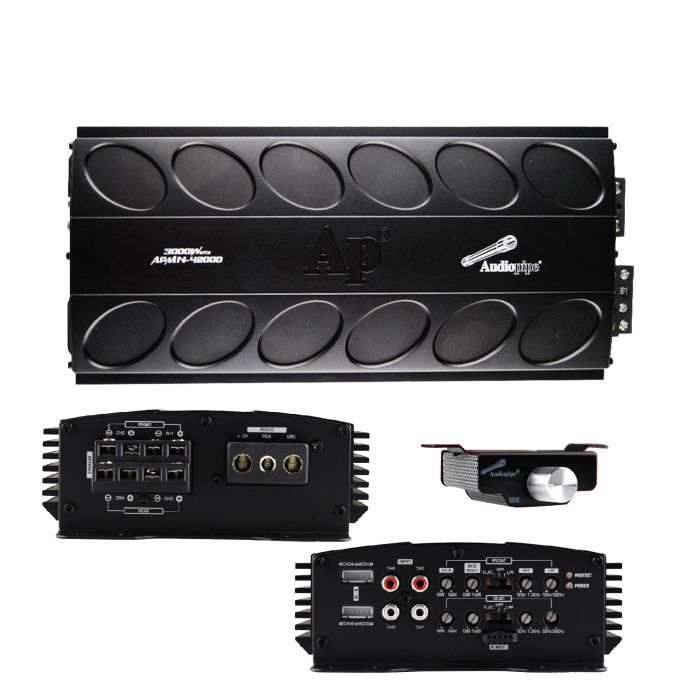

Unit includes: 4-Channel Amplifier, Installation Hardware, Bass Control Knob, and Instruction Manual
Audiopipe APMN-4200D Class AB 4-Channel Mini Amplifier
Audiopipe APMN-4200D Class AB 4-Channel Mini Amplifier
-
Features:
- Class D 4-Channel Compact Amplifier
- Amplifier will operate with 4-ohm or 2-ohm loads
- 2 / 3 /4 channel operation
- Bridged operation
- CEA-2006 Compliant Amplifier
- Remote gain control included
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- Soft start turn-on
- Fuse - 30A x 2
- Pre-Amp features:
- Frequency Response - 10Hz - 20kHz
- Signal to Noise Ratio >80dB
- Gain Adjust - 200mV - 6V
- Speaker Level Gain Adjust - 4V - 12V
- Total Harmonic Distortion - 1.0%
- Variable Low-pass Crossover Frequency - 50Hz - 200Hz
- Variable Low-pass Crossover Slope - (dB/oct): 24dB/octave
- Variable High-pass Crossover Frequency - 50Hz - 1500Hz
- Variable Bass Boost @ 40Hz (0 - 15 dB)
-
Inputs and Outputs:
- 4-channel, 3-channel, 2-channel operation
- 2 Pairs of RCA low level inputs
- Remote Bass Control Input
-
RMS Power Output:
- 100 watts x 4 channels @ 4 Ω
- 130 watts x 4 channels @ 2 Ω
- 250 watts x 2 channels bridged @ 4 Ω
- Dimensions:
- Overall Dimensions: Dimensions: 6-3/8"W x 2-1/4"H x 8-3/8"
| Manufacturer | Audiopipe |
|---|---|
| Part Number | APMN-4200D |
| Amplifier Topology Class | Class D |
| Number of Channels | 4 Channel |
| Total RMS Power at 1 ohm | 0.00 |
| Total RMS Power at 2 ohm | 460.00 |
| Total RMS Power at 4 ohm | 400.00 |
| RMS Output per Channel (x1 at 4 ohms) | 0.00 Watts |
| RMS Output per Channel (x2 at 4 ohms) | 250.00 Watts |
| RMS Output per Channel (x4 at 4 ohms) | 100.00 Watts |
| Total Peak Power Output | 500.00 (Watts) |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| RCA Pre-amp Audio outputs | None |
| Preamp voltage | 200 mV - 6 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| Overall Height | 2.13 inches |
| Overall Length | 8.38 inches |
| Overall Width | 6.38 inches |
| CEA2006 Compliant | No |
| UPC Code | 784644417980 |
| Return period | 30 days |
| Exchange period | 30 days |
