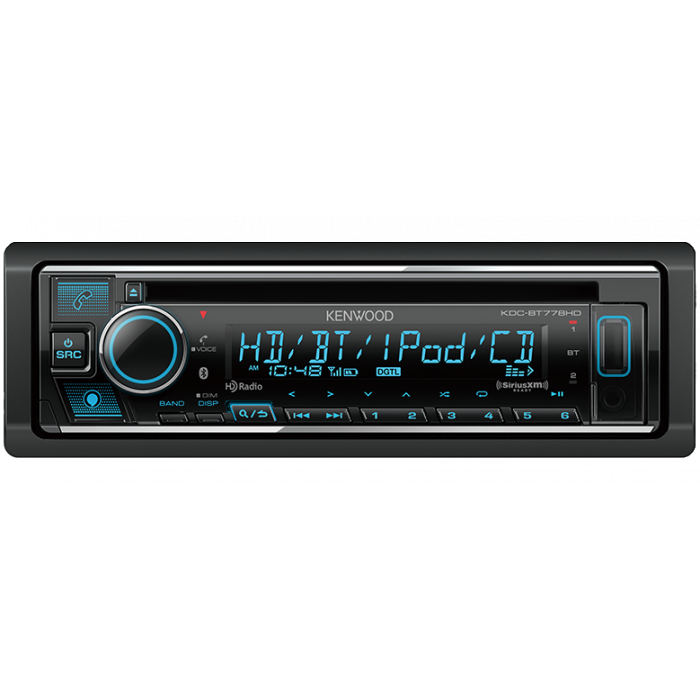

Kenwood KDC-BT778HD Single DIN Car Stereo CD Receiver with Bluetooth, HD Radio and Amazon Alexa
- Single DIN In-Dash CD Receiver
- Built in Bluetooth
- Built-In Amazon Alexa
- HD Radio
- 1.5 line LCD display with 2 zone variable-color illumination
- iPhone and Android Pandora support
- 3 sets of 5 volt RCA outputs
- 2 Phones Full-Time Connection
- Rear Dual USB and 3.5mm AUX connections
Kenwood KDC-BT778HD Single DIN Car Stereo CD Receiver with Bluetooth, HD Radio and Amazon Alexa
- Features:
- Single DIN In-Dash CD Receiver
- Built in Bluetooth with A2DP for wireless audio streaming
- Built-In Amazon Alexa
- HD Radio
- Full detachable face-plate for extra security
- Disc Slot features Anit-dust CD Door Cover
- 2-Zone Variable-Color Illumination
- 1.5 line LCD display with variable-color illumination
- Music Mix: Up to 5 Bluetooth devices can be connected to the head unit at the same
- SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
- 2 Phones Full-Time Connection
- AM/FM radio tuner
- Multi language(English, Spanish)
- Kenwood App Remote lets you control receiver settings with your smartphone
- Voice control for iPhone via Siri
- iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
- Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
- MP3, AAC, WAV, WMA & FLAC playback from USB
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- Pandora, iHeart Radio and Spotify control
- Kenwood Remote app control
- Kenwood Sound Reconstruction, restores musical to compressed music
- Audio features:
- Plays CD, CD-R, CD-RW, MP3, ACC, WAC, WMA and FLAC
- Electronic shock protection with built in buffer
- Controls: Volume, Fader, Bass, Treble, Balance
- 13-band customizable Graphic equalizer with 8 presets
- Variable subwoofer level control with selectable Low-Pass and High-Pass digital crossover filter
- Digital Time Alignment
- Volume Offset
- Sound Effects: Stage EQ, Drive EQ, Sound Realizer
- Speaker Selection
- Vehicle Selection
- Sound Reconstruction
- Loudness and Bass Boost
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
- 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
- Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- Best Station Memory (BSM)
- RDS (Radio data service) Tuner
- SiriusXM radio ready with SXV300 Sirius XM tuner
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- External microphone for optimal placement
- 2 Phones Full-Time Connection
- Music Mix: Up to 5 Bluetooth devices can be connected to the head unit at the same
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 3 - 5V pre-amp outputs (front, rear and subwoofer)
- 2 - USB rear connection, accept up to a 32Gb
- 1 - Rear 3.5mm Audio connection for connection to multiple devices
- 1 - Rear Bluetooth Microphone input
- 1 - Rear Radio Antenna Adapter
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7-3/16"W x 4-3/16"D x 2"H
Manufacturer | Kenwood |
---|---|
Part Number | KDC-BT778HD |
Chassis Size | Single DIN |
Illumination color | Full Color |
Faceplate features | Detachable face plate |
Disc Playback | CD |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | Yes |
Satellite Radio | Sirius XM Ready |
Front mounted auxiliary input | 3.5 mm audio input |
USB input | Yes |
Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 4 volts |
Steering Wheel Control | Yes, requires external module |
Built in Crossover | High-pass, Low-pass |
Warranty | 1 Year |
UPC Code | 019048228932 |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
