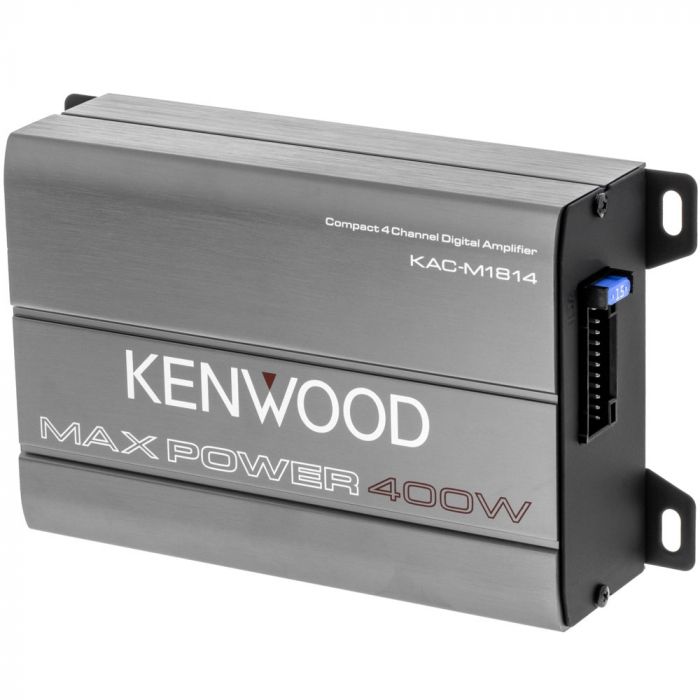

Kenwood KAC-M1814 Class-D Compact 4 Channel Class-D Marine Power Amplifier
$149.99
Out of stock
SKU
KAC-M1814
Expert Knowledge
Talk to a specialist
- Class D 4-channel marine amplifier for compact size excellent efficiency
- Conformal coated circuit board suitable for marine applications
- Speaker Level Input with signal sense turn-on for easy integration to factory audio systems
- Cast Aluminum Heat Sink Design
- 45 Watts x 4 at 4 ohms
- 4 Ohms and 2 Ohms Load Capability
- CEA-2006 Compliant
Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual
Kenwood KAC-M1814 Class-D Compact 4 Channel Class-D Marine Power Amplifier
- Features
- Class D marine amplifier for compact size excellent efficiency
- Conformal coated circuit board suitable for marine or ATV applications
- Amplifier is ideal for motorcycles and other vehicles where conventional amplifiers will not fit
- Extruded aluminum heat sink design
- Speaker Level Input for easy integration to factory audio systems
- Signal Sensing Turn-on for easy integration to factory audio systems
- Frequency Response: 50Hz-200Hz, -12dB/oct (A/B)
- Signal to Noise Ratio: 98dB
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (4Ω to 8Ω allowable)
- CEA-2006 Compliant
- Variable Low-pass electronic crossover (50 - 200 Hz)
- Variable High-pass electronic crossover (50 - 200 Hz)
- Pre-Amp features:
- Max Power Output
- 400 Watts
- RMS Power Output
- 45 Watts x 4 at 4 ohms
- 45 Watts x 4 at 2 ohms
- 90 Watts x 2 bridged at 4 ohms
- Inputs and Outputs
- 1 - Harness inputs
- 2 - Pairs of RCA Audio Inputs
- Dimensions
- 140mm x 34mm x 90mm
- 5-11/16" (W) x 1-3/4" (D) x 3-7/8" (H)
| Manufacturer | Kenwood |
|---|---|
| Part Number | KAC-M1814 |
| Amplifier Topology Class | Class D |
| Number of Channels | 4 Channel |
| Total RMS Power at 2 ohm | 45.00 |
| Total RMS Power at 4 ohm | 45.00 |
| RMS Output per Channel (x1 at 4 ohms) | 25.00 Watts |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Silver |
| Warranty | 1 Year |
| Overall Height | 1.00 inches |
| Overall Length | 5.00 inches |
| Overall Width | 3.00 inches |
| CEA2006 Compliant | No |
| UPC Code | 019048226358 |
| Return period | 30 days |
| Exchange period | 30 days |
Write Your Own Review
Customer Questions
Car amplifier installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Amplifier Installation basics
Let's start with the basics of adding or installing a car amplifier. First you will need to plan your installation and power wiring, this usually is the most difficult part of the installation for most.
How to choose the proper wire size explained
What size power wire do I need for my amplifier? Well, that depends on the length of the wire and the power consumption of the amplifier. We walk you through how to choose the right gauge wire and wire material depending on your amplifier installation requirements.
How to wire speakers and subwoofers to your new amplifier
In our third video we demonstrate the various ways you can wire speakers and amplifiers to all types of amplifiers. There different ways to do this depending on the type of amplifier you choose to purchase.
What is gain? How do I set it properly?
In our fourth video we demonstrate how to set the gains on your amplifier to prevent damage to your speakers, subwoofers and even possibly your new amplifier. Using a portable oscilloscope we show you how to set your gains.
