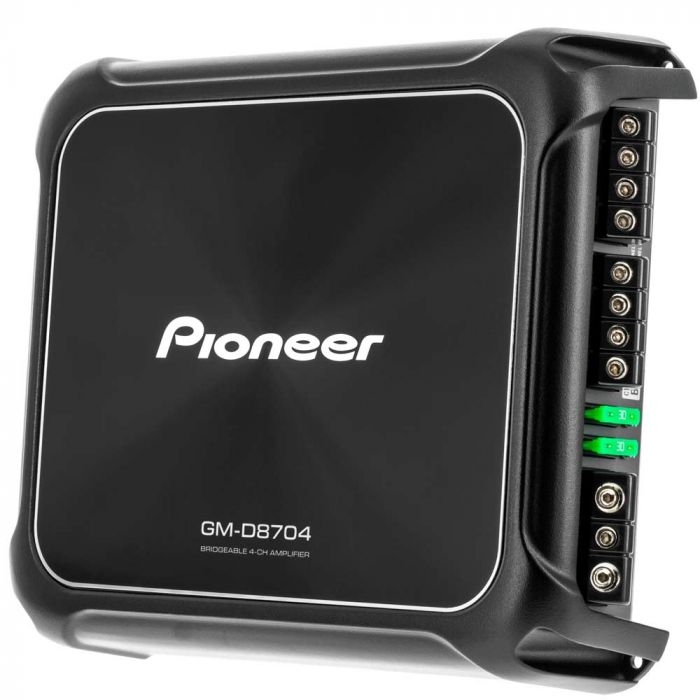

Pioneer GM-D8704 1,200 Watt Class FD 4-Channel Car Amplifier

$181.99
Out of stock
SKU
GMD8704

Key Features

  • GM-D Series 1,200 Watt RMS 4-Channel Class FD Car Amplifier
  • Class FD Design Offers Efficiency and High-Quality Sound
  • Continuous Power Output (1 Ω, ≤ 1% THD+N): 125 W x 4
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 150 W x 4
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 100 W x 4
  • Bridged Power Output (4 Ω, ≤ 1% THD+N): 300 W x 2
Unit includes: Power amplifier, Bass knob, Speaker level adapter and Instruction manual


Pioneer GM-D8704 1,200 Watt Class FD 4-Channel Amplifier
    Features:
  • GM-D Series 1,200 Watt RMS 4-Channel Class FD Car Amplifier
  • Preamp RCA outputs to connect multiple amps
  • MOSFET power supply for large power output
  • LED power (green) and protect (red) indicators
  • Variable Low-pass electronic crossover (40-500 Hz, 12 dB/octave)
  • Variable High-pass electronic crossover (40-500 Hz, 12 dB/octave)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated screw terminals
  • 4/3/2 channel operation
  • CEA-2006 compliant amplifier
  • 4-gauge power and ground leads and a 60-amp fuse recommended
  • Frequency Response: 10Hz to 50,000 Hz
  • Signal to noise ratio: >95dB
  • Total Harmonic Distortion (THD): <0.05% (1 kHz)
  • Variable bass boost: 0 dB - 18 dB (50 Hz)
    Inputs and Outputs:
  • Four-channel operation
  • Nickel-plated RCA level inputs and outputs
  • Input Sensitivity Low level: 200mV-6.5V
    Max Power Output:
  • Total Power Output: 1,200 Watts
    RMS Power Output:
  • Continuous Power Output (1 Ω, ≤ 1% THD+N): 125 W x 4
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 150 W x 4
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 100 W x 4
    RMS Power Bridged Output:
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 300 W x 2
    Built in Crossover:
  • Low Pass: 40Hz - 500Hz @ 12dB/octave
  • High Pass: 40Hz - 500Hz @ 12dB/octave
    Dimensions:
  • Overall Dimensions: 2-3/8" (H) x 10-3/8" (L) x7-7/8" (W)
More Information
Manufacturer Pioneer
Part Number GM-D8704
Amplifier Topology Class Class FD
Number of Channels 4 Channel
Total RMS Power at 1 ohm 125.00
Total RMS Power at 2 ohm 150.00
Total RMS Power at 4 ohm 100.00
Total Peak Power Output 1,200.00 (Watts)
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 200 mV - 6 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 884938421928
Return period 30 days
Exchange period 30 days
