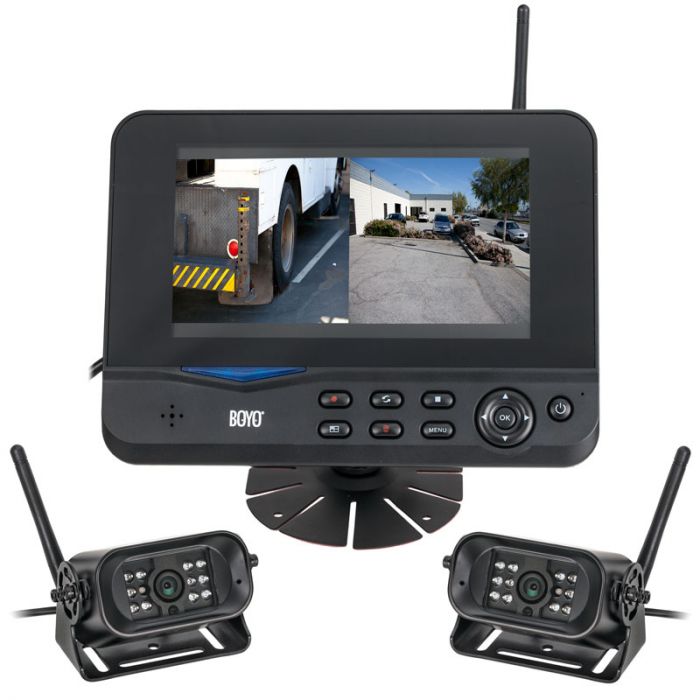

Boyo VTC700RQ-2 Dual Camera Digital Wireless Backup Camera System with DVR

Unit includes: 7 inch LCD monitor with wireless receiver, (2) Back Up Cameras with Wireless Transmitter, Monitor hard wire cable, Cigarette lighter power cable, Audio video input cable, (3) Antennas, Suction cup mount, Fan mount, Mounting and Electrical hardware, and Instruction manual

Boyo VTC700RQ-2 Dual camera Digital Wireless Back up Camera System

Overview:

• 7 inch LCD monitor with wireless receiver
• Dual camera system is perfect for trailers and tow vehicles, you can have one camera pointing at hitch and the other on the trailer
• 2.4 Ghz digital transmission, cameras require pairing and are not subject to interference and signal hijacking
• Built in DVR with 4 channel record capability
• (2) Night vision CCD camera/w wireless transmitter
• Ideal for trucks and trailers where wired connections are not possible
• 200 foot line of sight range
• Monitor can be temporarily mounted using included suction cup
• Monitor can be permanently mounted using included fan mount
• Monitor can be temporarily powered using included cigarette lighter cord
• Monitor can be permanently powered using included hard wire cord
• 1 Side mounted video output

Wireless Digital Monitor
• 7 inch TFT LCD High Resolution
• PAL/NTSC auto switching
• Accepts up to four cameras
• Resolution: 800 x 480 x RGB
• Power Supply: DC 10-32 Vdc
• Power consumption: 650mA
• 4-Way Image rotation for regular view, Upside down view, Mirror image, and Upside down mirror image
• PIP (Picture-in-Picture) multiple screen modes for camera viewing. Quad screen, Tri-view, and camera select
• OSD Menu (On Screen Display)
• On Screen Display for Contrast, Color and Brightness
• Built in 4-channel DVR
Monitor Dimensions:
• With Antenna extended vertically: 9-3/4 (H) x 9-1/2" (W) x 1-3/8" (D)
• Without Antenna: 6-1/4 (W) x 8-3/8" (H) x 1-3/8 (D)

Wireless Digital Camera

• High Resolution Back Up Camera
• 1/4" CMOS Image Sensor
• Resolution: 640 x 480
• 85 degrees Wide Angle Camera - Blind Spot reduced
• IR Infrared 11 LEDs for Night Vision 16 ft distance
• Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
• Power Supply: DC 12V - 24V
• Waterproof Rating: IP66
• Shell Material Aluminium Alloy
Camera Dimensions
• Without Antenna: 4-1/4" (W) x 2-1/2 (H) x 3-1/4 (D)
• With Antenna: 4-1/4" (W) x 5-1/2" (H) x 3-1/4" (D)

Inputs and Outputs:
• 1 - 9-32 VDC power inputs
• 1 - Rear camera trigger
• 1 - Camera 2 trigger
• 1 - Camera 3 trigger
• 1 - Camera 4 trigger

Note: this system is not designed to be used while in motion at highway speeds, due to signal limitations this system will not function properly at speeds in excess of 20 MPH.
