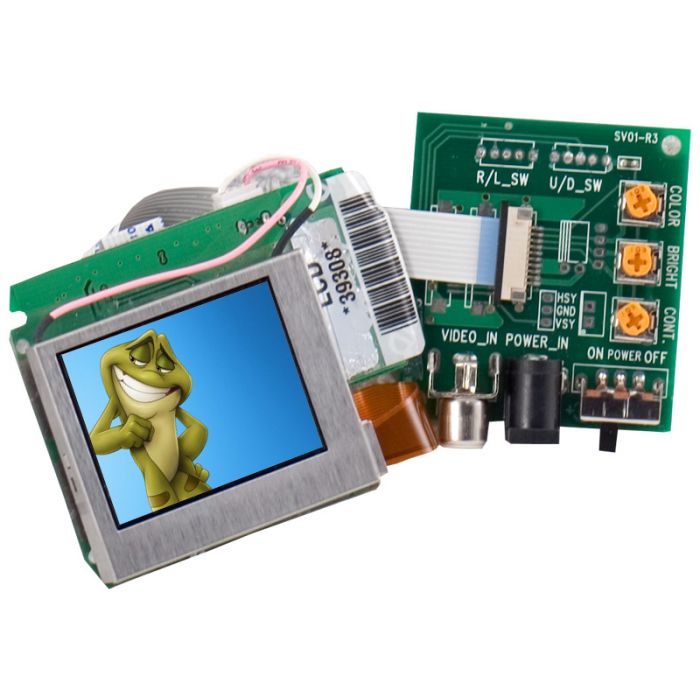

Accelevision LCD18L 1.8 Inch LCD Monitor Raw Module
More Views
Accelevision
Free Shipping on orders $99+
Accelevision LCD18L Product Highlights
- 1.8" TFT LCD Flip/Miror Image
- Brightness: 150 NIT
- Resolution: 280x220
- Power Source: 12VDC@70mA
Overview
Unit includes: LCD Module
Accelevision LCD18L 1.8 Inch LCD Monitor Raw Module
Accelevision LCD18L 1.8 Inch LCD Monitor Raw Module
- Screen Size: 1.8" TFT LCD Flip/Miror Image
- Brightness: 150 NIT
- Input Signal: NTSC/PAL
- Power Source: 12VDC@70mA
- Resolution: 280x220
- Panel & Driver Dimensions (H/W/D): 1 7/8" x 1 7/8" x 1/2"
- Viewing Angle (R/L/T/B): 45/45/10/30
- Control Board Dimensions: 1 3/4" x 2" x 1/2"
Technical Specifications
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD18L |
| LCD Screen Size | 1 inch - 2 inch |
| Native Screen Resolution | 280x220 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Swivel Screen | No |
| Touchscreen | No |
| NTSC/PAL | NTSC and PAL |
| Built-in DVD Player | No |
| Dual DVD capable | No |
| Last Position Memory | No |
| Anti-Shock | No |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in FM Modulator | No |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 1 Video Input |
| Audio Video Outputs | No |
| Composite video input | Yes |
| Front mounted auxiliary input | No |
| USB input | No |
| SD Card input | No |
| Phone Mirroring | N/A |
| Housing material | Metal |
| Slide track on back | No |
| Mounting thread for stand mount | No |
| Stand Mount included | No |
| Trigger wire | No |
| Image Flip Function | No |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | No |
| Ac Adapter included | No |
| Headrest Shroud included | No |
| Headrest Type | No |
| Zipper security cover | No |
| Built in Game System | No |
| Wireless Remote Control | No |
| Monitor Color | Grey |
| Color | Black |
| Overall Height | 0 Inches |
| Overall Length | 0 Inches |
| Overall Width | 0 Inches |
| Warranty | 1 Year |
| UPC Code | No |
