Accelevision LCD35QVGATS 3.5" LCD module with VGA input and USB touchscreen
Accelevision LCD35QVGATS 3.5" LCD module with VGA input and USB touchscreen
Key Features
3.5 inch universal raw LCD module for use in any custom application VGA input for use with computers or chart plotters or any other high resolution device USB Touchscreen with drivers for Mac and PC operating systems Composite RCA video input
Unit includes: 3 inch raw module and Wiring Harness

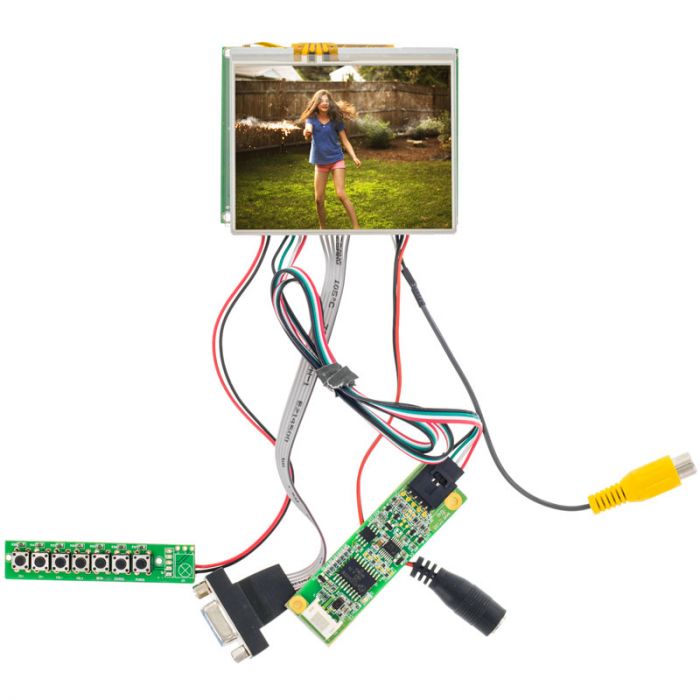

Accelevision LCD35QVGATS 3.5" LCD module with VGA input
Features:
3.5 inch universal raw LCD module for use in any custom application
VGA input for use with computers or chart plotters or any other high resolution device
USB Touchscreen with drivers for Mac and PC operating systems
Composite RCA video input
LED back lite for minimal power consumption and uniform back light intensity
Board can be mounted to one side for thinner profile
Operates on 10 - 12 volts DC
NTSC/PAL auto switching
On screen menu with adjustments for color, brightness, tint, hue, etc
Small control board with buttons for power, menu, and OSD controls
Resolution: 320 (H) x 240 (V)
Power Source: DC 12V @ 275mA
Brightness: 350 NIT
Dimensions: 2-1/8" (H) x 2-13/16" (W) x 9/16" (D)
Inputs and outputs
1 - RCA Composite video input
1 - VGA input
1 - DC power jack
More Information
Manufacturer
Accelevision
Part Number
LCD35QVGATS
LCD Screen Size
3 inch - 4 inch
Native Screen Resolution
320 x 240
Widescreen Display
4:3 Normal Aspect Ratio
LCD back light type
LED
LCD Screen Brightness
350 Nit
Touchscreen
Yes
Modulation
NTSC and PAL
Built in Speakers
No
HDMI input
No
VGA input
Yes - VGA input
Audio Video inputs
1 Video Input
Composite video input
Yes
USB input
No
SD Card input
No
Trigger wire
No
Image Flip Function
No
Operation Voltage
12-15 Volt DC
Ac Adapter included
No
Wireless Remote Control
No
Warranty
1 Year
California Proposition 65
Warning: This product can expose you to
chemicals including lead, which is [are] known to
the State of California to cause cancer or birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
Return period
30 days
Exchange period
30 days
