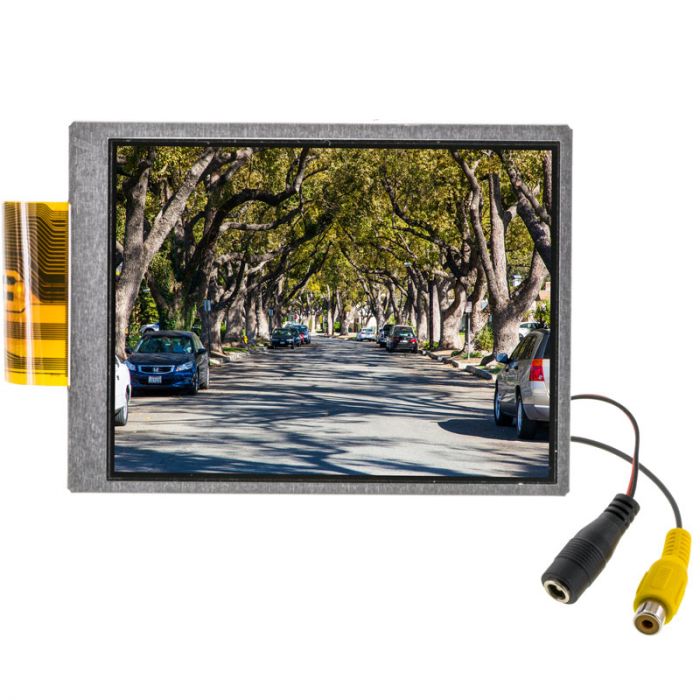

Accelevision LCD3L 3" LCD module with LED back-lite
$106.99
In stock
SKU
LCD3L
Expert Knowledge
Talk to a specialist
- 3 inch universal raw LCD module for use in any custom application
- LED back lite for minimal power consumption and uniform back light intensity
- Single RCA Composite video input
- Operates on 9 - 12 volts DC
Unit includes: 3 inch raw module and Wiring Harness
Accelevision LCD3L 3" LCD module with LED back-lite
Accelevision LCD3L 3" LCD module with LED back-lite
- Features:
- 3 inch universal raw LCD module for use in any custom application
- LED back lite for minimal power consumption and uniform back light intensity
- Board can be mounted to one side for thinner profile
- Operates on 9 - 12 volts DC
- NTSC/PAL auto switching
- Turns on when power is applied, no power switch
- Single RCA Composite video input
- DC power jack
- Resolution: 480 (H) x 234 (V)
- Power Source: DC 12V @ 275mA
- Brightness: 350 NIT
- Dimensions: 2-1/8" (H) x 2-13/16" (W) x 9/16" (D)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD3L |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 480 x 234 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD back light type | LED |
| LCD Screen Brightness | 350 Nit |
| Modulation | NTSC and PAL |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 1 Video Input |
| Composite video input | Yes |
| USB input | No |
| SD Card input | No |
| Trigger wire | No |
| Image Flip Function | No |
| Operation Voltage | 8-15 Volt DC |
| Ac Adapter included | No |
| Warranty | 1 Year |
| California Proposition 65 | |
| Return period | 30 days |
| Exchange period | 30 days |
