Accelevision LCDM102W 10.2 inch Wide screen metal housed LCD monitor - Composite video input
Accelevision LCDM102W 10.2 inch Wide screen metal housed LCD monitor - Composite video input
Key Features
10.2 Widescreen metal housed monitor for custom applications 2-RCA Inputs Rugged Metal Housing 16:9 Widescreen
Unit includes: 10.2 inch Raw module, Remote control, DC power jack and Wiring Harness

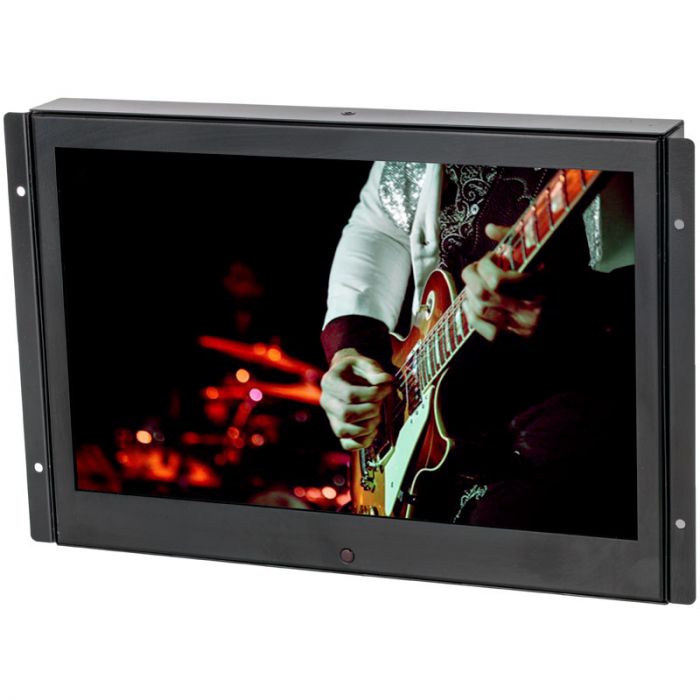

Accelevision LCDM102W 10.2 inch Wide screen metal housed LCD monitor
Features:
10.2 Widescreen metal housed monitor for custom applications
16:9 Widescreen
Rugged metal housed monitor
Operates on 12 volts
NTSC/PAL
Menu control buttons for on screen display and power control
Front mounting flange is removable for pedestal and wall mounting
VESA 75 mounting holes for easy wall mounting with standard mounts
Resolution: 800 (H) x 600 (V)
Power Source: DC 12V @ 900mA
Push button power switch
Brightness: 300 NIT
Inputs and Outputss:
2 - RCA video inputs
1 - 12 volt power input
Dimensions:
With Flanges: 6-3/4″ (H) x 10-3/4″ (W) x 1″ (D)
Without Flanges: 6-3/4″ (H) x 9-1/2″ (W) x 1″ (D)
Viewable screen area: 5-1/4″ (H) x 8-3/4″ (W)
More Information
Manufacturer
Accelevision
Part Number
LCDM102W
LCD Screen Size
9 inch - 10 inch
Native Screen Resolution
800 x 600
Widescreen Display
16:9 Widescreen Display
LCD back light type
LED
LCD Screen Brightness
300 Nit
Touchscreen
No
Modulation
NTSC and PAL
Headphone Transmitter
No
Headphone Jack
No
Built in FM Modulator
No
Built in Speakers
No
HDMI input
No
VGA input
No - VGA input
Audio Video inputs
2 Video Inputs
Audio Video Outputs
None
Composite video input
Yes
Front mounted auxiliary input
None
USB input
No
SD Card input
No
Built in Phone Mirroring
No
Housing material
Metal
Slide track on back
No
Mounting thread for stand mount
Yes
Mount included
No
Trigger wire
No
Image Flip Function
No
Quad Screen
No
Cigarette Lighter Cord Included
No
Operation Voltage
12-15 Volt DC
Ac Adapter included
No
Wireless Remote Control
Yes
Monitor Color
Grey
Color
Grey
Overall Height
$6.75
Overall Length
$1.00
Overall Width
$10.75
Warranty
1 Year
Return period
30 days
Exchange period
30 days
