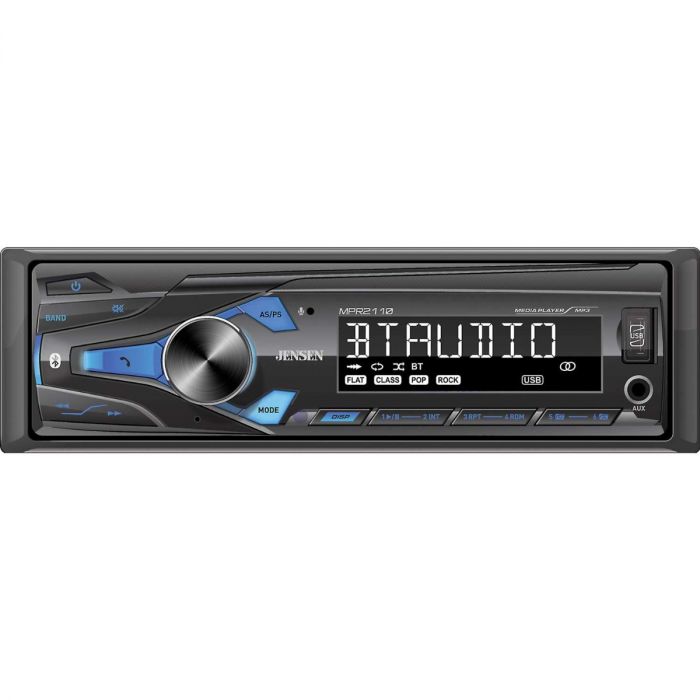

Jensen MPR2110 Single DIN Digital Media Receiver with Bluetooth
- Single DIN In-Dash Digital Media receiver
- 7-character high-definition LCD display
- Blue Button, White LCD Illumination
- Front USB connection
- Front 3.5 mm audio input
- Built in Bluetooth with A2DP for wireless audio streaming
Jensen MPR2110 Single DIN Digital Media Receiver with Bluetooth
- Features:
- Single DIN In-Dash Digital Media receiver
- 7-character high-definition LCD display
- Blue Button, White LCD Illumination
- Front USB connection
- Front 3.5 mm audio input
- Built in Bluetooth with A2DP for wireless audio streaming
- AM/FM radio tuner
- Power Output: 4 channels x 50 watts peak and 4 channels x 16 watts RMS
- MP3, AAC, WAV, WMA & FLAC playback from USB
-
Audio features:
- Plays MP3 files
- Controls: Volume, Fader, Bass, Treble, Balance
- 4 preset EQ curves
-
Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
-
Inputs and outputs:
- 2 - 2V preamp outputs (front, rear or subwoofer)
- 1 - USB front connection accepts up to a 32Gb
- 1 - Front 3.5mm Audio connection for connection to multiple devices
- Dimensions:
- Single DIN chassis
- Dimensions: 7-3/16"W x 3-3/4"D x 2-1/8"H
Manufacturer | Jensen |
---|---|
Part Number | MPR2110 |
Chassis Size | Single DIN |
Illumination color | Blue |
2-Zone Color Illumination | Yes, Single-Color |
Faceplate features | None |
Disc Playback | No |
Anti-Shock | No |
Amazon Alexa | No |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | No |
Radio Data Service - RDS | No |
Satellite Radio | No |
Front mounted auxiliary input | 3.5 mm audio input |
Audio Video inputs | 1 Audio Input |
Audio Video Outputs | None |
USB input | Yes |
SD Card input | No |
Audio Formats | Mpeg-3 |
Time Alignment | No |
RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear) |
Preamp voltage | 2 volts |
Steering Wheel Control | No |
Built in Crossover | None |
Wireless Remote Control | Yes |
Warranty | 1 Year |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
