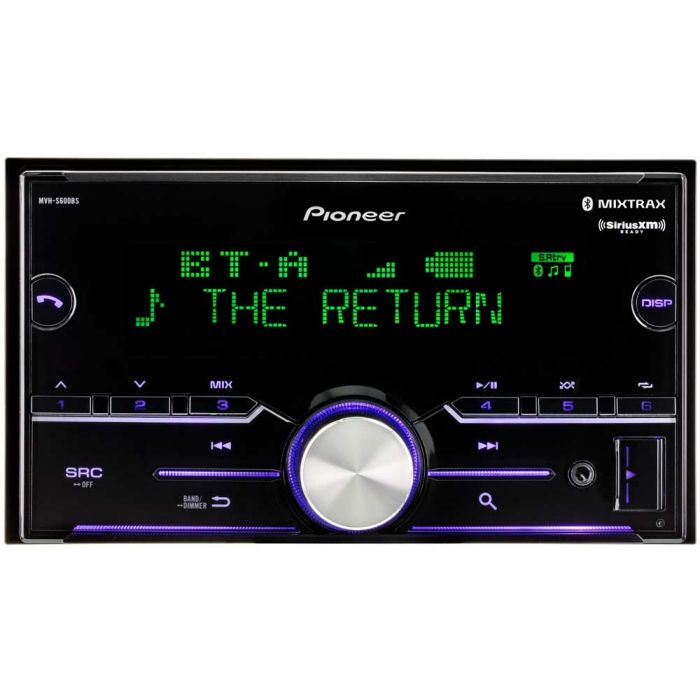

Pioneer MVH-S600BS Double-DIN In-Dash Digital Media Receiver with Bluetooth, SiriusXM Ready & 3 Pairs of High-Volt RCA Preamp Outputs

Description

Unit includes: Double DIN radio, Remote control, Wiring harness, Mounting hardware, External microphone, and Instruction manual

Features:

AM/FM Digital Multimedia Double DIN In-Dash car stereo receiver
Completely mech-less and does not contain a disc player, meant for digital media playback
Short chassis
Variable Color Illumination and 2 zone control
Built in Bluetooth with HFP, A2DP, AVRCP, SSP, for wireless audio streaming and wireless phone operation
Compatible with Pioneer ARC App for advanced music control
Siri Eyes Free voice control for iPhone, tell your car stereo who to call or what station to listen to
Compatible with Pioneer ARC App for advanced music control
Android Music Support: MTP and AOA 2.0
Multilanguage support
Dual Bluetooth connectivity
1.5A USB quick charge
Steering remote input
iPod with USB, simply connect your iPhone or iPod touch and access your entire music library
Pandora support with USB, simply connect your Phone or iPod and stream Pandora (Android and iOS)
Spotify support with USB, simply connect your Phone or iPod and stream Pandora
Power Output:4 channels x 50 watts peak, 4 channels x 17 watts RMS
MP3, WAV, AAC, WMA and FLAC playback from USB
Enjoy Your Favorite Music in a Non-Stop Mix with MIXTRAX
Enhanced Bluetooth® enabled phone connectivity with Pioneer ARC Bluetooth Hub

Digital Media Playback features:

Plays MP3, WAV, AAC, WMA and FLAC files
MP3 ID3 tag information, display artist and song information
Electronic shock protection with built in buffer
Music text information, display artist and song information
Includes Supertuner IIID AM & FM tuner with 24 station 6 presets memory

Audio features:

Controls: Volume, Fader, Bass, Treble, Balance
13-band Graphic equalizer with preset and custom options
Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
High-Pass filter with variable slopes and crossover frequencies
Low-Pass filter with variable slopes and crossover frequencies
Digital Time Alignment
3 Mode Loudness control
Advanced Sound Retriever
Listening Position Select

Tuner features:

Includes Supertuner IIID AM & FM tuner with 18 preset stations memory
Best station memory
Local seek
RDS (Radio data service) Tuner
SiriusXM radio ready with SXV300 Sirius XM tuner
SiriusXM radio replay, replay up to the last 60 minutes of your current channel
SiriusXM radio SmartFavorites - automatically buffers the broadcast audio content of SmartFavorites channels in the background so you can rewind or replay any missed content

Bluetooth features:

Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
HFP 1.6 : Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
SPP: Serial Port Profile
SSP - Secure Simple pairing
Guest mode
Dual phone connection supported
External microphone with 10 foot cord for optimal placement
Bluetooth 2.0+ certified

Inputs and outputs:

3 - 4V preamp outputs (front, rear and subwoofer)
1 - Front USB connection
1 - Radio Antenna
1 - SiriusXM radio tuner input
1 - Front 3.5mm Audio connection for connection to multiple devices
1 - Steering wheel control input requires ASWC steering wheel interface

Dimensions:

Singel DIN chassis
Dimensions: 7"W x 4-1/8"D x 3-15/16"H

Specifications

More Information
Manufacturer	Pioneer
Part Number	MVH-S600BS
Chassis Size	Double DIN
Illumination color	Full Color
Faceplate features	None
Disc Playback	No
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	No
Satellite Radio	Sirius XM Ready
Front mounted auxiliary input	3.5 mm audio input
Audio Video inputs	1 Audio Input
USB input	Yes
SD Card input	No
Audio Formats	AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs	3 Pairs (Front, Rear, Sub)
Preamp voltage	4 volts
Steering Wheel Control	Yes, requires external module
Built in Crossover	High-pass, Low-pass
Wireless Remote Control	Yes
Warranty	1 Year
UPC Code	884938369329
Return period	30 days
Exchange period	30 days
