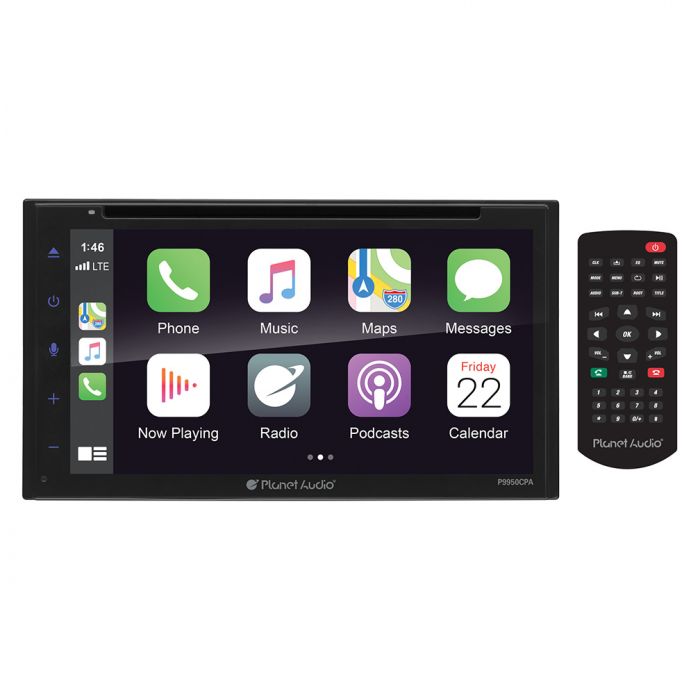

Planet Audio P9950CPA 6.75" Double DIN Car Stereo Receiver with Apple Carplay and Android Auto
Expert Knowledge
Talk to a specialist
- Full-color 6.75" Widescreen with Capacitive Touchscreen Display
- Built in Bluetooth for phone calls and audio streaming
- Apple Carplay and Android Auto compatible
- Navigation via Apple Maps, Google Maps or Waze
- Built in AM/FM radio tuner
- Dual Rear USB Ports
- Steering wheel control compatible
Planet Audio P9950CPA 6.75" Double DIN Car Stereo Receiver with Apple Carplay and Android Auto
- Features
- Full-color 6.75" Widescreen with Capacitive Touchscreen Display
- Supports Apple Carplay and Android Auto
- Apple Carplay and Android Auto make it easier than ever to use your smartphone's helpful features on the road
- Siri Hands-Free Compatible
- Google Assistant Hands-Free Compatible
- High power 4-channel amplifier: 4 channels x 80 watts
- Built in Bluetooth with A2DP, AVRCP, HFP, PBAP for wireless audio streaming and wireless phone operation
- Camera input for reverse camera
- Adjustable parking grid lines
- LCD screen Resolution: 800 x 480 Pixels
- Dimmer and brightness control
- 5 Color Selectable Touch Key Illumination
- Steering wheel control input
- No Disc Slot
- Audio Features
- 13-band parametric equalizer with 8 preset and custom options (Off / Custom / Jazz / Hip-Hop / Pop / Rock / R&B)
- Manual EQ with 32 Hz / 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz ±7dB Adjustments
- High-Pass filter with variable crossover frequencies
- Subwoofer Time alignment: 0 - 18 ms
- Low-Pass filter with variable crossover frequencies (Adjustable from off / 50 Hz / 80 Hz / 120 Hz / 160 Hz) at 12dB per octave
- Variable subwoofer level control (+14dB to 0dB)
- Subwoofer phase control 0° - 180°
- Loudness control
- Media Playback
- USB Thumb Drive up to 32GB
- Compatible audio codecs: WAV and MP3
- Compatible video codecs: AVI, MKV, and WMV
- Compatible picture codecs: JPEG, PNG and BMP
- ID3 tag information, display artist and song information
- Supports up 32 GB flash drives
- Tuner features:
- Includes Radio AM & FM tuner with 10 FM / 10 AM preset stations memory
- RDSB (Radio data service) Tuner
- RDS Tuner
- Inputs and Outputs
- 3 - 4V preamp outputs for (Front, Rear and Subwoofer)
- 1 - Rear Input for Rear Camera
- 1 - Set of Rear Audio/Video Inputs
- 2 - Rear USB input (Apple Carplay and Android Auto or for USB drives)
- 1 - Bluetooth Microphone
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Apple Car Play features:
- Navigation via Apple Maps, Google Maps or Waze
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Siri Assistant
- Place and receive hands-free text messages using Siri Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Android Auto features:
- Wireless Bluetooth connection or wired with USB
- Navigation via Google Maps and Waze
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Google Assistant
- Place and receive hands-free text messages using Google Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Bluetooth
- Integral Bluetooth 4.0 technology facilitates convenient hands-free phone calls and audio streaming
- A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP 1.0: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 4.0 certified
- Siri Eyes Free voice support
- Dimensions:
- Chassis Dimensions: 7"W x 3-7/8"D x 3-15/16"H
- Display Dimensions (W X H): 6.36 x 3.94in
| Manufacturer | Planet Audio |
|---|---|
| Part Number | P9950CPA |
| Illumination color | Full Color |
| Touchscreen | Yes |
| Native Screen Resolution | 800 x 480 |
| Camera Inputs | 1-Camera Input |
| NFC (Near Field Communication) | No |
| CEA2006 Compliant | No |
| Return period | 30 days |
| Exchange period | 30 days |
